Splunk v1.6.1

About the connector

Splunk is a SIEM software that allows searching, monitoring and analyzing machine-generated big data, using a web-style interface. For more information, see the Splunk website.

This document provides information about the Splunk connector, which facilitates automated interactions, with a Splunk server using FortiSOAR™ playbooks. Add the Splunk connector as a step in FortiSOAR™ playbooks and perform automated operations, such as retrieving details and events for a Splunk alert, and running a search query on the Splunk server.

You can also automatically forward events and alerts from Splunk to FortiSOAR™ using the Fortinet FortiSOAR Add-on. For more information, see the Fortinet FortiSOAR Add-on section.

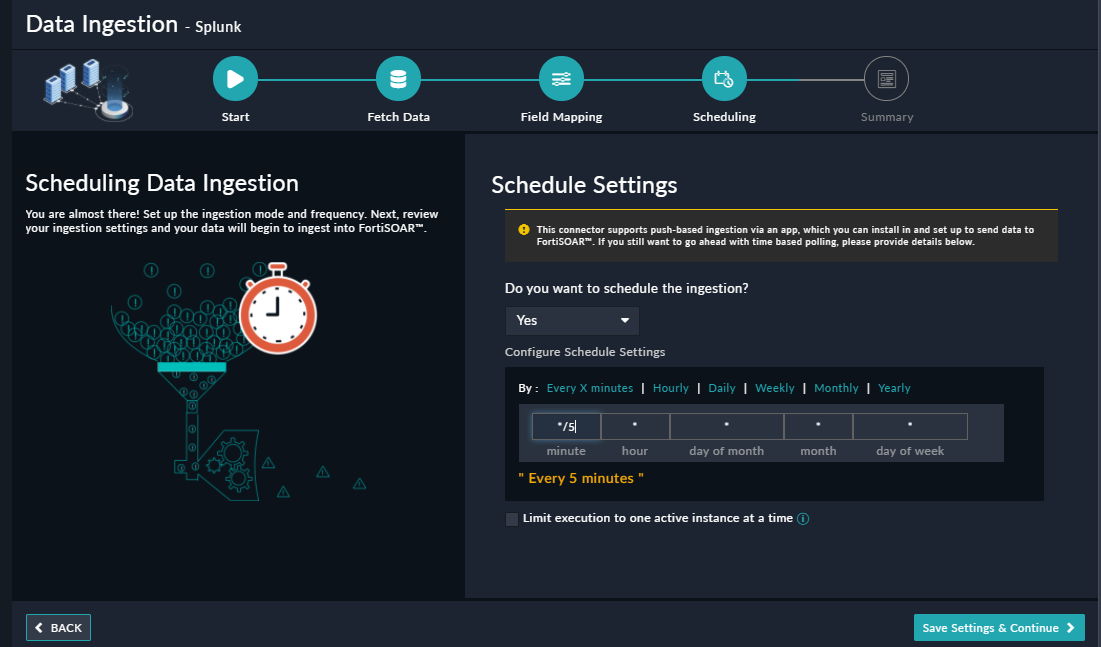

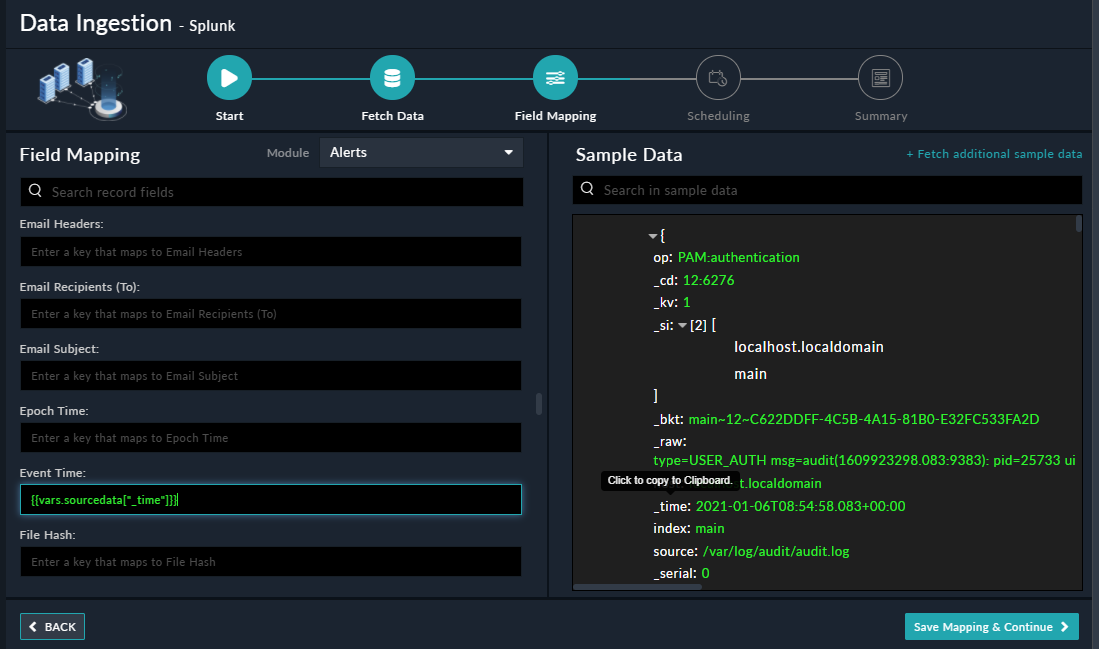

You can use FortiSOAR™'s Data Ingestion Wizard to easily ingest data into FortiSOAR™ by pulling events from Splunk. For more information, see the Data Ingestion Support section.

Version information

Connector Version: 1.6.1

FortiSOAR™ Version Tested on: 6.4.4-3164

Splunk Version Tested on: Splunk Enterprise 7.3.8, 8.0.7

Authored By: Fortinet

Certified: Yes

Release Notes for version 1.6.1

Following enhancements have been made to the Splunk Connector in version 1.6.1:

Added support for Splunk Version 8.0.x.
Replaced "CyberSponse" with "FortiSOAR" in playbook names.
Renamed connector action name from “Sync Splunk Users to CyOPs” to “Sync Splunk Users to FortiSOAR”.

Splunk 8.0 support

Users need to consider the following key points for the Splunk upgrade:

Users on Splunk 8.0.x and installing the connector and/or the add-on for the first time should take a minimum of connector version 1.6.0, and add-on version of 2.6.0.
Users who have already configured ingesting Splunk data into FortiSOAR and are upgrading to Splunk 8, must do the following:
- Users who are using the CyberSponse add-on on Splunk to forward data, need to install the new FortiSOAR Add-on and remove/deactivate the CyberSponse add-on.
- Users must update the data ingestion playbooks to remove the use of _bkt key as this key is now not present, by default, in Splunk events. Users need to update the following playbook steps in version 1.6.0 of the connector (Refer to the latest Sample - Splunk - 1.6.1 collection for the playbook update):
- In the Splunk > Inbound Alert playbook, update the “Calculate Event ID” step with the following 'when' condition:
  '_time' in vars.sourcedata and '_raw' in vars.sourcedata and '_bkt' in vars.sourcedata
  See the following image:
- Update In Splunk > Inbound Incident playbook as follows:

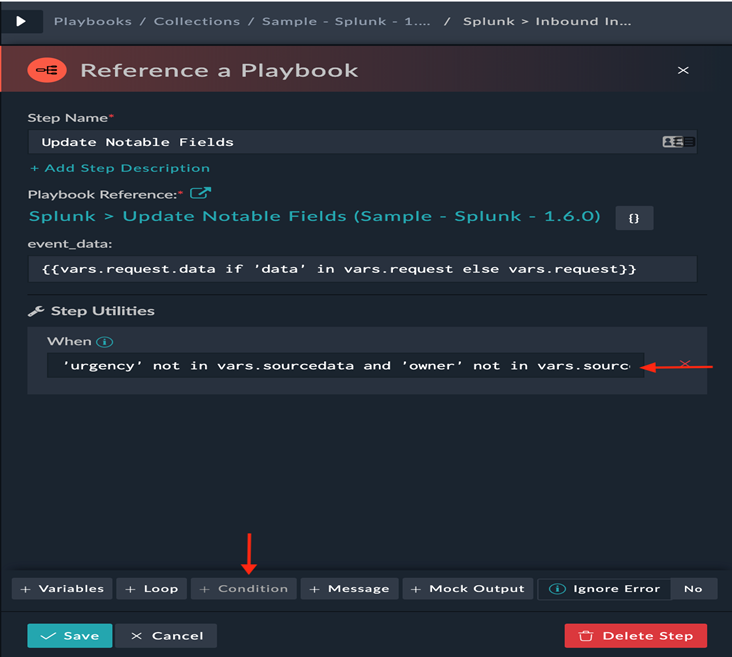

  1. Update the “Update Notable Fields” step, add when the following condition:
    'urgency' not in vars.sourcedata and 'owner' not in vars.sourcedata and 'event_id' in vars.sourcedata and 'notable' in vars.sourcedata.event_id
    See the following image:

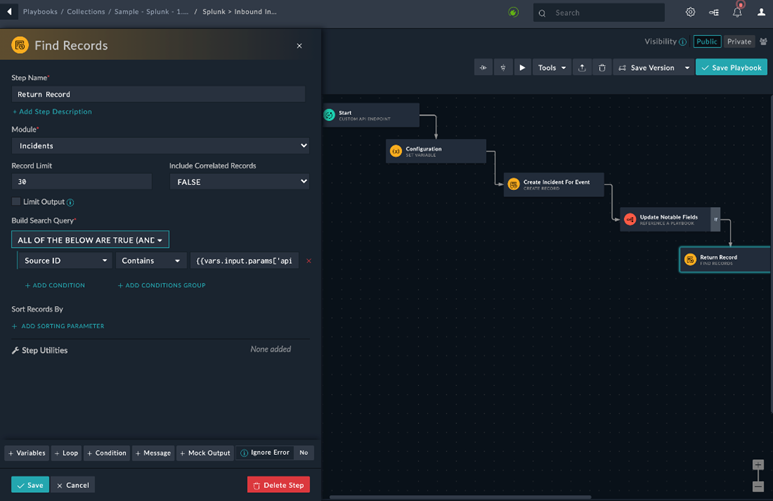

  2. Add a Find Record step named “Return Record” after the “Update Notable Fields“ step.
    In the "Return Record" step, select Incident as the Module, and in filters specify:
    Source ID Contains {{vars.input.params['api_body']['event_id']}}
    See the following image:

Installing the connector

From FortiSOAR™ 5.0.0 onwards, use the Connector Store to install the connector. For the detailed procedure to install a connector, click here.
You can also use the yum command to install connectors. Connectors provided by FortiSOAR™ are delivered using a FortiSOAR™ repository. Therefore, you must set up your FortiSOAR™ repository and run the yum command as a root user to install connectors:

yum install cyops-connector-splunk

Prerequisites to configuring the connector

You must have the URL and credentials of the Splunk server on which you will perform the automated operations. You must also have the credentials of a user, who has a right to configure custom applications on the Splunk server.
The FortiSOAR™ server should have outbound connectivity to port 443 on the Splunk server.

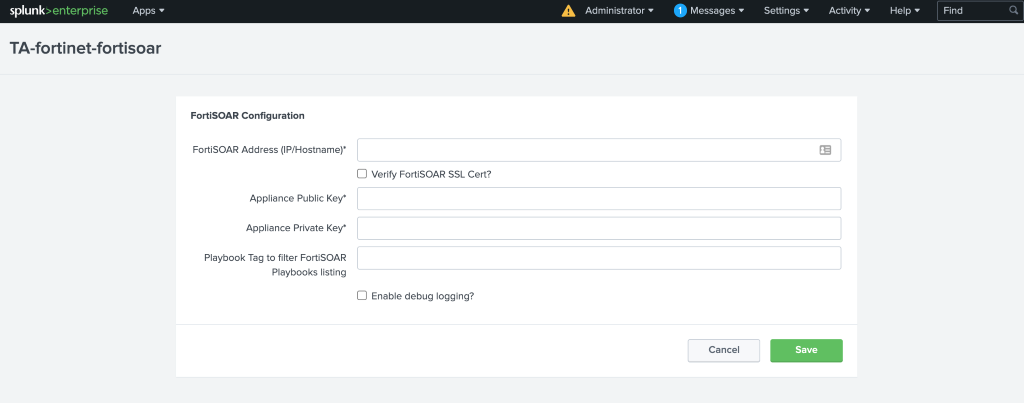

To automatically forward events and alerts from Splunk to FortiSOAR™, you must install and configure the Fortinet FortiSOAR Add-on. For more information, see the Fortinet FortiSOAR Add-on section.
You must enable the Splunk REST API.

Configuring the connector

For the procedure to configure a connector, click here.

Configuration parameters

In FortiSOAR™, on the Connectors page, click the Splunk connector row, and in the Configure tab enter the required configuration details.

Parameter	Description
Server Address	IP or FQDN of the Splunk server to which you will connect and perform automated operations. For example, mySplunkServer.
Username	Username to access the Splunk endpoint.
Password	Password to access the Splunk endpoint.
Protocol	Protocol that will be used to communicate with the Splunk server. Choose either http and https. By default, this is set to https.
Splunk API Port	REST API port of the Splunk server. Defaults to 8089.
Application Namespace	Namespace that will be used for invoking all of the Splunk APIs. For more information about namespaces, see Splunk Documentation.
Verify SSL	Specifies whether the SSL certificate for the server is to be verified or not. Defaults to `True`.

Actions supported by the connector

The following automated operations can be included in playbooks, and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:

Function	Description	Annotation and Category
Invoke Search	Invokes a search on the Splunk server.	search_query Investigation
Get Details for a Search	Retrieves the details for a Splunk search.	get_result Investigation
Get Events for a Search	Retrieves the event details for a Splunk search.	get_events Investigation
Get Results for a Search	Retrieves the results for a Splunk search.	get_result Investigation
Get Splunk Action	Retrieves details of the available Splunk alert actions or adaptive response actions.	get_command Investigation
Run Splunk Action	Runs an alert action or an adaptive response action on a search result or a notable.	run_command Investigation
Update Splunk Notables	Updates Splunk notables when FortiSOAR™ is updated.	update_record Investigation
Sync Splunk Users to FortiSOAR	Synchronizes a Splunk Enterprise Security (ES) user to FortiSOAR™ for co-relation between FortiSOAR™ and Splunk. Note: Synchronize only those users who are allowed to be assigned to notable events.	sync_users Miscellaneous
Get List Of Triggered Alerts	Retrieves a list of alerts that are triggered on Splunk based on the parameters you have specified.	get_alerts Investigation
Get Details Of Triggered Alert	Retrieves information of an alert triggered on Splunk based on the name of the alert you have specified.	get_alert Investigation
Add Comment to Splunk Notables	Adds a comment to the Splunk notable event ID(s) that are specified by a comma-separated list in case of multiple events.	update_record Investigation
Get All Collections from Splunk App	Retrieves a list containing all KVStore collections stored in the context of a specified Splunk App from Splunk, based on the application name and other input parameters you have specified.	get_all_collections Investigation
Add New Collection to Splunk App	Adds a new KVStore collection to a specified Splunk App, based on the application name, collection name, and other input parameters you have specified.	add_new_collection Investigation
Fetch Records from Collection	Retrieves a list of all records of a specified collection within the specified Splunk App, based on the application name, collection name, and other input parameters you have specified.	get_records_in_collection Investigation
Add Record to a Collection	Adds a record to an existing KVStore collection within the specified Splunk App, based on the application name, collection name, record key and value, and other input parameters you have specified.	add_record_to_collection Investigation
Delete Record From a Collection	Removes a record from an existing KVStore collection within the specified Splunk App, based on the application name, collection name, record ID, and other input parameters you have specified.	delete_record_from_collection Investigation

operation: Invoke Search

Input parameters

Parameter	Description
Search Query	Query for the search that you want to run on the Splunk server. Defaults to `\"search host=\"{{vars.result.data.host}}\"`
Earliest Time	(Optional) Start time for the search. Input type is string. If this parameter is left empty, it is set to the current time. For example, `-30m or -14d@d. 'm' stands for minutes, 'd' stands for days. Therefore, when you say -30m it means last 30 minutes and -14 days means last 14 days.` For time format see, http://docs.splunk.com/Documentation/Splunk/8.0.7/SearchReference/SearchTimeModifiers.
Latest Time	(Optional) End time for the search. Input type is string. If this parameter is left empty, it is set to the current time. For time format see, http://docs.splunk.com/Documentation/Splunk/8.0.7/SearchReference/SearchTimeModifiers.
Execution Mode	Mode of execution for this operation. You can choose one of the following options: Normal: To run an asynchronous search. Blocking: To return the sid when the job is complete. One Shot: To return results in the same call. In this case, you can specify the format for the output (for example, JSON output) using the output_mode parameter as described in `GET search/jobs/export`. The default format for output is XML.
Timeout	(Optional) Time, in seconds, of inactivity, after which the search job automatically cancels (0 = Never auto-cancel).
Additional Search Arguments	Additional parameters for the search. You can specify additional parameters, such as time windows, to your search query to get specific search results. For more information, see the Splunk REST API Reference Manual. Note: To run a search in the verbose mode, add the following parameter: `{“adhoc_search_level”:“verbose”}`.

Output

The JSON output contains the data retrieved based on the search query. The search results depend on the additional parameters specified in the search. If the search is run in a blocking or normal mode, the sid is returned. For example, {“sid”: “1496222688.33”}.

The output contains the following populated JSON schema:
{
"sid": ""
}

operation: Get Details for a Search

Input parameters

Parameter	Description
Search ID	ID of the Splunk search for which you want to retrieve details. Defaults to `{"value": "{{vars.request.data.sid}}"}"`.

Output

The JSON output contains all the details based on the specified search ID.

The output contains the following populated JSON schema:
{
"entry": [
{
"acl": {},
"content": {},
"links": [],
"author": "",
"id": "",
"name": ""
}
],
"paging": {},
"generator": {},
"origin": "",
"links": {},
"updated": ""
}

operation: Get Events for a Search

Input parameters

Parameter	Description
Search ID	ID of the Splunk search for which you want to retrieve events. Defaults to `{"value": "{{vars.request.data.sid}}"}"`.
Additional Request Parameters	Optional parameter. You can add other request parameters in the JSON format. For example, `{\"output_mode\": \"json\", \"count\": 10}`

Note: If your search query has additional commands, such as stats, run on the events from the search, the Get Events API returns an empty result if the search is not run in verbose mode. To set the verbose mode, add the following parameter to the Additional Search Arguments parameter in the Invoke Search operation: {“adhoc_search_level”:“verbose”}.

Output

The output contains the following populated JSON schema:
{
"fields": [],
"results": []
}

operation: Get Results for a Search

Input parameters

Parameter	Description
Search Id	ID of the Splunk search as a JSON. For example, `{'value': {{vars.sid}}}`. Note: You must add the Search ID as a JSON with the `key` value as specified in the example; otherwise, the operation might fail.
Additional Request Parameters	(Optional) You can add other request parameters in the JSON format. For example, `{\"output_mode\": \"json\", \"count\": 10}`

Output

The JSON output contains the transformed results for the specified Splunk search in a search result.

The output contains the following populated JSON schema:
{
"init_offset": 0,
"fields": [],
"messages": [],
"results": [],
"preview": false,
"highlighted": {}
}

operation: Get Splunk Action

Input parameters

Parameter	Description
Action Name	Name of the action for which the details are to be fetched. A match for this name is looked for in the action name, description, and label in a Splunk action. This is an optional parameter, and if you do not specify the same, then this operation fetches a list of all Splunk actions.

Output

The JSON output contains input parameters and other details for all alerts actions that match the action name you have specified.

The output contains the following populated JSON schema:
{
"content": {},
"id": "",
"name": ""
}

operation: Run Splunk Action

Input parameters

Parameter	Description
Notable Event Id	ID of the notable event on which you want to run the action.
Search Id	ID of the Splunk search on which you want to run the action. You must specify either the `Notable Event Id` or the `Search Id`.
Action Name	Name of the action to be run.
Action Parameters	Parameters of the action that you want to run. For example, a parameter in the JSON format would be `{\"max_results\":\"1\"}` Note: You can use the `Get Splunk Action` operation to get parameter names for a specific action.
Frequency	If you are running the operation on search results, this parameter specifies if the action should be run only once for the entire resultset or for each result.

Output

This operation executes the action with the help of the sendaction command from Splunk. The JSON output contains the events from the execution of the sendalert command and varies for each command. The following image displays the output of the execution of the SplunkES Risk Analysis AR action on a notable event:

The output contains a non-dictionary value.

operation: Update Splunk Notables

Input parameters

Note. Include this operation in a Splunk playbook and notables will get updated on Splunk when they are updated on FortiSOAR™.

Parameter	Description
Notable Event ID	ID of the notable event that you want to update on Splunk.
Status	Status of the Splunk notable. You can specify any of the following values: Unassigned, New, In Progress, Pending, Resolved, or Closed.
Urgency	Urgency of the Splunk notable. You can specify any of the following values: Info, Low, Medium, High, or Critical.
Owner	Owner of the Splunk notable event.

Output

The JSON output returns a status containing "success" if the Splunk notables are updated, or "failure" with the reason for failure if the Splunk notables are not updated.

The output contains the following populated JSON schema:
{
"status": "",
"result": ""
}

operation: Sync Splunk Users to FortiSOAR

Input parameters

None. Include this operation in a Splunk playbook and users will get updated on Splunk when they are updated in FortiSOAR™.

Output

The JSON output returns a Success message if the Splunk users are synchronized, or an Error message containing the reason for failure. The output also contains the names of the users.

The output contains a non-dictionary value.

operation: Get List Of Triggered Alerts

Input parameters

Parameter	Description
Max Number Of Entries To Return	Maximum number of triggered alerts that you want the operation to return. Set the value to -1 if you want to retrieve all the triggered alerts.
Offset	Index of the first item to return.
Response Filter	Filter used to specify which triggered alerts must be returned. The values of the response fields are matched against this search expression. Examples: `search=foo` matches any field that has the string `foo` in its name. `search=field_name%3Dfield_value` restricts the match to a single field. (Requires URI-encoding.)
Sort By	Sorting order of the result, choose between `asc` (ascending) or `desc` (descending).
Field Name To Use For Sorting	Name of the field on which you want to sort the result.
Sort Mode	Logical sequencing (collate) of the results. Choose between the following: `auto`: If all field values are numeric, collate numerically. Otherwise, collate alphabetically. `alpha` = Collate field values alphabetically, not case-sensitive. `alpha_case` = Collate field values alphabetically, case-sensitive. `num` = Collate field values numerically.

Output

The JSON output contains a list of alerts and other details for all alerts triggered on Splunk based on the parameters you have specified.

The output contains the following populated JSON schema:
{
"entry": [
{
"name": "",
"author": "",
"acl": {
"removable": "",
"can_write": "",
"sharing": "",
"app": "",
"perms": {
"write": [],
"read": []
},
"modifiable": "",
"can_list": "",
"owner": ""
},
"id": "",
"updated": "",
"content": {
"triggered_alert_count": "",
"eai:acl": ""
},
"links": {
"list": "",
"alternate": ""
}
}
],
"paging": {
"perPage": "",
"total": "",
"offset": ""
},
"generator": {
"version": "",
"build": ""
},
"origin": "",
"messages": [],
"updated": "",
"links": {
"_acl": ""
}
}

operation: Get Details Of Triggered Alert

Input parameters

Parameter	Description
Alert Name	Name of the triggered alert for which the details are to be fetched.

Output

The JSON output contains details for the triggered alert that match the alert name you have specified.

The output contains the following populated JSON schema:
{
"paging": {
"perPage": "",
"offset": "",
"total": ""
},
"entry": [
{
"published": "",
"author": "",
"name": "",
"links": {
"job": "",
"savedsearch": "",
"list": "",
"alternate": "",
"remove": ""
},
"acl": {
"removable": "",
"can_write": "",
"sharing": "",
"app": "",
"perms": {
"write": [],
"read": []
},
"modifiable": "",
"can_list": "",
"owner": ""
},
"id": "",
"updated": "",
"content": {
"triggered_alerts": "",
"trigger_time_rendered": "",
"trigger_time": "",
"severity": "",
"actions": "",
"sid": "",
"expiration_time_rendered": "",
"savedsearch_name": "",
"alert_type": "",
"eai:acl": "",
"digest_mode": ""
}
}
],
"generator": {
"version": "",
"build": ""
},
"origin": "",
"links": {
"_acl": ""
},
"updated": "",
"messages": []
}

operation: Add Comment to Splunk Notables

Input parameters

Parameter	Description
Notable Event Ids	ID(s) of the notable event(s) in which you want to add comments. Use a comma-separated list of IDs in case of multiple events.
Comment	Comment that you want to add to the Splunk notable event(s).

Output

The JSON output returns a Success message if the Splunk notable event(s) are updated, or an Error message containing the reason for failure.

The output contains a non-dictionary value.

operation: Get All Collections from Splunk App

Input parameters

Parameter	Description
Owner	(Optional) Name of the user who owns the collection in the Splunk app that you have specified whose complete collection list you want to retrieve from Splunk.
App Name	Name of the app that the collection is part of whose complete collection list you want to retrieve from Splunk.

Output

The output contains the following populated JSON schema:
{
"messages": [],
"updated": "",
"origin": "",
"paging": {
"perPage": "",
"total": "",
"offset": ""
},
"links": {
"_acl": "",
"_reload": "",
"create": ""
},
"generator": {
"build": "",
"version": ""
},
"entry": [
{
"updated": "",
"id": "",
"author": "",
"content": {
"eai:appName": "",
"replication_dump_maximum_file_size": "",
"field._time": "",
"replication_dump_strategy": "",
"disabled": "",
"profilingThresholdMs": "",
"field.data": "",
"eai:acl": "",
"profilingEnabled": "",
"type": "",
"field.user": "",
"field.splunk_server": "",
"replicate": "",
"eai:userName": "",
"accelerated_fields.default": ""
},
"acl": {
"modifiable": "",
"removable": "",
"can_share_app": "",
"perms": {
"read": [],
"write": []
},
"can_share_global": "",
"sharing": "",
"can_write": "",
"app": "",
"can_list": "",
"can_share_user": "",
"owner": "",
"can_change_perms": ""
},
"links": {
"list": "",
"_reload": "",
"alternate": "",
"edit": "",
"disable": ""
},
"name": ""
}
]
}

operation: Add New Collection to Splunk App

Input parameters

Parameter	Description
Owner	(Optional) Name of the user who owns the collection in the Splunk app in which you want to add a new collection.
App Name	Name of the app to which you want to add the new collection.
Collection Name	Name of the new collection that you want to add to the Splunk app.

Output

The output contains the following populated JSON schema:
{
"messages": [],
"updated": "",
"origin": "",
"paging": {
"perPage": "",
"total": "",
"offset": ""
},
"links": {
"_acl": "",
"_reload": "",
"create": ""
},
"generator": {
"build": "",
"version": ""
},
"entry": [
{
"updated": "",
"id": "",
"author": "",
"content": {
"profilingEnabled": "",
"profilingThresholdMs": "",
"eai:appName": "",
"replication_dump_maximum_file_size": "",
"replication_dump_strategy": "",
"disabled": "",
"type": "",
"replicate": "",
"eai:acl": "",
"eai:userName": ""
},
"acl": {
"modifiable": "",
"removable": "",
"can_share_app": "",
"perms": {
"read": [],
"write": []
},
"can_share_global": "",
"sharing": "",
"can_write": "",
"app": "",
"can_list": "",
"can_share_user": "",
"owner": "",
"can_change_perms": ""
},
"links": {
"list": "",
"remove": "",
"disable": "",
"_reload": "",
"alternate": "",
"edit": ""
},
"name": ""
}
]
}

operation: Fetch Records from Collection

Input parameters

Parameter	Description
Owner	(Optional) Name of the user who owns the collection in the Splunk app whose records you want to retrieve from Splunk.
App Name	Name of the app that the collection is part of whose records you want to retrieve from Splunk.
Collection Name	Name of the collection whose records you want to retrieve from Splunk.

Output

The output contains the following populated JSON schema:
{
"_user": "",
"_key": ""
}

operation: Add Record to a Collection

Input parameters

Parameter	Description
Owner	(Optional) Name of the user who owns the collection in the Splunk app in which you want to add records.
App Name	Name of the Splunk app that the collection is part in which you want to add records.
Collection Name	Name of the collection to which you want to add records.
Record Key	Key of the record that you want to add to the specified collection.
Record Value	Value of the record that you want to add to the specified collection.

Output

The output contains the following populated JSON schema:
{
"_key": ""
}

operation: Delete Record From a Collection

Input parameters

Parameter	Description
Owner	(Optional) Name of the user who owns the collection in the Splunk app from which you want to delete records.
App Name	Name of the Splunk app that the collection is part from which you want to delete records.
Collection Name	Name of the collection from which you want to delete records.
Record ID	ID of the record that you want to delete from the specified collection.

Output

The output contains the following populated JSON schema:
{
"success": ""
}

Included playbooks

The Sample-Splunk-1.6.1 playbook collection comes bundled with the Splunk connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Splunk connector.

Splunk > Add New Collection to Splunk App
Splunk > Add Record to a Collection
Splunk > Alert Action
Splunk > Alert Post-Update
Splunk > Alert Update
Splunk > Delete Record From a Collection
> Splunk > Fetch
Splunk > Fetch Records from Collection
Splunk > Get All Collections from Splunk App
Splunk > Get List of Triggered Alerts
>> Splunk > Handle Macro
Splunk > Inbound Alert
Splunk > Inbound Incident
Splunk > Incident Post-Update
Splunk > Incident Update
Splunk > Ingest
Splunk > Search Actions
Splunk > Sync Splunk Users to FortiSOAR
Splunk > Triggered Alerts Actions
Splunk > Update Notable Fields

The Splunk > Get List of Triggered Alerts playbook is used for Adaptive Response FortiSOAR: Run Playbook action.

The sample playbooks from 2 to 8 work in conjunction with the TA-fortinet-fortisoar-x.x.x.tar.gz to invoke FortiSOAR actions from the Splunk UI and also to automatically forward Splunk alerts and notable as FortiSOAR Alerts and Incidents. For more information, see the Fortinet FortiSOAR Add-on section.

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during the connector upgrade and delete.

Additional configurations required for automatically creating and updating alerts

1. Synchronizing Splunk ES users with FortiSOAR™

Use the Sync Splunk Users to FortiSOAR connector function in a playbook to synchronize specific Splunk users to FortiSOAR™. Synchronize only those users who are allowed to be assigned to notable events. Synchronizing the users would enable FortiSOAR™ to assign the FortiSOAR alert to the same user as the Assignee for the corresponding Splunk notables.

2. Updating the FortiSOAR™ modules

Note: This procedure is optional, and it enables the bidirectional update of notables. Therefore, perform this procedure, only if you require the Splunk notables to be automatically updated if the corresponding FortiSOAR™ incident or alert module is updated and vice-versa. This procedure also assumes that you are using FortiSOAR™ version 4.10.1 or higher. If you are using a different version of FortiSOAR™, such as FortiSOAR™ 4.9, then it is possible that the FortiSOAR™ UI navigation is different. Refer to the FortiSOAR™ documentation of that particular version for details about FortiSOAR™ navigation.

When a Splunk ES notable event is mapped to a FortiSOAR™ alert or incident, the Status and Urgency of the event can be mapped into the equivalent fields in the FortiSOAR™ modules. The sample playbooks included with Splunk 1.5.0 and later already contain the mapping for the FortiSOAR™ incident and alert modules in their "Configuration" step. The following image is of the Configuration step in the Splunk > Inbound Alert playbook that contains the mapping:

Modifying the default Alert and Incident Creation Behavior

As mentioned in the Integration Points section, the actions from the Fortinet Splunk Add-on invokes playbooks bundled with the Fortinet Splunk connector for the desired automation. If you want to customize the default behavior of the playbooks, you can either modify the existing playbook or create and invoke a new playbook. In case you are creating a new playbook, you must deactivate or delete the corresponding sample playbook and write a new playbook with the same API trigger.

The following table lists the API trigger and the corresponding default playbook for your easy reference:

S.No.	Action	API Trigger	Default Playbook
1	FortiSOAR: Create Alert	`api/triggers/1/splunkAlert`	Splunk > Inbound Alert
2	FortiSOAR: Create Incident	`api/triggers/1/splunkIncident`	Splunk > Inbound Incident
3	For updating the FortiSOAR Alert when the corresponding notable event is updated	`api/triggers/1/splunkAlertUpdate`	Splunk > Alert Update
4	For updating the FortiSOAR Incident when the corresponding notable event is updated	`api/triggers/1/splunkIncidentUpdate`	Splunk > Incident Update
5	For Updating Splunk on Alert Post-Update	NA	Splunk > Alert Post-Update
6	For Updating Splunk on Incident Post-Update	NA	Splunk > Incident Post-Update

The playbooks are installed with the FortiSOAR Splunk connector. For integrations 5 and 6 to work, ensure that you have updated the connector steps in the appropriate playbook to point to your Splunk configuration.

It is recommended that you make a copy of these playbooks and then customize them as per your requirements. Once you have a working copy, ensure that you set the state of the sample playbooks to Inactive; otherwise, both the playbooks will be triggered whenever events are forwarded from Splunk.

Troubleshooting

Fingerprint has expired error is observed in the `TA-fortinet-fortisoar-x.x.x.tar` log

The "Fingerprint has expired” error is seen in the ta-fortinet-fortisoar_fortisoar_common.connection.log file.

Resolution:

This issue could occur in cases where there is a difference between the time of the Splunk Search Head and the FortiSOAR™ instance. Resolve this issue by synchronizing the time of the Splunk Search Head and your FortiSOAR™ instance to a common NTP server.

Fortinet FortiSOAR Add-on

Use the Fortinet FortiSOAR Add-on to automatically forward events and alerts from Splunk to FortiSOAR™ and invoke FortiSOAR™ playbooks for investigation.

Version Information:

Applies to: Splunk Enterprise 7.3.8, 8.0.7.

Splunk Technology Add-on Version: 2.6.0

FortiSOAR™ Version Tested on: 6.4.4-3164

Compatibility with Splunk connector Versions: 1.6.1 and later

Authored By: Fortinet

Certified: Yes

Release Notes for Fortinet FortiSOAR Add-on version 2.6.0

Following enhancements have been made to the Fortinet FortiSOAR Add-on in version 2.6.0:

Added support for Splunk 8.0.x. See the Splunk 8.0.x support section for more information.
Replaced "CyberSponse" with "Fortinet FortiSOAR".

Installing and configuring the Fortinet FortiSOAR Add-on

The Fortinet Splunk Add-on is designed to work in conjunction with normal events as well as notable events from Splunk ES. While ES is not a requirement, it is recommended since all bi-directional updates only apply to Splunk notable events.

Upgrading Fortinet FortiSOAR Add-on

To upgrade to Fortinet FortiSOAR Add-on 2.6.0, you must first delete version 2.5.0 of the Fortinet FortiSOAR Add-on and install the new version.

Capabilities of the Fortinet FortiSOAR Add-on

Both Splunk ES and FortiSOAR can track workflow status for incidents or alerts, such as changes to the incident’s estimated urgency, who is investigating the incident, the current status of the investigation, and comments on the incident. This add-on coordinates that status tracking so that both ES and FortiSOAR™ follow each other’s status changes and update local status accordingly.
This add-on adds workflow actions in both Splunk Search and ES’s Incident Review page allowing users to create FortiSOAR™ alerts or incidents out of arbitrary Splunk events.

Installing the Splunk application

Import the Fortinet Splunk App TA-fortinet-fortisoar-x.x.x.tar.gz into Splunk ES Search Head.
Important: The TA-fortinet-fortisoar-2.6.0.tar.gz file is attached to this article and it also can be downloaded from the Splunk Store.

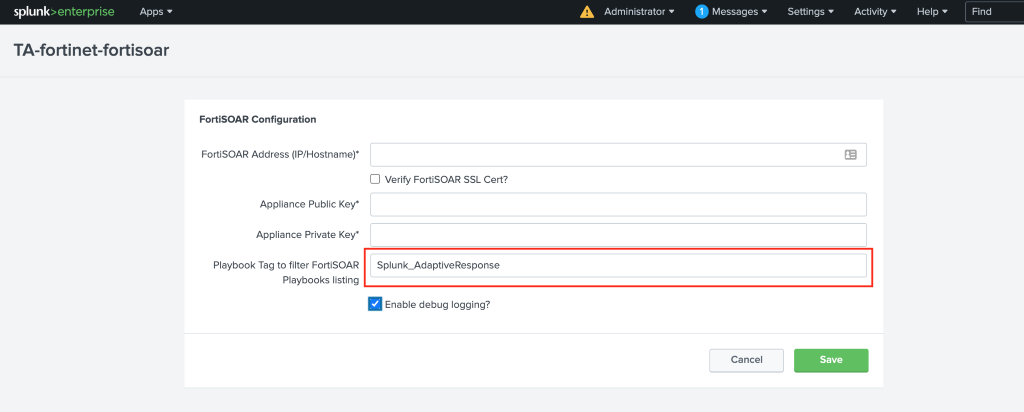

Configure the TA-fortinet-fortisoar-x.x.x.tar.gz.
Specify a FortiSOAR user who has permission to view and trigger FortiSOAR playbooks.
Ensure that the Splunk server has connectivity to the FortiSOAR™ server and can send requests to the FortiSOAR™ instance on port 443.

Integration Points

The Fortinet FortiSOAR Add-on provides the following integration points:

1. Alert Actions

FortiSOAR: Create Alert - Creates an alert in FortiSOAR with the event data. Triggers the FortiSOAR playbook Splunk Inbound Alert with the api/triggers/1/splunkAlert API trigger. Ensure that the playbook is Active for automated Alert creation.
FortiSOAR: Create Incident - Creates an incident in FortiSOAR with the event data. Triggers the FortiSOAR playbook Splunk Inbound Incident with the api/triggers/1/splunkIncident API trigger. Ensure that the playbook is Active for automated Incident creation.

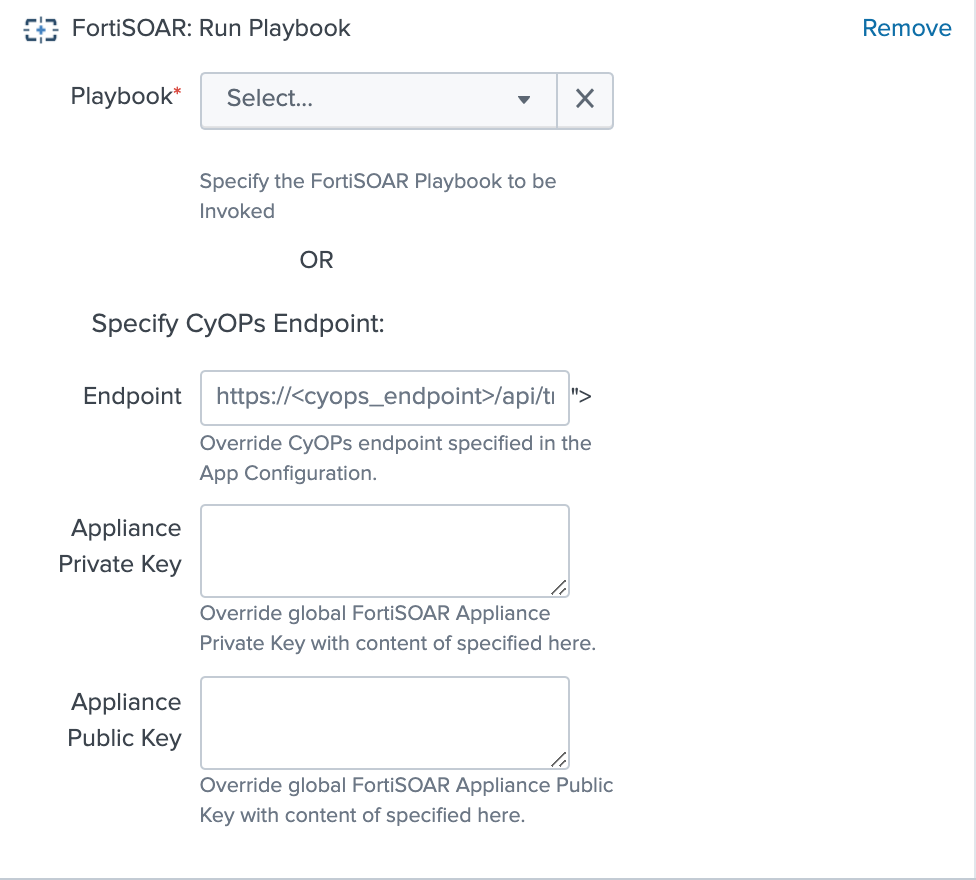

FortiSOAR: Run Playbook - Lists all active FortiSOAR playbooks that have an API Trigger as the starting step. The list of playbooks can additionally be filtered based on the tags. The tags are specified in the Set Up page on the Fortinet Splunk Add-on.

OR
Specify the FortiSOAR Playbook that will be Invoked to override the FortiSOAR™ endpoint and Appliance Keys, which have been specified in the application configuration.
Note: To generate APPLIANCE_PRIVATE_KEY and APPLIANCE_PUBLIC_KEY, log on to FortiSOAR™ as an administrator and click Settings > Appliances. Click Add to create a new appliance. On the New Appliance page specify the name of the appliance and select the Team(s) and Role(s). i.e., Application Administrator and Playbook Administrator roles that apply to this appliance and click Save. Once you save the new appliance record, FortiSOAR™ displays a pair of Public / Private cryptographic keys in a modal window. You must keep a copy of these keys and add them to the APPLIANCE_PRIVATE_KEY and APPLIANCE_PUBLIC_KEY fields.

2. Event Actions

Note: The actions listed in this section are available for both notable and non-notable events.

FortiSOAR: Create Alert
FortiSOAR: Create Incident

3. Adaptive Response Actions

FortiSOAR: Run Playbook

4. Saved Searches

The Fortinet Splunk Add-on adds the following searches to Splunk ES. Schedule one of these searches to run every minute to enable automated creation of FortiSOAR alerts or incidents for every Splunk notable:

Send ES notable events to FortiSOAR as alerts
Send ES notable events to FortiSOAR as incidents
To keep the notable status, assignee, and severity updates synchronized between the two products, schedule the following search:
Send ES notable updates to FortiSOAR
By default, this search sends the ES notable updates to FortiSOAR™ as an alert. If you are ingesting the events as incidents in FortiSOAR™, edit the macros.conf file in the Fortinet Splunk Add-on. In this case, edit the macros.conf file to set the update_type macro to incident-update.
These searches invoke the FortiSOAR playbooks: Splunk Alert Update or Splunk Incident Update, whenever Status, Urgency or Assignee is updated for a notable in Splunk so that the corresponding fields are updated in the FortiSOAR module, provided that the playbooks are in the Active state.

5. Commands

cybersponsesend
This command can also be used directly to forward any search result to FortiSOAR™ as an alert or incident. For example,
<search> | cybersponsesend alert
<search> | cybersponsesend incident

Additionally, the add-on also provides an automated update of Splunk notables, if the Status, Assignee or Urgency fields are updated on the corresponding FortiSOAR module. The playbooks Update Splunk on Alert Post-Update and Update Splunk on Incident Post-Update are triggered whenever the FortiSOAR module is updated, provided the playbooks are in the Active state.

Data Ingestion Support

Use the Data Ingestion Wizard to easily ingest data into FortiSOAR™ by pulling events from Splunk. Currently, "events" in Splunk are mapped to "alerts" in FortiSOAR™. For more information on the Data Ingestion Wizard, see the "Connectors Guide" in the FortiSOAR™ product documentation.

Configure Data Ingestion

You can configure data ingestion using the “Data Ingestion Wizard” to seamlessly map the incoming Splunk "Events" to FortiSOAR™ "Alerts".

The Data Ingestion Wizard enables you to configure scheduled pulling of data from Splunk into FortiSOAR. It also lets you pull some sample data from Splunk using which you can define the mapping of data between Splunk and FortiSOAR. The mapping of common fields is generally already done by the Data Ingestion Wizard; users mostly require to only map any custom fields that are added to the Splunk event

To begin configuring data ingestion, click Configure Data Ingestion on the Splunk connector’s "Configurations" page.
Click Let’s Start by fetching some data, to open the “Fetch Sample Data” screen.

Sample data is required to create a field mapping between Splunk data and FortiSOAR™. The sample data is pulled from connector actions or ingestion playbooks.
On the Fetch Data screen, provide the configurations required to fetch Splunk data.
Users can choose to pull data from Splunk by specifying a 'search query' based on which events should be pulled from Splunk. You can also specify additional parameters such as the time range or bound of the search by specifying the start (earliest) time and the end (latest) time for the search and the mode of execution for the search; choices being One Shot, Blocking, or Normal, based on which you want to pull events from Splunk. The fetched data is used to create a mapping between the Splunk data and FortiSOAR™ alerts.

Once you have completed specifying the configurations, click Fetch Data.
On the Field Mapping screen, map the fields of a Splunk event to the fields of an alert present in FortiSOAR™.
To map a field, click the key in the sample data to add the “jinja” value of the field. For example, to map the _time parameter of a Splunk event to the Event Time parameter of a FortiSOAR™ alert, click the Event Time field and then click the _time field to populate its keys:

For more information on field mapping, see the Data Ingestion chapter in the "Connectors Guide" in the FortiSOAR™ product documentation. Once you have completed mapping fields, click Save Mapping & Continue.
(Optional) Use the Scheduling screen to configure schedule-based ingestion, i.e., specify the polling frequency to Splunk, so that the content gets pulled from the Splunk integration into FortiSOAR™.
On the Scheduling screen, from the Do you want to schedule the ingestion? drop-down list, select Yes.
In the “Configure Schedule Settings” section, specify the Cron expression for the schedule. For example, if you want to pull data from Splunk every 5 minutes, click Every X Minute and in the minute box enter */5. This would mean that based on the configuration you have set up, data, i.e., alerts will be pulled from Splunk every 5 minutes.

Once you have completed scheduling, click Save Settings & Continue.
The Summary screen displays a summary of the mapping done, and it also contains links to the Ingestion playbooks. Click Done to complete the data ingestion and exit the Data Ingestion Wizard.

TA-fortinet-fortisoar-2.6.0.tar.gz

About the connector

Splunk is a SIEM software that allows searching, monitoring and analyzing machine-generated big data, using a web-style interface. For more information, see the Splunk website.

You can also automatically forward events and alerts from Splunk to FortiSOAR™ using the Fortinet FortiSOAR Add-on. For more information, see the Fortinet FortiSOAR Add-on section.

You can use FortiSOAR™'s Data Ingestion Wizard to easily ingest data into FortiSOAR™ by pulling events from Splunk. For more information, see the Data Ingestion Support section.
