Anomali ThreatStream

Copy Link

About the connector

Anomali ThreatStream offers the most comprehensive Threat Intelligence Platform, allowing organizations to access all intelligence feeds and integrate it seamlessly with internal security and IT systems.



This document provides information about the Anomali ThreatStream connector, which facilitates automated interactions, with ThreatStream server using FortiSOAR™ playbooks. Add the Anomali ThreatStream connector as a step in FortiSOAR™ playbooks and perform automated operations, such as automatically getting reputation of an IP address, URL, File, Email, or Domain providing you the ability to investigate and contain a file-based incident in a fully automated manner.



Version information

Connector Version: 1.0.1

Compatibility with FortiSOAR™ Versions: 4.9.0.0-708 and later

Compatibility with Anomali ThreatStream API Version: v2



Release Notes for version 1.0.1

Following enhancements have been made to the Anomali ThreatStream Connector in version 1.0.1:

  • Updated configuration parameters.
  • Added Validate Input parameter for all operations, except the Run Filter Language Query and Run Advance Query operations.
  • Added annotations to functions.



Installing the connector

For the procedure to install a connector, click here.



Prerequisites to configuring the connector

  • You must have the URL of ThreatStream server to which you will connect and perform the automated operations and the credentials to access that server.
  • You must have a registered username for the ThreatStream server and the API key for a ThreatStream API integration.
  • To access the FortiSOAR™ UI, ensure that port 443 is open through the firewall for the FortiSOAR™ instance.



Configuring the connector

For the procedure to configure a connector, click here.



Configuration parameters

In FortiSOAR™, on the Connectors page, select the Anomali ThreatStream connector and click Configure to configure the following parameters:



Parameter Description
Server URL IP address or Host name URL of the ThreatStream server to which you will connect and perform the automated operations.
Registered User Name Registered username for ThreatStream.
User API Key API key configured for your account for using the ThreatStream API.
Verify SSL Specifies whether the SSL certificate for the server is to be verified or not.
By default, this option is set as True.



Actions supported by the connector

The following automated operations can be included in playbooks and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:



Function Description Annotation and Category
Get Domain Reputation Retrieves the reputation of the specified domain based on the filter criteria that you have specified. domain_reputation
Investigation
Get IP Reputation Retrieves the reputation of the specified IP address based on the filter criteria that you have specified. ip_reputation
Investigation
Get URL Reputation Retrieves the reputation of the specified URL based on the filter criteria that you have specified. url_reputation
Investigation
Get Email Reputation Retrieves the reputation of the specified Email address based on the filter criteria that you have specified. email_reputation
Investigation
Get File Reputation Retrieves the reputation of the specified FileHash based on the filter criteria that you have specified. file_reputation
Investigation
Get Whois Domain Information Executes a WhoIs lookup on the specified domain name and retrieves a list of domains based on the domain name and filter criteria that you have specified. whois_domain
Investigation
Get Whois IP Information Executes a WhoIs lookup on the specified IP address and retrieves a list of IP addresses based on the IP and filter criteria that you have specified. whois_ip
Investigation
Run Filter Language Query Runs a search query using ThreatStream’s Filter Language Query grammar. search_query
Investigation
Run Advance Query Runs an advanced search query using ThreatStream’s Query grammar. search_query
Investigation



operation: Get Domain Reputation

Input parameters



Parameter Description
Domain Name Name of the domain for which you want to retrieve reputation information.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, Domain Name in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output



The JSON output contains a list of domains as per filter option and information of the specified domain such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [7] as shown in the following image, which displays a sample output:

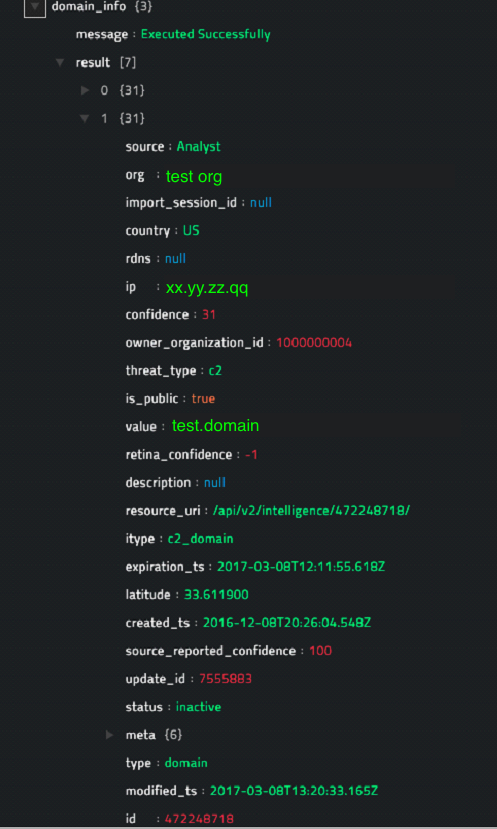

Sample output of the Get Domain Reputation operation


operation: Get IP Reputation

Input parameters



Parameter Description
IP Address IP address for which you want to retrieve reputation information.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, IP Address in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of IPs as per filter option and information of the specified IP such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp.


The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the the total number of results returned in the result item, for example, result [1] as shown in the following image, which displays a sample output:

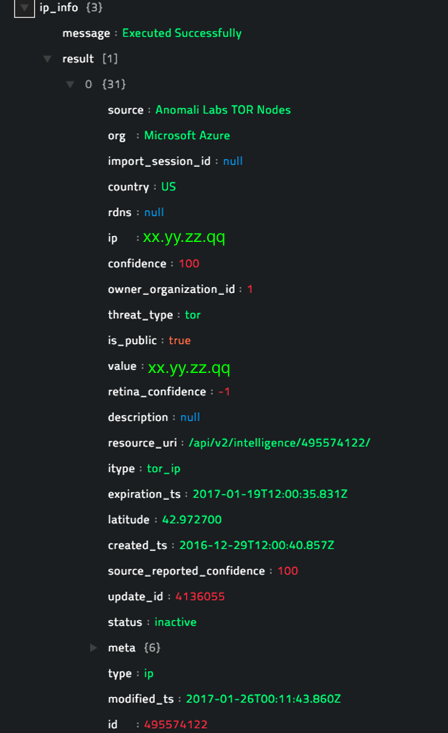

Sample output of the Get IP Reputation operation


operation: Get URL Reputation

Input parameters



Parameter Description
URL URL for which you want to retrieve reputation information.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, URL in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of URLs as per filter option and information of the specified URL such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp. The output also includes the total number of results returned.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [1] as shown in the following image, which displays a sample output:



Sample output of the Get URL Reputation operation



operation: Get Email Reputation

Input parameters



Parameter Description
Email Address Email ID for which you want to retrieve reputation information.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, Email ID in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of email addresses as per filter option and information of the specified email address such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp. The output also includes the total number of results returned.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the the total number of results returned in the result item, for example, result [1] as shown in the following image, which displays a sample output:

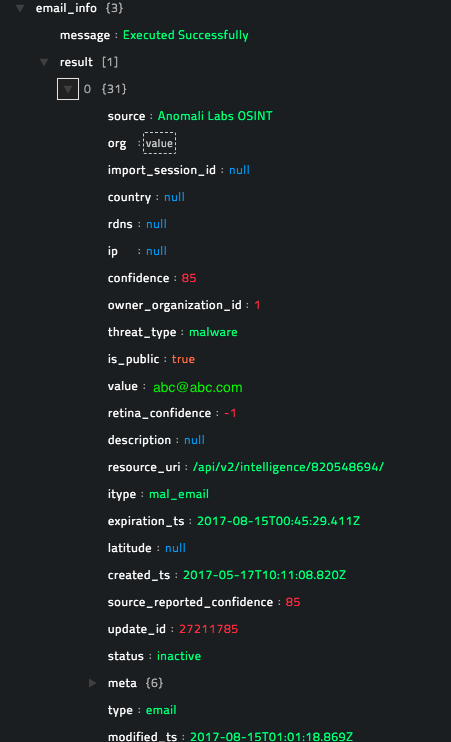

Sample output of the Get Email Reputation operation



operation: Get File Reputation

Input parameters



Parameter Description
File Hash FileHash for which you want to retrieve reputation information.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, FileHash in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of file hash as per filter option and information of the specified file hash such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [328] as shown in the following image, which displays a sample output:

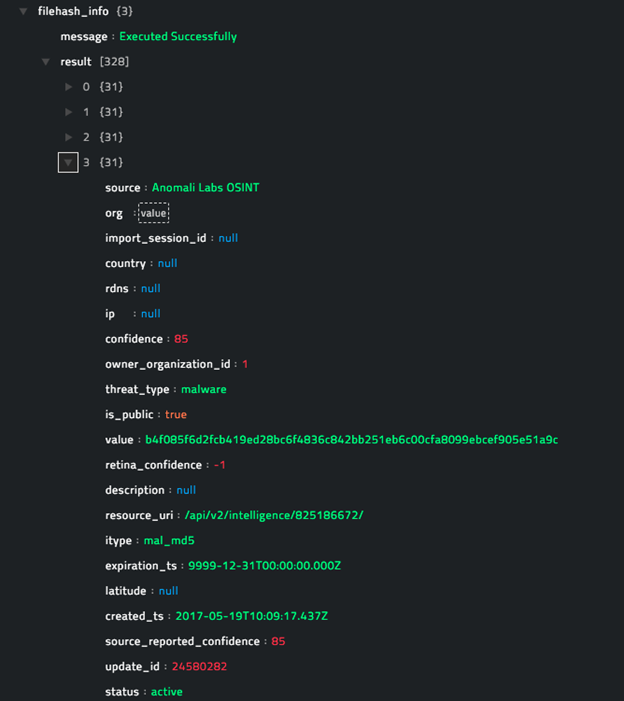

Sample output of the Get File Reputation operation



operation: Get Whois Domain Information

Input parameters



Parameter Description
Domain Name Name of the domain for which you want to retrieve information from Whois.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, Domain Name in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of domains as per filter option and information of the specified domains such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp from Whois.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [1] as shown in the following image, which displays a sample output:



Sample output of the Get Whois Domain Information operation



operation: Get Whois IP Information

Input parameters



Parameter Description
IP Address IP address for which you want to retrieve information from Whois.
Filter Options Filter options supported by ThreatStream.
Filter options supported by ThreatStream are exact, startswith, contains, regex, and regexp.
Validate Input Select this checkbox, if you want to validate the input you have provided, IP Address in this case.
Note: This option is effective only if you set the Filter Options to exact.
By default, this option is set as False.



Output

The JSON output contains the list of IP addresses as per filter option and information of the specified IP address such as threatscore, country, type, feed id, IP, modified timestamp, and created timestamp from Whois.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [6] as shown in the following image, which displays a sample output:

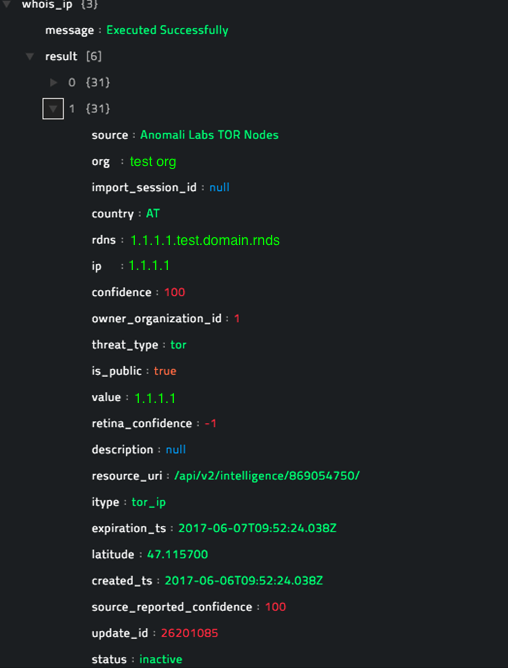

Sample output of the Get Whois IP Information operation



operation: Run Filter Language Query

Input parameters



Parameter Description
Query Valid query to be run on the ThreatStream server. The query must conform to ThreatStream’s Filter Language Query grammar.



Output

The JSON output depends on the query that you run on the ThreatStream server.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [4] as shown in the following image, which displays a sample output:



Sample output of the Run Filter Language Query operation



operation: Run Advance Query

Input parameters



Parameter Description
Query Valid query to be run on the ThreatStream server. The query must conform to ThreatStream’s Query grammar.



Output

The JSON output depends on the query that you run on the ThreatStream server.



The output also includes a message that includes the execution status of the playbook, for example, message: Executed Successfully and the total number of results returned in the result item, for example, result [18] as shown in the following image, which displays a sample output:

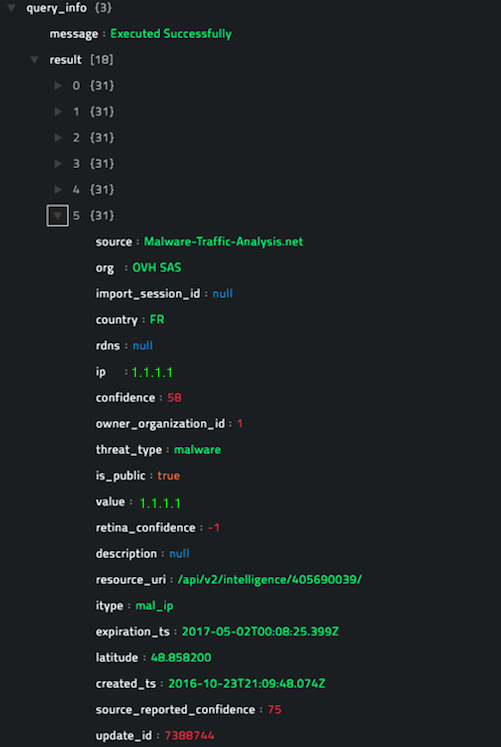

Sample output of the Run Filter Language Query operation



Included playbooks

The Sample-ThreatStream-1.0.1 playbook collection comes bundled with the Anomali ThreatStream connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Anomali ThreatStream connector.

  • TS: Get Domain Reputation
  • TS: Get Email ID Reputation
  • TS: Get IP Reputation
  • TS: Get File Hash(MD5) Reputation
  • TS: Get URL Reputation
  • TS: Perform Advance ThreatStream Query
  • TS: Perform Filter Language Query
  • TS: Perform Whois lookup on given Domain
  • TS: Perform Whois lookup on given IP

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during connector upgrade and delete.
