About the connector

Check Point Firewall provides small, medium, and large customers with the latest data and network security protection in an integrated next-generation firewall platform, which reduces complexity and lowers the total cost of ownership. Whether you need next-generation security for your data center, enterprise, small business or home office, Check Point has a solution for you.

This document provides information about the Check Point Firewall connector, which facilitates automated interactions, with a Check Point Firewall server using FortiSOAR™ playbooks. Add the Check Point Firewall connector as a step in FortiSOAR™ playbooks and perform automated operations, such as blocking or unblocking IP addresses, URLs, or applications, or retrieving a list of blocked IP addresses, URLs, or applications.



Version information

Connector Version: 1.0.0

Compatibility with FortiSOAR™ Versions: 4.10.2-225 and later

Compatibility with Check Point Firewall Versions: R80.10 and later



Installing the connector

For the procedure to install a connector, click here.



Prerequisites to configuring the connector

  • You must have the URL of the Check Point Firewall server to which you will connect and perform the automated operations and the credentials to access that server.
  • To access the FortiSOAR™ UI, ensure that port 443 is open through the firewall for the FortiSOAR™ instance.
  • To block or unblock IP addresses, URLs, or applications, you need to add the necessary configuration to the Check Point Firewall. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.

Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall

  1. Log on to Check Point Firewall with the necessary credentials.
    Check Point Firewall Standard page
  2. To block or unblock IP Addresses, you must create a policy. Following steps define the process of adding a policy

    1. Create a network group.
    2. Add a new policy in Access Control, and then add the newly created network group in Source. Set the Destination As any and the Action as Drop, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your IP Block Policy configuration parameter. In our example, we have named our network group as cybersponse-block-ip, therefore, you must enter cybersponse-block-ip in the IP Block Policy field.
    3. To block or unblock URLs, you must create a policy. Following steps define the process of adding a policy
    4. Create an application or site object.
    5. Add a new policy in Access Control, and the add the newly created application or site object in Services & Applications, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your URL Block Policy configuration parameter. In our example, we have named our application or site object as cybersponse-url-block, therefore, you must enter cybersponse-url-block in the URL Block Policy field.
    6. To block or unblock Applications, you must create a policy. Following steps define the process of adding a policy
    7. Create an application or site group object.
    8. Add a new policy in Access Control, and the add the newly created application or site group object in Services & Applications, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your Application Block Policyconfiguration parameter. In our example, we have named our application or site group object as cybersponse-app-block-group, therefore, you must enter cybersponse-app-block-group in the Application Block Policy field.
    9. Configure the firewall using the following steps:
    10. Open SmartConsole and log on to your management server. If you have a multi-domain environment, log on to the MDS domain.
    11. On the left-navigation, click Manage & Settings.
    12. Click Blades.
    13. In the Management API section, click Advanced Settings.
    14. Choose between the following options: Accept API calls from the management server only (this is the default setting), All IP addresses that can be used for GUI clients (select this if you want to allow the API server to accept requests only from IP addresses that can be used to connect with the management server using SmartConsole), or All IP addresses.
    15. Once you have made the selection, click the Publish button and use SSH to log on to the management server in the expert mode and type api restart.

Configuring the connector

For the procedure to configure a connector, click here.



Configuration parameters

In FortiSOAR™, on the Connectors page, select the Check Point Firewall connector and click Configure to configure the following parameters:



Parameter Description
Server URL IP address or Hostname of the Check Point Firewall server to which you will connect and perform automated operations.
Port Port number used for connecting to the Check Point Firewall server.
Username Username to access the Check Point Firewall server to which you will connect and perform the automated operations.
Password Password to access the Check Point Firewall server to which you will connect and perform the automated operations.
IP Block Policy (Network Group Name) List of the IP Hosts that you have specified in Check Point Firewall for blocking or unblocking IP addresses. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
URL Block Policy (Application/Site Name) Name of the URL Group that you have specified in Check Point Firewall for blocking or unblocking URLs. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
Application Block Policy (Application/Site Group Name) Name of the application group that you have specified in Check Point Firewall for blocking or unblocking applications. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
Verify SSL Specifies whether the SSL certificate for the server is to be verified or not.
By default, this option is set as True.



Actions supported by the connector

The following automated operations can be included in playbooks and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:



Function Description Annotation and Category
Block URLs Blocks URLs using the URL Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_url
Containment
Unblock URLs Unblocks URLs using the URL Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_url
Remediation
Block IP Address Blocks IP addresses using the IP Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_ip
Containment
Unblock IP Address Unblocks IP addresses using the IP Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_ip
Remediation
Block Application Blocks IP addresses using the Application Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_app
Containment
Unblock Application Unblocks IP addresses using the Application Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_app
Remediation
Get Blocked URLs Retrieves a list of URLs that are blocked on Check Point Firewall. get_blocked_url
Investigation
Get Blocked IPs Retrieves a list of IP Addresses that are blocked on Check Point Firewall. get_blocked_ip
Investigation
Get Blocked Application Names Retrieves a list of application names that are blocked on Check Point Firewall. get_blocked_app
Investigation
Validate Configuration Policies Checks whether the policies that you have mentioned in the Configuration parameters section are valid or not. validate_policies
Investigation
Get Sessions Retrieves a list of active sessions from Check Point Firewall. get_sessions
Investigation
Get Session Retrieves details of the session, based on the session UID that you have specified, from Check Point Firewall. get_session
Investigation
Terminate Session Terminates a session on Check Point Firewall, based on the Session UID you have specified. terminate_sessions
Remediation
Get Applications Detail Retrieves a list of applications and associated details from Check Point Firewall. get_app_details
Investigation



operation: Block URLs

Input parameters



Parameter Description
URLs URLs that you want to block. URLs must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the URLs are successfully blocked.

Following image displays a sample output:

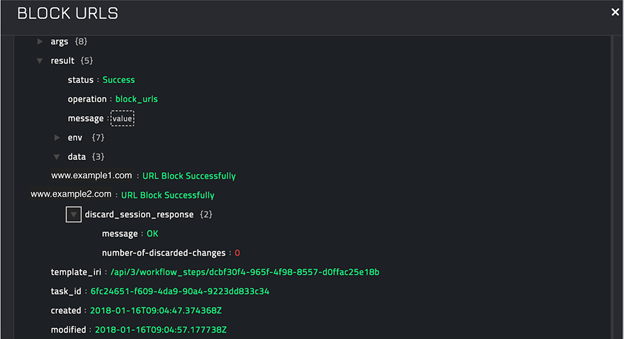

Sample output of the Block URLs operation



operation: Unblock URLs

Input parameters



Parameter Description
URLs URLs that you want to unblock. URLs must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the URLs are successfully unblocked.

Following image displays a sample output:

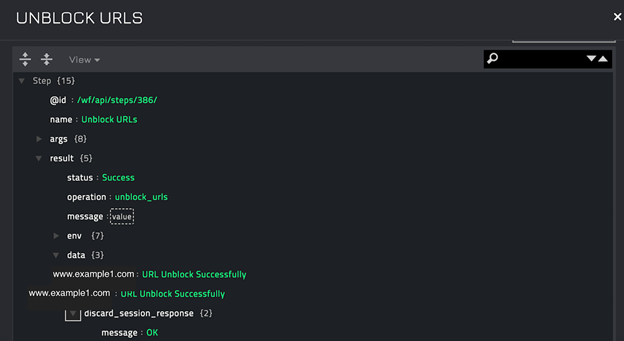

Sample output of the Unblock URLs operation



operation: Block IP Address

Input parameters



Parameter Description
IPs IP addresses that you want to block. IP addresses must be in the list format.
For example, ["X..X.X.X", "Y.Y.Y.Y"]



Output

The JSON output contains a status message of whether or not the IP addresses are successfully blocked.

Following image displays a sample output:

Sample output of the Block IP Address operation

operation: Unblock IP Address

Input parameters



Parameter Description
IPs IP addresses that you want to unblock. IP addresses must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the IP addresses are successfully unblocked.

Following image displays a sample output:



Sample output of the Unblock IP Address operation



operation: Block Application

Input parameters



Parameter Description
Application Name List List of application names that you want to block. Application names must be in the list format.
For example, ["TeamViewer FileTransfer", "TeamViewer Conferencing"]



Output

The JSON output contains a status message of whether or not the applications are successfully blocked.

Following image displays a sample output:

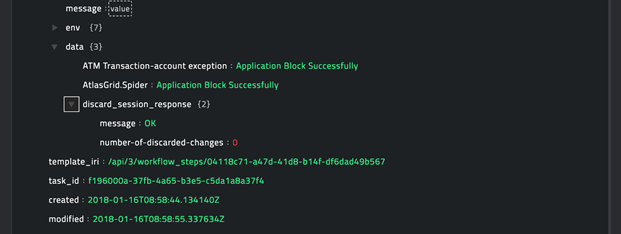

Sample output of the Block Applications operation



operation: Unblock Application

Input parameters



Parameter Description
Application Name List List of application names that you want to block. Application names must be in the list format.
For example, ["TeamViewer FileTransfer", "TeamViewer Conferencing"]



Output

The JSON output contains a status message of whether or not the applications are successfully unblocked.

Following image displays a sample output:

Sample output of the Unblock Applications operation



operation: Get Blocked URLs

Input parameters

None

Output

The JSON output contains a list of URLs that are blocked on Check Point Firewall.

Following image displays a sample output:

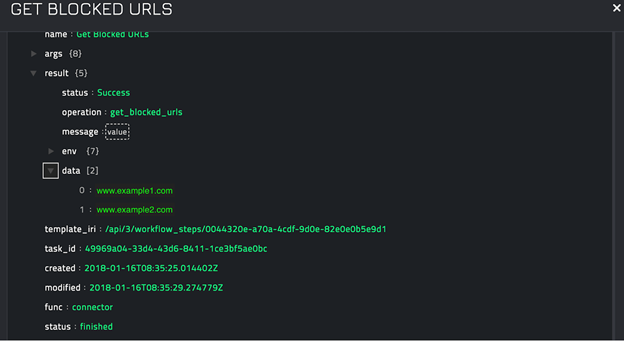

Sample output of the Get Blocked URLs operation



operation: Get Blocked IP Addresses

Input parameters

None

Output

The JSON output contains a list of IP addresses that are blocked on Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Blocked IP Addresses operation



operation: Get Blocked Applications

Input parameters

None

Output

The JSON output contains a list of application names that are blocked on Check Point Firewall.

Following image displays a sample output:

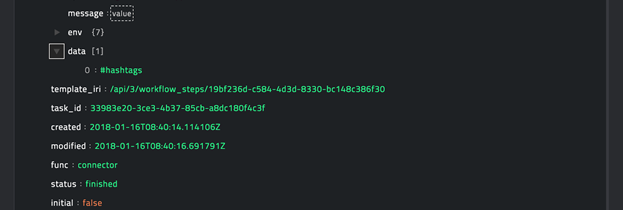

Sample output of the Get Blocked Applications operation



operation: Validate Configuration Policies

Input parameters

None

Output

The JSON output contains a status message of whether the policies mentioned in the Configuration parameters section are valid or not.

Following image displays a sample output:

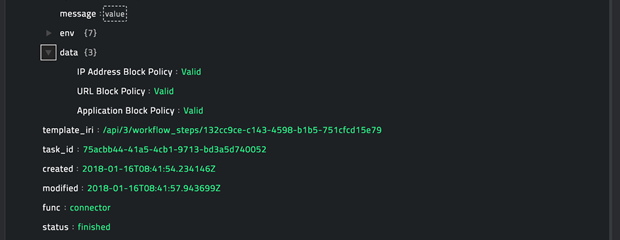

Sample output of the Validate Configuration Policies operation



operation: Get Sessions

Input parameters

None

Output

The JSON output contains a list of active sessions from Check Point Firewall.

Following image displays a sample output:

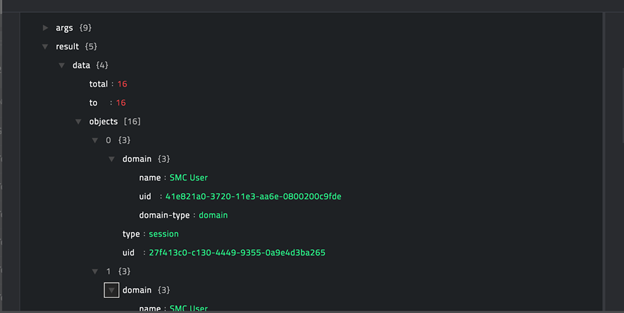

Sample output of the Get Sessions operation



operation: Get Session

Input parameters



Parameter Description
Session UID UID of the session for which you want to retrieve details from Check Point Firewall.



Output

The JSON output contains details of the session, based on the session UID that you have specified, from Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Session operation



operation: Terminate Session

Input parameters



Parameter Description
Session UID UID of the session that you want to discard on Check Point Firewall.



Output

The JSON output contains a status message of whether or not the session is terminated successfully on Check Point Firewall.

Following image displays a sample output:

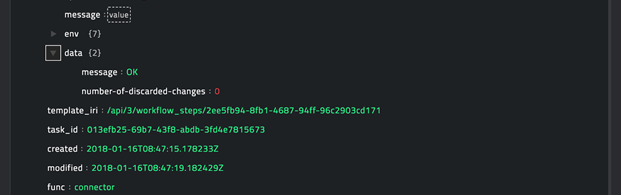

Sample output of the Terminate Session operation



operation: Get Applications Detail

Input parameters



Parameter Description
Start Index Start Index from where you want to retrieve results from Check Point Firewall.
Number of Results (0 to 500) Number of results you want to display. Maximum results that can be displayed in 500.



Output

The JSON output contains a list of applications and associated details from Check Point Firewall.

Following image displays a sample output:

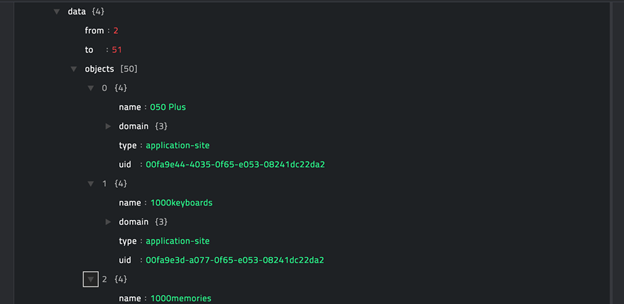

Sample output of the  Get Applications Detail operation



Included playbooks

The Sample-Check Point Firewall-1.0.0 playbook collection comes bundled with the Check Point Firewall connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Check Point Firewall connector.

  • Block Application
  • Block IP
  • Block URL
  • Validate Configuration Policies
  • Get Blocked Applications
  • Get Blocked IPs
  • Get Blocked URLs
  • Get List of Applications Detail
  • Get Sessions
  • Get Session
  • Terminate Session
  • Terminate Disconnected Sessions
  • Unblock Application
  • Unblock IP
  • Unblock URL

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during connector upgrade and delete.

About the connector

Check Point Firewall provides small, medium, and large customers with the latest data and network security protection in an integrated next-generation firewall platform, which reduces complexity and lowers the total cost of ownership. Whether you need next-generation security for your data center, enterprise, small business or home office, Check Point has a solution for you.

This document provides information about the Check Point Firewall connector, which facilitates automated interactions, with a Check Point Firewall server using FortiSOAR™ playbooks. Add the Check Point Firewall connector as a step in FortiSOAR™ playbooks and perform automated operations, such as blocking or unblocking IP addresses, URLs, or applications, or retrieving a list of blocked IP addresses, URLs, or applications.



Version information

Connector Version: 1.0.0

Compatibility with FortiSOAR™ Versions: 4.10.2-225 and later

Compatibility with Check Point Firewall Versions: R80.10 and later



Installing the connector

For the procedure to install a connector, click here.



Prerequisites to configuring the connector

Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall

  1. Log on to Check Point Firewall with the necessary credentials.
    Check Point Firewall Standard page
  2. To block or unblock IP Addresses, you must create a policy. Following steps define the process of adding a policy

    1. Create a network group.
    2. Add a new policy in Access Control, and then add the newly created network group in Source. Set the Destination As any and the Action as Drop, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your IP Block Policy configuration parameter. In our example, we have named our network group as cybersponse-block-ip, therefore, you must enter cybersponse-block-ip in the IP Block Policy field.
    3. To block or unblock URLs, you must create a policy. Following steps define the process of adding a policy
    4. Create an application or site object.
    5. Add a new policy in Access Control, and the add the newly created application or site object in Services & Applications, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your URL Block Policy configuration parameter. In our example, we have named our application or site object as cybersponse-url-block, therefore, you must enter cybersponse-url-block in the URL Block Policy field.
    6. To block or unblock Applications, you must create a policy. Following steps define the process of adding a policy
    7. Create an application or site group object.
    8. Add a new policy in Access Control, and the add the newly created application or site group object in Services & Applications, as shown in the image in step 1.
      When you are configuring your Check Point Firewall connector in FortiSOAR™, you must use the name that you have specified in this step as your Application Block Policyconfiguration parameter. In our example, we have named our application or site group object as cybersponse-app-block-group, therefore, you must enter cybersponse-app-block-group in the Application Block Policy field.
    9. Configure the firewall using the following steps:
    10. Open SmartConsole and log on to your management server. If you have a multi-domain environment, log on to the MDS domain.
    11. On the left-navigation, click Manage & Settings.
    12. Click Blades.
    13. In the Management API section, click Advanced Settings.
    14. Choose between the following options: Accept API calls from the management server only (this is the default setting), All IP addresses that can be used for GUI clients (select this if you want to allow the API server to accept requests only from IP addresses that can be used to connect with the management server using SmartConsole), or All IP addresses.
    15. Once you have made the selection, click the Publish button and use SSH to log on to the management server in the expert mode and type api restart.

Configuring the connector

For the procedure to configure a connector, click here.



Configuration parameters

In FortiSOAR™, on the Connectors page, select the Check Point Firewall connector and click Configure to configure the following parameters:



Parameter Description
Server URL IP address or Hostname of the Check Point Firewall server to which you will connect and perform automated operations.
Port Port number used for connecting to the Check Point Firewall server.
Username Username to access the Check Point Firewall server to which you will connect and perform the automated operations.
Password Password to access the Check Point Firewall server to which you will connect and perform the automated operations.
IP Block Policy (Network Group Name) List of the IP Hosts that you have specified in Check Point Firewall for blocking or unblocking IP addresses. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
URL Block Policy (Application/Site Name) Name of the URL Group that you have specified in Check Point Firewall for blocking or unblocking URLs. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
Application Block Policy (Application/Site Group Name) Name of the application group that you have specified in Check Point Firewall for blocking or unblocking applications. See the Blocking or Unblocking IP addresses, URLs, or applications in Check Point Firewall section.
Verify SSL Specifies whether the SSL certificate for the server is to be verified or not.
By default, this option is set as True.



Actions supported by the connector

The following automated operations can be included in playbooks and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:



Function Description Annotation and Category
Block URLs Blocks URLs using the URL Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_url
Containment
Unblock URLs Unblocks URLs using the URL Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_url
Remediation
Block IP Address Blocks IP addresses using the IP Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_ip
Containment
Unblock IP Address Unblocks IP addresses using the IP Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_ip
Remediation
Block Application Blocks IP addresses using the Application Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. block_app
Containment
Unblock Application Unblocks IP addresses using the Application Block Policy that you have specified while configuring the Check Point Firewall connector. See the Configuration parameters section. unblock_app
Remediation
Get Blocked URLs Retrieves a list of URLs that are blocked on Check Point Firewall. get_blocked_url
Investigation
Get Blocked IPs Retrieves a list of IP Addresses that are blocked on Check Point Firewall. get_blocked_ip
Investigation
Get Blocked Application Names Retrieves a list of application names that are blocked on Check Point Firewall. get_blocked_app
Investigation
Validate Configuration Policies Checks whether the policies that you have mentioned in the Configuration parameters section are valid or not. validate_policies
Investigation
Get Sessions Retrieves a list of active sessions from Check Point Firewall. get_sessions
Investigation
Get Session Retrieves details of the session, based on the session UID that you have specified, from Check Point Firewall. get_session
Investigation
Terminate Session Terminates a session on Check Point Firewall, based on the Session UID you have specified. terminate_sessions
Remediation
Get Applications Detail Retrieves a list of applications and associated details from Check Point Firewall. get_app_details
Investigation



operation: Block URLs

Input parameters



Parameter Description
URLs URLs that you want to block. URLs must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the URLs are successfully blocked.

Following image displays a sample output:



Sample output of the Block URLs operation



operation: Unblock URLs

Input parameters



Parameter Description
URLs URLs that you want to unblock. URLs must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the URLs are successfully unblocked.

Following image displays a sample output:



Sample output of the Unblock URLs operation



operation: Block IP Address

Input parameters



Parameter Description
IPs IP addresses that you want to block. IP addresses must be in the list format.
For example, ["X..X.X.X", "Y.Y.Y.Y"]



Output

The JSON output contains a status message of whether or not the IP addresses are successfully blocked.

Following image displays a sample output:

Sample output of the Block IP Address operation

operation: Unblock IP Address

Input parameters



Parameter Description
IPs IP addresses that you want to unblock. IP addresses must be in the list format.
For example, ["www.example1.com", "www.example2.com"]



Output

The JSON output contains a status message of whether or not the IP addresses are successfully unblocked.

Following image displays a sample output:



Sample output of the Unblock IP Address operation



operation: Block Application

Input parameters



Parameter Description
Application Name List List of application names that you want to block. Application names must be in the list format.
For example, ["TeamViewer FileTransfer", "TeamViewer Conferencing"]



Output

The JSON output contains a status message of whether or not the applications are successfully blocked.

Following image displays a sample output:



Sample output of the Block Applications operation



operation: Unblock Application

Input parameters



Parameter Description
Application Name List List of application names that you want to block. Application names must be in the list format.
For example, ["TeamViewer FileTransfer", "TeamViewer Conferencing"]



Output

The JSON output contains a status message of whether or not the applications are successfully unblocked.

Following image displays a sample output:

Sample output of the Unblock Applications operation



operation: Get Blocked URLs

Input parameters

None

Output

The JSON output contains a list of URLs that are blocked on Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Blocked URLs operation



operation: Get Blocked IP Addresses

Input parameters

None

Output

The JSON output contains a list of IP addresses that are blocked on Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Blocked IP Addresses operation



operation: Get Blocked Applications

Input parameters

None

Output

The JSON output contains a list of application names that are blocked on Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Blocked Applications operation



operation: Validate Configuration Policies

Input parameters

None

Output

The JSON output contains a status message of whether the policies mentioned in the Configuration parameters section are valid or not.

Following image displays a sample output:



Sample output of the Validate Configuration Policies operation



operation: Get Sessions

Input parameters

None

Output

The JSON output contains a list of active sessions from Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Sessions operation



operation: Get Session

Input parameters



Parameter Description
Session UID UID of the session for which you want to retrieve details from Check Point Firewall.



Output

The JSON output contains details of the session, based on the session UID that you have specified, from Check Point Firewall.

Following image displays a sample output:



Sample output of the Get Session operation



operation: Terminate Session

Input parameters



Parameter Description
Session UID UID of the session that you want to discard on Check Point Firewall.



Output

The JSON output contains a status message of whether or not the session is terminated successfully on Check Point Firewall.

Following image displays a sample output:



Sample output of the Terminate Session operation



operation: Get Applications Detail

Input parameters



Parameter Description
Start Index Start Index from where you want to retrieve results from Check Point Firewall.
Number of Results (0 to 500) Number of results you want to display. Maximum results that can be displayed in 500.



Output

The JSON output contains a list of applications and associated details from Check Point Firewall.

Following image displays a sample output:



Sample output of the  Get Applications Detail operation



Included playbooks

The Sample-Check Point Firewall-1.0.0 playbook collection comes bundled with the Check Point Firewall connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Check Point Firewall connector.

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during connector upgrade and delete.
