Microsoft Office 365 Audit

• What is Discovered and Monitored
• Event Types
• Reports
• Configuration in Office 365 Audit
• Configuration in FortiSIEM
• Sample Events for Audit

What is Discovered and Monitored

Office 365 Activity Type	Operation
File and folder activities	FileAccessed, FileCheckedIn, FileCheckedOut, FileCopied, FileDeleted,FileCheckOutDiscarded, FileDownloaded, FileModified, FileMoved, FileRenamed, FileRestored, FileUploaded
Sharing and access request activities	AccessRequestAccepted, SharingInvitationAccepted, CompanyLinkCreated, AccessRequestCreated, AnonymousLinkCreated, SharingInvitationCreated, AccessRequestDenied, CompanyLinkRemoved, AnonymousLinkRemoved, SharingSet, AnonymousLinkUpdated, AnonymousLinkUsed, SharingRevoked, CompanyLinkUsed, SharingInvitationRevoked
Synchronization activities	ManagedSyncClientAllowed, UnmanagedSyncClientBlocked, FileSyncDownloadedFull, FileSyncDownloadedPartial, FileSyncUploadedFull, FileSyncUploadedPartial
Site administration activities	ExemptUserAgentSet, SiteCollectionAdminAdded, AddedToGroup, AllowGroupCreationSet, CustomizeExemptUsers, SharingPolicyChanged, GroupAdded, SendToConnectionAdded, SiteCollectionCreated, GroupRemoved, SendToConnectionRemoved, PreviewModeEnabledSet, LegacyWorkflowEnabledSet, OfficeOnDemandSet, NewsFeedEnabledSet, PeopleResultsScopeSet, SitePermissionsModified, RemovedFromGroup, SiteRenamed, SiteAdminChangeRequest, HostSiteSet, GroupUpdated
Exchange mailbox activities	Copy, Create, SoftDelete, Move, MoveToDeletedItems, HardDelete, SendAs, SendOnBehalf, Update, MailboxLogin
Sway activities	SwayChangeShareLevel, SwayCreate, SwayDelete, SwayDisableDuplication, SwayDuplicate, SwayEdit, EnableDuplication, SwayRevokeShare, SwayShare, SwayExternalSharingOff, SwayExternalSharingOn, SwayServiceOff, SwayServiceOn, SwayView
User administration activities	Add user, Change user license, Change user password, Delete user, Reset user password, Set force change user password, Set license properties, Update user
Group administration activities	Add group, Add member to group, Delete group, Remove member from group, Update group
Application administration activities	Add delegation entry, Add service principal, Add service principal credentials, Remove delegation entry, Remove service principal, Remove service principal credentials, Set delegation entry
Role administration activities	Add role member to role, Remove role member from role, Set company contact information
Directory administration activities	Add domain to company, Add partner to company, Remove domain from company, Remove partner from company, Set company information, Set domain authentication, Set federation settings on domain, Set password policy, Set DirSyncEnabled flag on company, Update domain, Verify domain, Verify email verified domain

Event Types

In ADMIN > Device Support > Event Types, search for "MS_Office365" in the Search field to see the event types associated with Office 365.

Reports

There are many reports defined in RESOURCES > Reports > Device > Application > Document Mgmt. Search for "Office365" in the main content panel Search... field.

Configuration in Office 365 Audit

• Enable Office 365 Audit Log Search
• Create the Office 365 API Credential

Enable Office 365 Audit Log Search

To be able to search audit logs, you must first enable Office 365 audit log search. For instructions on how to enable audit log search, see https://docs.microsoft.com/en-us/office365/securitycompliance/turn-audit-log-search-on-or-off.

To use the Office 365 Management Activity API to access auditing data for your organization, you must enable audit log search in the Security & Compliance Center.

If you do not enable audit log search, you cannot access auditing data for your organization.

Before you can enable or disable audit log search for your Microsoft 365 organization, you must be assigned the Audit Logs role in the Exchange admin center.

Follow these steps to assign the Audit Logs role and enable audit log search for your organization.

1. Log in to Microsoft Office Online: https://login.microsoftonline.com.

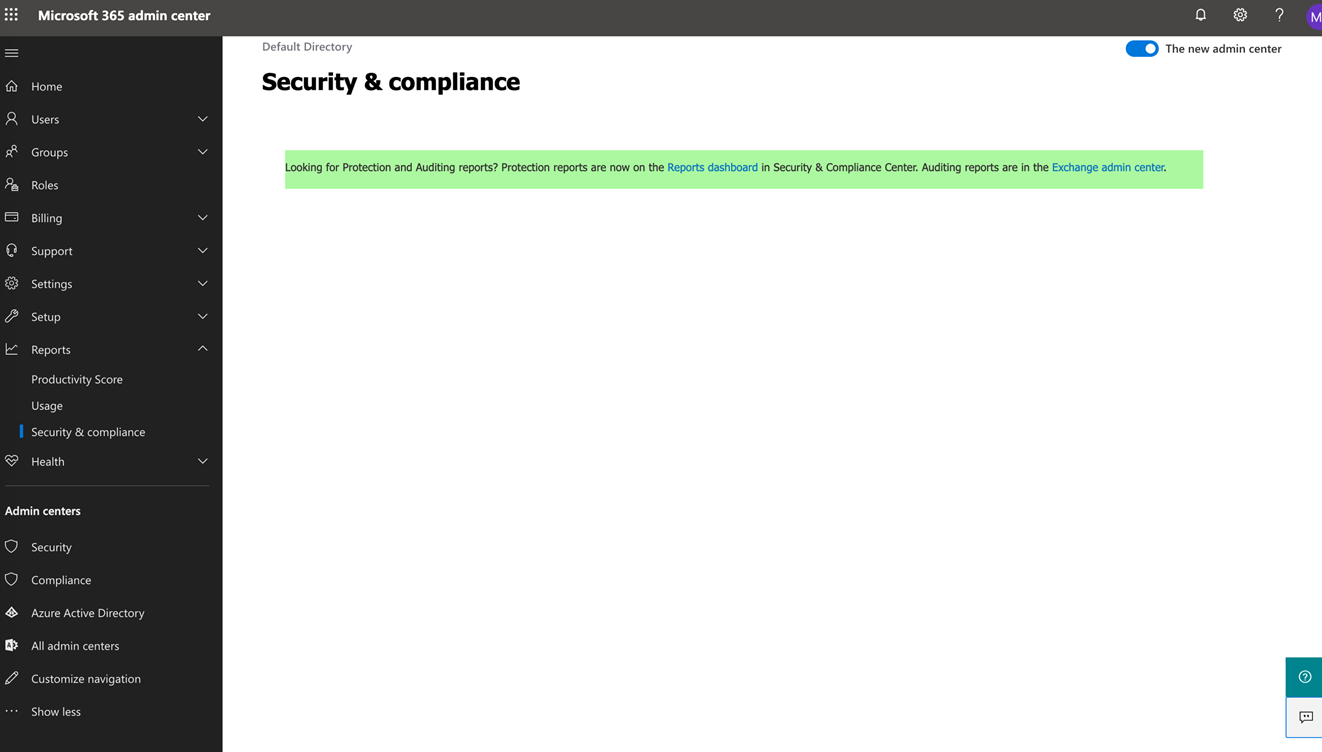

2. Click Admin > Security & compliance.



3. Click Exchange admin center.

   If you receive the following alert, you must enable Office 365 Exchange Online before proceeding. In this case, go to Step 4. Otherwise, go to Step 6.



4. Click Admin > Purchase services.



5. Select one of Microsoft 365 services. In this example, Microsoft 365 Business Premium Trial is selected.



6. Click Admin > Security & compliance > Exchange admin center.



7. Click Exchange admin center > permissions > admin roles > New to create a new role.



8. Select Audit Logs Roles and add the members you want to add the group. Click Save.



9. The Audit Log role will display in the Exchange admin center > permissions > admin roles table.



10. Go back to the Microsoft 365 Admin center.
11. Click Security & compliance > Report dashboard.

    When you first go into this page, it will ask you to enable Audit log. After you enable it, the page will display the Search button.



Create the Office 365 API Credential

Follow these steps to create the Office 365 API credential.

1. Login to https://portal.azure.com.
2. Click All Services.
3. Click Azure Active Directory.
4. Click App Registrations (on the right panel).
5. Click New registration and enter the following information:

   Name: FSM

   Supported Account Types: Select Accounts in any organizational directory (Any Azure AD directory – Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox).

   Redirect URI: https://your.internal.fsm.ip

6. Click Register:

   Copy the Application (client) ID to a text editor, you'll need this when entering Office 365 Credentials in FortiSIEM.

   Copy the Directory (tenant) ID to a text editor, you'll need this when entering Office 365 Credentials in FortiSIEM.

7. Click Certificates & secrets (on the right panel).
8. New client secret:

   Description: FSM

   Expires in: 2 years

   Copy the value (for example: AC83J.6_nobD:G1Q=DJe/hFiB3BP4+a) to a text editor. You will need this value when entering Office 365 Credentials in FortiSIEM.

9. Go to API permissions (left panel).
10. Click Add a permission.
11. Select Office 365 Management APIs.
12. Click Application permissions and expand all.
13. Select all permissions with "Read" access (we don't want to write). Click Add permissions.

    You will see a warning: "Permissions have changed." Users and/or admins will have to consent even if they have already done so previously.

    We'll need to approve all these permission grants.

14. Click grant admin consent and select Yes when you see the Do you want to grant consent for the requested permissions for all accounts in your_organization? alert. This will update any existing admin consent records this application already has to match what is listed below.



Sample API Permission

Configuration in FortiSIEM

Configuration is done in two parts. Follow the steps in these two sections to configure your FortiSIEM.

• Define Office 365 Management Credential in FortiSIEM

• Create IP Range to Credential Association and Test Connectivity

Define Office 365 Management Credential in FortiSIEM

Complete these steps in the FortiSIEM UI by first logging in to the FortiSIEM Supervisor node.

1. Go to the ADMIN > Setup > Credentials tab.
2. In Step 1: Enter Credentials:
   1. Follow the instructions in “Setting Credentials“ in the User's Guide to create a new credential.
   2. Enter these settings in the Access Method Definition dialog box and click Save:

Settings	Description
Name	Enter a name for the credential
Device Type	Microsoft Office365
Access Protocol	Office 365 Mgmt Activity API
Tenant ID	Use the ID from Azure Login URL. See Step 5 in Create Office 365 API Credential.
Password config	If you select Manual, take the following steps: For Client ID, use the value obtained in Step 5 in Create Office 365 API Credential. For Client Secret, use the value obtained in Step 7 in Create Office 365 API Credential. For CyberArk credential method, see CyberArk Password Configuration.
Organization	The organization the device belongs to.
Description	Description of the device.

Create IP Range to Credential Association and Test Connectivity

From the FortiSIEM Supervisor node, take the following steps.

1. In Step 2: Enter IP Range to Credential Associations, click New to create a new association.
   1. Enter "manage.office.com" in the IP/Host Name field.
   2. Select the name of the credential created in the Define Office 365 Management Credential from the Credentials drop-down list.
   3. Click Save.
2. Select the entry just created and click the Test drop-down list and select Test Connectivity without Ping. A pop up will appear and show the Test Connectivity results.
3. Go to ADMIN > Setup > Pull Events and make sure an entry is created for Office 365 Log Collection.



Sample Events for Audit

[OFFICE365_EVENT_DATA] = {"Actor":[{"ID":"dtomic@my.company.org","Type":5},{"ID":"10030000873CEE9F","Type":3},{"ID":"18ed3507‑a475‑4ccb‑b669‑d66bc9f2a36e","Type":2},{"ID":"User_68d76168‑813d‑4b9f‑88cd‑37b66a5b3841","Type":2},{"ID":"68d76168‑813d‑4b9f‑88cd‑37b66a5b3841","Type":2},{"ID":"User","Type":2}],"ActorContextId":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318","ActorIpAddress":"<null>","AzureActiveDirectoryEventType":1,"ClientIP":"<null>","CreationTime":"2019‑07‑23T13:16:05UTC","ExtendedProperties":[{"Name":"actorContextId","Value":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318"},{"Name":"actorObjectId","Value":"68d76168‑813d‑4b9f‑88cd‑37b66a5b3841"},{"Name":"actorObjectClass","Value":"User"},{"Name":"actorUPN","Value":"dtomic@my.company.org"},{"Name":"actorAppID","Value":"18ed3507‑a475‑4ccb‑b669‑d66bc9f2a36e"},{"Name":"actorPUID","Value":"10030000873CEE9F"},{"Name":"teamName","Value":"MSODS."},{"Name":"targetContextId","Value":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318"},{"Name":"targetObjectId","Value":"02232019‑4557‑45d6‑9630‑f78694bc8341"},{"Name":"extendedAuditEventCategory","Value":"Application"},{"Name":"targetName","Value":"FSM"},{"Name":"targetIncludedUpdatedProperties","Value":"[\"AppAddress\",\"AppId\",\"AvailableToOtherTenants\",\"DisplayName\",\"RequiredResourceAccess\"]"},{"Name":"correlationId","Value":"a854ecc6‑31d6‑4fea‑8d56‑aeed05aa1174"},{"Name":"version","Value":"2"},{"Name":"additionalDetails","Value":"{}"},{"Name":"resultType","Value":"Success"},{"Name":"auditEventCategory","Value":"ApplicationManagement"},{"Name":"nCloud","Value":"<null>"},{"Name":"env_ver","Value":"2.1"},{"Name":"env_name","Value":"#Ifx.AuditSchema#IfxMsods.AuditCommonEvent"},{"Name":"env_time","Value":"2019‑07‑23T13:16:05.0208099Z"},{"Name":"env_epoch","Value":"64BOV"},{"Name":"env_seqNum","Value":"25454285"},{"Name":"env_popSample","Value":"0"},{"Name":"env_iKey","Value":"ikey"},{"Name":"env_flags","Value":"257"},{"Name":"env_cv","Value":"##17a913a8‑943a‑42f3‑b8ad‑2ea3bc4bf927_00000000‑0000‑0000‑0000‑000000000000_17a913a8‑943a‑42f3‑b8ad‑2ea3bc4bf927"},{"Name":"env_os","Value":"<null>"},{"Name":"env_osVer","Value":"<null>"},{"Name":"env_appId","Value":"restdirectoryservice"},{"Name":"env_appVer","Value":"1.0.11219.0"},{"Name":"env_cloud_ver","Value":"1.0"},{"Name":"env_cloud_name","Value":"MSO‑AM5R"},{"Name":"env_cloud_role","Value":"restdirectoryservice"},{"Name":"env_cloud_roleVer","Value":"1.0.11219.0"},{"Name":"env_cloud_roleInstance","Value":"AM5RRDSR582"},{"Name":"env_cloud_environment","Value":"PROD"},{"Name":"env_cloud_deploymentUnit","Value":"R5"}],"Id":"fc12de96‑0cbc‑4618‑9c8f‑cc8ab7891e3b","ModifiedProperties":[{"Name":"AppAddress","NewValue":"[\r\n {\r\n \"AddressType\": 0,\r\n \"Address\": \"https://10.222.248.17\",\r\n \"ReplyAddressClientType\": 1\r\n }\r\n]","OldValue":"[]"},{"Name":"AppId","NewValue":"[\r\n \"0388f2da‑dbcc‑4506‑ba57‑a85c578297c0\"\r\n]","OldValue":"[]"},{"Name":"AvailableToOtherTenants","NewValue":"[\r\n false\r\n]","OldValue":"[]"},{"Name":"DisplayName","NewValue":"[\r\n \"FSM\"\r\n]","OldValue":"[]"},{"Name":"RequiredResourceAccess","NewValue":"[\r\n {\r\n \"ResourceAppId\": \"00000003‑0000‑0000‑c000‑000000000000\",\r\n \"RequiredAppPermissions\": [\r\n {\r\n \"EntitlementId\": \"e1fe6dd8‑ba31‑4d61‑89e7‑88639da4683d\",\r\n \"DirectAccessGrant\": false,\r\n \"ImpersonationAccessGrants\": [\r\n 20\r\n ]\r\n }\r\n ],\r\n \"EncodingVersion\": 1\r\n }\r\n]","OldValue":"[]"},{"Name":"Included Updated Properties","NewValue":"AppAddress, AppId, AvailableToOtherTenants, DisplayName, RequiredResourceAccess","OldValue":""}],"ObjectId":"Not Available","Operation":"Add application.","OrganizationId":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318","RecordType":8,"ResultStatus":"Success","SupportTicketId":"","Target":[{"ID":"Application_02232019‑4557‑45d6‑9630‑f78694bc8341","Type":2},{"ID":"02232019‑4557‑45d6‑9630‑f78694bc8341","Type":2},{"ID":"Application","Type":2},{"ID":"FSM","Type":1}],"TargetContextId":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318","TenantId":"653e32e8‑fb2d‑41aa‑8841‑90f05b340318","UserId":"dtomic@my.company.org","UserKey":"10030000873CEE9F@my.company.org","UserType":0,"Version":1,"Workload":"AzureActiveDirectory","phCustId":1}
