Configure IP addresses on an aggregate interface

To configure IP addresses on an aggregate interface using the GUI:

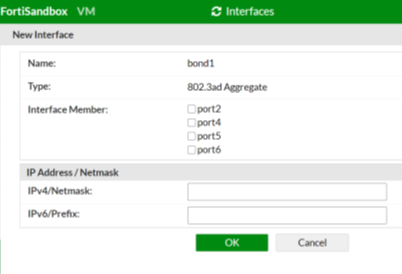

1. Go to System > Interfaces and click Create New.



2. Select the Interface Members and set up the IPv4 address and netmask.
3. Click OK.

   A new interface called bond1 is created.

To configure IP addresses on an aggregate interface using the CLI:

1. Use the show command to display information about all interfaces.
2. Enter the following command.

   hc-settings  -si –ibond1 –a<External IP/NetMask>

3. Enter the show command again to see the new external IP address.

   In the GUI, System > Interfaces also displays the new external IP address.
