Default automation stitches

The following default automation stitches are included in FortiProxy:

• Compromised Host Quarantine

• Network Down

• HA Failover

• Incoming Webhook Quarantine

• Reboot

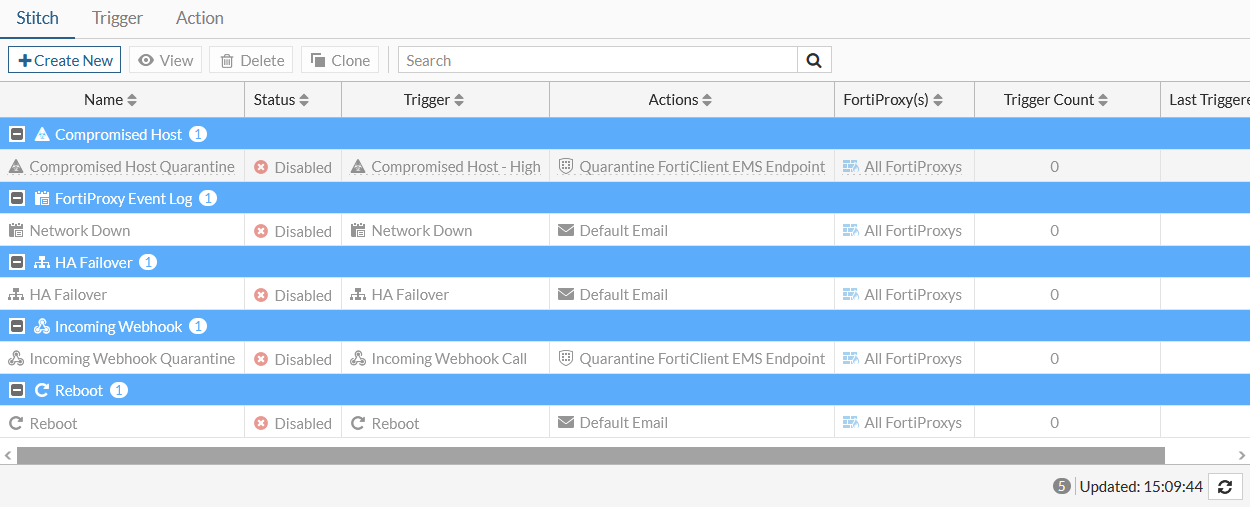

To view and edit the automation stitches in the GUI, go to Security Fabric > Automation and select the Stitch tab..

CLI configurations

Compromised Host Quarantine

config system automation-action
    edit "Quarantine FortiClient EMS Endpoint"
        set description "Default automation action configuration for quarantining a FortiClient EMS endpoing device."
        set action-type quarantine-forticlient
    next
end

config system automation-trigger
    edit "Compromised Host - High"
        set description "Default automation trigger configuration for when a high severity compromised host is detected."
    next
end

config system automation-stitch
    edit "Compromised Host Quarantine"
        set description "Default automation stitch to quarantine a high severity compromised host on FortiClient EMS."
        set status disable
        set trigger "Compromised Host - High"
        config actions
            edit 1
                set action "Quarantine FortiClient EMS Endpoint"
            next
        end
    next
end

Network Down

config system automation-action
     edit "Default Email"
        set description "Default automation action configuration for sending an email with basic information on the log event."
        set action-type email
        set email-subject "%%log.logdesc%%"
    next
end

config system automation-trigger
    edit "Network Down"
        set description "Default automation trigger configuration for when a network connection goes down."
        set event-type event-log
        set logid 20099
        config fields
            edit 1
                set name "status"
                set value "DOWN"
            next
        end
    next
end

config system automation-stitch
    edit "Network Down"
        set description "Default automation stitch to send an email when a network goes down."
        set status disable
        set trigger "Network Down"
        config actions
            edit 1
                set action "Default Email"
            next
        end
    next
end

HA Failover

config system automation-action
    edit "Default Email"
        set description "Default automation action configuration for sending an email with basic information on the log event."
        set action-type email
        set email-subject "%%log.logdesc%%"
    next
end

config system automation-trigger
    edit "HA Failover"
        set description "Default automation trigger configuration for when an HA failover occurs."
        set event-type ha-failover
    next
end

config system automation-stitch
    edit "HA Failover"
        set description "Default automation stitch to send an email when a HA failover is detected."
        set status disable
        set trigger "HA Failover"
        config actions
            edit 1
                set action "Default Email"
            next
        end
    next
end

Incoming Webhook Quarantine

config system automation-action
    edit "Quarantine FortiClient EMS Endpoint"
        set description "Default automation action configuration for quarantining a FortiClient EMS endpoing device."
        set action-type quarantine-forticlient
    next
end

config system automation-trigger
    edit "Incoming Webhook Call"
        set description "Default automation trigger configuration for an incoming webhook."
        set event-type incoming-webhook
    next
end

config system automation-stitch
    edit "Incoming Webhook Quarantine"
        set description "Default automation stitch to quarantine a provided MAC address on FortiClient EMS using an Incoming Webhook."
        set status disable
        set trigger "Incoming Webhook Call"
        config actions
            edit 1
                set action "Quarantine FortiClient EMS Endpoint"
            next
        end
    next
end

Reboot

config system automation-action
    edit "Default Email"
        set description "Default automation action configuration for sending an email with basic information on the log event."
        set action-type email
        set email-subject "%%log.logdesc%%"
    next
end

config system automation-trigger
    edit "Reboot"
        set description "Default automation trigger configuration for when a FortiProxy is rebooted."
        set event-type reboot
    next
end

config system automation-stitch
    edit "Reboot"
        set description "Default automation stitch to send an email when a FortiProxy is rebooted."
        set status disable
        set trigger "Reboot"
        config actions
            edit 1
                set action "Default Email"
            next
        end
    next
end
