Proxy chaining over IPsec tunnel

You can configure proxy chaining over an IPsec VPN tunnel to ensure that all traffic forwarded from the inside to the outside proxy is encrypted.

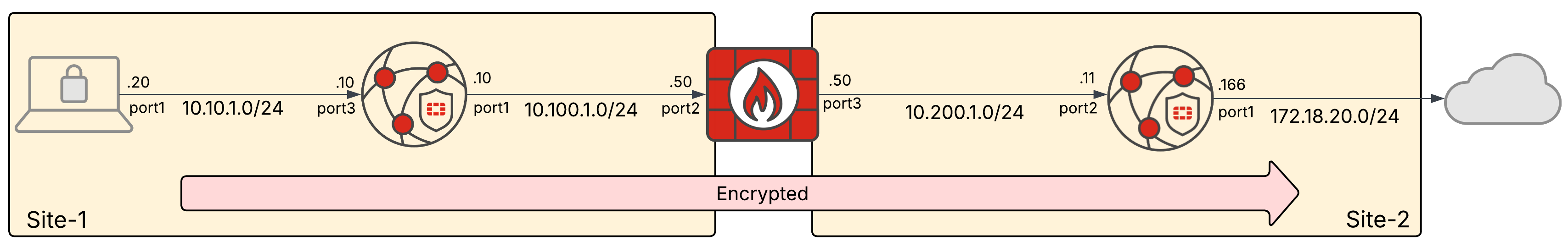

Network Topology

To configure an IPsec VPN tunnel:

Refer to Basic site-to-site VPN with pre-shared key to create the Site-1 and Site-2 IPsec site-to-site tunnels based on the network topology.

To configure Site-2:

1. Configure the interface as follows:

   config system interface

   edit "port1" <<-outside-interface

   set vdom "root"

   set ip 172.18.20.166 255.255.255.0

   set allowaccess ping https ssh snmp http telnet fgfm radius-acct probe-response fabric ftm speed-test

   set type physical

   set explicit-web-proxy enable

   set explicit-ftp-proxy enable

   set alias "Site-2-External"

   set snmp-index 1

   next

   edit "port2" <<-inside-interface

   set vdom "root"

   set ip 10.200.1.11 255.255.255.0

   set allowaccess ping https ssh snmp http telnet fgfm radius-acct probe-response fabric ftm speed-test

   set type physical

   set explicit-web-proxy enable

   set explicit-ftp-proxy enable

   set alias "Site-2-Internal"

   set snmp-index 3

   next

   edit "to-site-1"

   set vdom "root"

   set type tunnel

   set explicit-web-proxy enable

   set explicit-ftp-proxy enable

   set snmp-index 4

   set interface "port2"

   next

   end

2. Configure the IPsec tunnel as follows:

   config vpn ipsec phase1-interface

   edit "to-site-1"

   set interface "port2" <<- inside-interface

   set peertype any

   set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1

   set comments "VPN: to-site-1 (Created by VPN wizard)"

   set remote-gw 10.100.1.10 <<- outside interface of Site-1 device

   set psksecret ENC Im/HjW6abJFHgpclP7XYqJcreuVNxJZLDT32LOJDwXnNprNtQJ9n3N2VDM6Q9kxuviUPaiRA9Wq+dodgs5PKhhmmE2LzGMlsi6kNas8ZMw6Q1uF3iJkLcvzZap7M9m5+8Ay8zMzR97m4zpgt80RculvXt26q6pU7UIsjTOtf1FDnnf7T0RCzU4n/WiTe2LbUJ2VKs1lmMjY3dkVA

   next

   end

   config vpn ipsec phase2-interface

   edit "to-site-1"

   set phase1name "to-site-1"

   set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305

   set comments "VPN: to-site-1 (Created by VPN wizard)"

   set src-addr-type name

   set dst-addr-type name

   set src-name "to-site-1_local"

   set dst-name "to-site-1_remote"

   next

   end

3. Configure the static route as follows:

   • Route to the outside interface/subnet of the Site-1 proxy via the inside interface

   • Route to the Site-1 inside explicit proxy address/subnet via the VPN tunnel

   • Default route via the outside interface

   config router static

   edit 1

   set gateway 172.18.20.1

   set device "port1"

   next

   edit 2

   set dst 10.100.1.0 255.255.255.0

   set gateway 10.200.1.50

   set device "port2"

   next

   edit 3

   set device "to-site-1"

   set comment "VPN: to-site-1 (Created by VPN wizard)"

   set dstaddr "to-site-1_remote"

   next

   end

4. Configure the explicit proxy as follows:

   config web-proxy explicit-proxy

   edit "web-proxy"

   set status enable

   set interface "to-site-1"

   set http-incoming-port 8080

   set https-incoming-port 8080

   next

   end

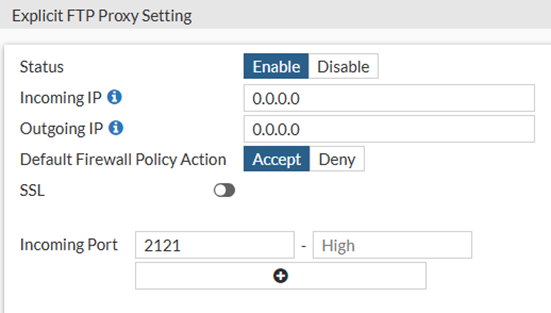

5. Configure the explicit FTP proxy as follows:

   config ftp-proxy explicit

   set status enable

   set incoming-port 2121

   set outgoing-ip 0.0.0.0

   set sec-default-action accept

   end



6. Configure the firewall proxy policy as follows:

   config firewall policy

   edit 1

   set type explicit-web

   set name "Upstream proxy in Site-2"

   set uuid f8aac3fa-1005-51f0-f549-57daac806021

   set dstintf "port1" <<-outside interface

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set service "webproxy"

   set explicit-web-proxy "web-proxy"

   set webproxy-profile "XFF-Site-2"

   set logtraffic all

   set log-http-transaction enable

   next

   edit 3

   set type explicit-ftp

   set name "ftp-proxy-policy"

   set uuid 3a1cbbfa-10aa-51f0-c416-4cd82a72e04f

   set dstintf "port1" <<-outside interface

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set logtraffic all

   next

   end

7. Configure DNS service as follows:

   config system dns-server

   edit "to-site-1"

   next

   end

To configure Site-1:

1. Configure the interface as follows:

   config system interface

   edit "port2" <<-outside-interface

   set vdom "root"

   set ip 10.100.1.10 255.255.255.0

   set allowaccess ping https ssh snmp http telnet fgfm radius-acct probe-response fabric ftm speed-test

   set type physical

   set alias "to_site-2"

   set snmp-index 3

   next

   edit "port3" <<-inside-interface

   set vdom "root"

   set ip 10.10.1.10 255.255.255.0

   set allowaccess ping https ssh snmp http telnet fgfm radius-acct probe-response fabric ftm speed-test

   set type physical

   set explicit-web-proxy enable

   set explicit-ftp-proxy enable

   set snmp-index 4

   next

   edit "to-site-2"

   set vdom "root"

   set type tunnel

   set snmp-index 5

   set interface "port2"

   next

   end

2. Configure the IPsec tunnel as follows:

   config vpn ipsec phase1-interface

   edit "to-site-2"

   set interface "port2" <<-outside-interface

   set peertype any

   set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1

   set comments "VPN: to-site-2 (Created by VPN wizard)"

   set remote-gw 10.200.1.11 <<-inside interface of Site-2 device

   set psksecret ENC MAmDuLLv4/T5ydYd4qglW6fcNyfbSlq1LMl25rDwAaFe4XhXwW8Ryec7fRXHagbGF4Dvn2Ccr4wYdSjIYkbDY9Dwz3wEuYCXKHzqHx+FST1oU5DQb4KpcPsR7BgGjShNkeLVnV1HUTUhpIJDyxJzb04wMu0OFljY6ru4rNcMUy7lxxUreJgVoMdCbWLrCcETY+TDyFlmMjY3dkVA

   next

   end

   config vpn ipsec phase2-interface

   edit "to-site-2"

   set phase1name "to-site-2"

   set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305

   set comments "VPN: to-site-2 (Created by VPN wizard)"

   set src-addr-type name

   set dst-addr-type name

   set src-name "to-site-2_local"

   set dst-name "to-site-2_remote"

   next

   end

3. Configure the static route as follows:

   • Route to the inside interface/subnet of the Site-2 proxy via the outside interface

   • Route to the outside interface/subnet of the Site-2 proxy via the VPN tunnel

   • Configure "preferred-source" as Site-1 FPX inside interface ip (10.10.1.10) under VPN tunnel route.

   config router static

   edit 1

   set dst 10.200.1.0 255.255.255.0

   set gateway 10.100.1.50

   set device "port2"

   next

   edit 2

   set preferred-source 10.10.1.10

   set device "to-site-2"

   set comment "VPN: to-site-2 (Created by VPN wizard)"

   set dstaddr "to-site-2_remote"

   next

   end

4. Configure the explicit policy as follows:

   config web-proxy explicit-proxy

   edit "web-proxy"

   set status enable

   set interface "port3"

   set http-incoming-port 8080

   set https-incoming-port 8080

   set incoming-ip 10.10.1.10 <<-port3 ip address

   next

   end

5. Configure the explicit FTP proxy as follows:

   config ftp-proxy explicit

   set status enable

   set incoming-port 2121

   set outgoing-ip 0.0.0.0

   set sec-default-action accept

   end



6. Configure the forward server as follows:

   config web-proxy forward-server

   edit "http-to-site-2"

   set ip 172.18.20.166 <<-outside interface IP address of Site-2 proxy

   set port 8080

   set protocol http

   next

   edit "ftp-to-site-2"

   set ip 172.18.20.166 <<- outside interface IP address of Site-2 proxy

   set port 2121

   set protocol ftp

   next

   end

7. Configure the server list as follows:

   config web-proxy url-match

   edit "www.fortinet.com"

   set explicit-web-proxy "web-proxy"

   set url-pattern "www.fortinet.com"

   set forward-server "http-to-site-2"

   next

   end

8. Configure the firewall proxy server as follows:

   config firewall policy

   edit 4

   set type explicit-ftp

   set name "ftp-proxy-chaining"

   set uuid a36d1baa-10a9-51f0-7706-d06775cd89be

   set dstintf "to-site-2"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set logtraffic all

   set logtraffic-start enable

   set webproxy-forward-server "ftp-to-site-2"

   next

   edit 1

   set type explicit-web

   set name "server-url-match-forward"

   set uuid eb97a0d0-1004-51f0-01f6-2c7c369110d4

   set dstintf "to-site-2"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set service "webproxy"

   set explicit-web-proxy "web-proxy"

   set logtraffic all

   set log-http-transaction enable

   next

   end

9. Configure FortiGuard as follows:

   config system autoupdate tunneling

   set status enable

   set address "172.18.20.166"

   set port 8080

   end
