FortiLAN Cloud

Follow this procedure on the FortiLAN Cloud GUI to configure captive portal.

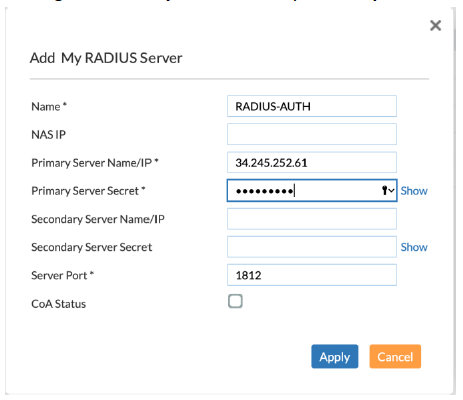

1. Select a configured AP Network and navigate to Configure > My RADIUS Server to configure a RADIUS profile. Click Add My RADIUS Server.
   Update the configuration parameters as required.
2. Enter the Primary Server Name/IP –34.245.252.61/radius.presence.fortinet.com.
3. The Primary Server Secret should be the same as the RADIUS Secret Key configured on the FortiPresence GUI (Portal > Portal Settings > Radius Clients). Click Apply and update the configuration parameters as required.
   Note: Configure the Project Secret Key to fortipresence for all FortiLAN Cloud setups.

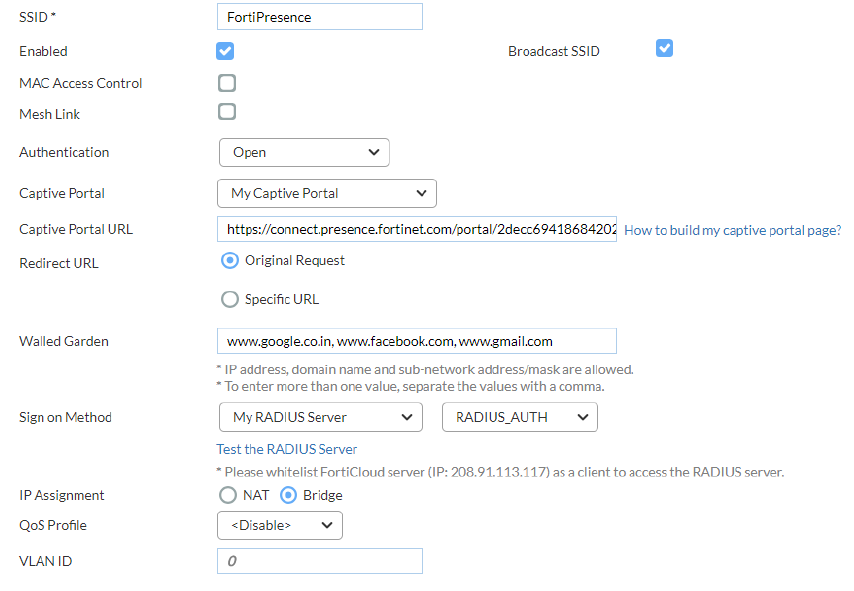

4. Navigate to Configure > SSIDs to create an SSID. Configure the Captive Portal as My Captive Portal and enter the Captive Portal URL, (Captive Portal URL copied from the FortiPresence GUI – Portal Management > Radius Configuration).
5. Set the Redirect URL to Specific URL and enter https://connect.presence.fortinet.com/portal/success. The actual redirect option can be specified while creating the portal on FortiPresence GUI - Adding a New portal.
6. Enter the FQDN based exclusions in the Walled Garden list. A comma separated list with character limitation is supported.
7. Select My RADIUS Server and specify the RADIUS profile created earlier in this procedure as the Sign on Method.

8. Click Next and update the configuration parameters as required. Click Apply.
