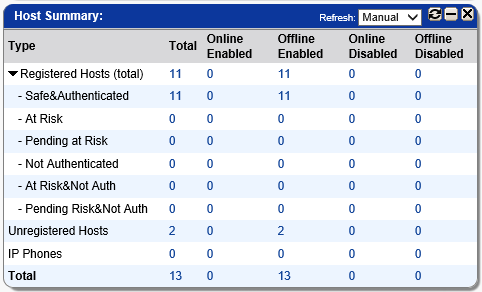

Host summary

This dashboard panel displays a table of information about the hosts on your network. Click the number in the Total column to display that list of hosts in the Host View.

Field

Definition

Registered Hosts

The total number of registered hosts. Total includes hosts registered to users and hosts registered as devices that are managed in Host View or in both Host View and Topology View. The total is broken out by the number that are Online, Offline, in Violation, Disabled, Online at Risk, and Offline At Risk.

Click the expansion arrow to view registered hosts broken down by the host state. States include:

Safe & Authenticated — Hosts that have not failed a scan and the associated user has authenticated against the local database, RADIUS or LDAP directory.

At Risk — Host has failed a scan or has manually been marked at risk.

Pending At Risk — Host has failed a scan but its At Risk status is delayed based on the delayed remediation setting in the Endpoint Compliance Policy used.

Not Authenticated — Associated user has not authenticated against the local database, RADIUS or LDAP directory.

At Risk & Not Authenticated — Host has failed a scan or has been marked At Risk and the associated user has not authenticated against the local database, RADIUS or LDAP directory.

Pending Risk & Not Authenticated — Host has failed a scan but its At Risk status is delayed based on the delayed remediation setting in the Endpoint Compliance Policy used and the associated user has not authenticated against the local database, RADIUS or LDAP directory.

Unregistered Hosts

The total number of unregistered hosts. The total is broken out by the number that are Online, Offline, in Violation, Disabled, Online at Risk, and Offline At Risk.

IP Phones

Total number of IP Phones on the network. Total is broken out by the number that are online and offline.

Total

Shows the combined total for all hosts registered and rogues.

Host summary

This dashboard panel displays a table of information about the hosts on your network. Click the number in the Total column to display that list of hosts in the Host View.

Field

Definition

Registered Hosts

The total number of registered hosts. Total includes hosts registered to users and hosts registered as devices that are managed in Host View or in both Host View and Topology View. The total is broken out by the number that are Online, Offline, in Violation, Disabled, Online at Risk, and Offline At Risk.

Click the expansion arrow to view registered hosts broken down by the host state. States include:

Safe & Authenticated — Hosts that have not failed a scan and the associated user has authenticated against the local database, RADIUS or LDAP directory.

At Risk — Host has failed a scan or has manually been marked at risk.

Pending At Risk — Host has failed a scan but its At Risk status is delayed based on the delayed remediation setting in the Endpoint Compliance Policy used.

Not Authenticated — Associated user has not authenticated against the local database, RADIUS or LDAP directory.

At Risk & Not Authenticated — Host has failed a scan or has been marked At Risk and the associated user has not authenticated against the local database, RADIUS or LDAP directory.

Pending Risk & Not Authenticated — Host has failed a scan but its At Risk status is delayed based on the delayed remediation setting in the Endpoint Compliance Policy used and the associated user has not authenticated against the local database, RADIUS or LDAP directory.

Unregistered Hosts

The total number of unregistered hosts. The total is broken out by the number that are Online, Offline, in Violation, Disabled, Online at Risk, and Offline At Risk.

IP Phones

Total number of IP Phones on the network. Total is broken out by the number that are online and offline.

Total

Shows the combined total for all hosts registered and rogues.
