Microsoft Teams

Microsoft Teams is a group collaboration tool that Microsoft recent released that is similar in nature to Slack and HipChat. Like other collaboration tools, it is most effective to have all of your alerts sent to Teams in order to stay up to date on infrastructure performance.

To set up the integration, you need to do the following:

  1. Add an Incoming Webhook connector to a Teams channel.

  2. Set up the integration in FortiMonitor.

These procedures are detailed in their respective sections below.

Add an Incoming Webhook connector to a Teams channel

  1. Navigate to your Microsoft Teams environment.

  2. Click the horizontal three-dot menu next to the team you'd like to receive FortiMonitor alerts.

  3. Select the Channels tab.

  4. Click the horizontal three-dot menu in the row of the channel you'd like to receive FortiMonitor alerts.

  5. Click Connectors.

  6. Search for or scroll down to IncomingWebhooks. Click Add or Configure depending on your previous configuration.

  7. Give it a name and optionally an image.

  8. Click Create and copy the webhook URL that is now present.

Set up the integration

The Microsoft Teams integration can be set up via the Integrations page.

  1. Log in to FortiMonitor.

  2. From the main navigation header, select Settings Integrations.

  3. Locate the Teams card then click Configure.

  4. Configure your Teams integration. The configuration options are detailed in the following table:

Field

Description

Title

Enter a name for the MS Teams integration.

Webhook URL

URL generated from MS Teams that will allow you to send alerts to an MS Teams channel.

5. Customize the MS Teams Outage and Clear incident cards. These are the messages that will be posted to the channel when an incident is detected or is resolved. The parameters you can use are detailed in the following sections.

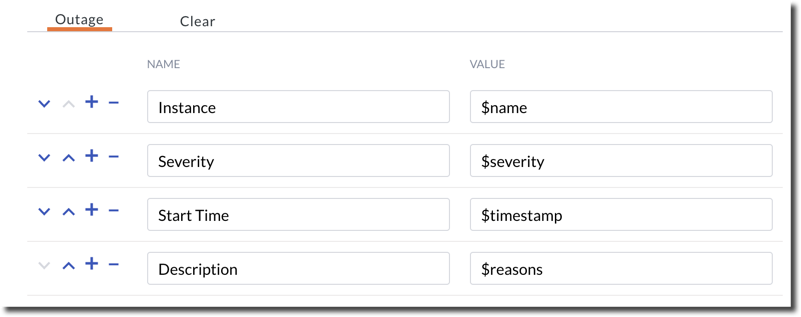

The following parameters are preconfigured by default:

6. Select Save.

7. Go to the Configured Integrations tab to verify your Teams integration.

8. To set up notifications, configure the integration's Alert Timeline and add MS Teams to the timeline.

MS Teams incident card examples

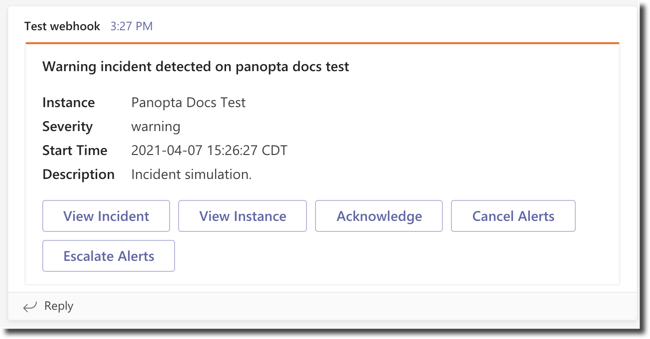

Incident is detected

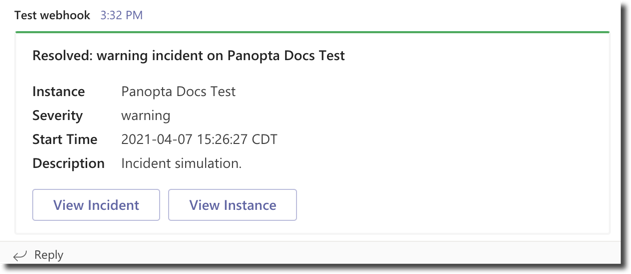

Incident is resolved

Parameters

Parameter

Description

$trigger

The type of event that triggered this payload (outage, ack, broadcast, clear).

$fqdn

The Fully qualified domain name of the server experiencing the incident/clear.

$name

Name of the server experiencing the incident/clear.

$timestamp

UTC timestamp of when the incident/clear occurred.

$event

The type of event, either incident event or clear event.

$outage_id

The ID number of the associated incident.

$services

For service incident: services experiencing the incident/clear.

$compound_service_id

The ID number of the compound metric affected.

$network_service_id

The ID number of the network service affected.

$resource

For resource anomalies: resources experiencing the anomaly/clear.

$server_resource_id

The ID number corresponding to the resource affected.

$items

Services experiencing the incident/clear or resources experiencing the anomaly/clear.

$reasons

The reasons for network service incidents or the details for anomalies.

$duration

The duration of incidents/anomalies which will be filled in on-clear.

$tags

The tags for the server.

$server_key

The server key for the server.

$server_id

The ID number of the server experiencing the incident/clear.

$partner_server_id

The partner server id for the server.

$item_type

The service type textkeys of the services experiencing the incident/clear, or plugin_textkey/resource_textkey combinations of the resources the experiencing the anomaly/clear, or the OID name of SNMP resources experiencing the outage/clear.

$custom_attribute

You can pass custom server attributes that are set on your servers. Use the attribute type as the key.

$alert_label

Alert label of the incident/anomaly.

$severity

The severity of the outage/anomaly, either critical or warning.

$metric_tags

The tags for all of the metrics involved in the outage.

$location

A comma-separated list of the primary monitoring probe names for all network services affected.
