Salesforce

FortiMonitor's Salesforce integration allows you to post incidents detected by FortiMonitor as cases to your Salesforce environment. To set up the integration, you need to do the following:

  1. Configure a new connected app in Salesforce

  2. Reset your security token

  3. Set up the integration in FortiMonitor

These procedures are detailed in their respective sections below.

Configure a new connected app in Salesforce

  1. Log in to Salesforce then click Setup.

  2. Click New Connected App.

  3. In the Basic Information area of the page, specify the following information:

    1. Connected App Name – Specify a name for the connected app.

    2. API Name – A unique identifier used when referring to the app. You can hit [Tab] to automatically populate the field. The API Name defaults to the App Name, replacing spaces with underscores.

    3. Contact Email - Specify an email address to associate with the connected app.

  4. In the API (Enable OAuth Settings) area, configure the following:

    1. Enable OAuth Settings – Click the checkbox to enable the option.

    2. Callback URL – Enter https://my.panopta.com.

    3. Selected OAuth Scopes – Select Access and manage your data (API).

    4. Require Secret for Web Server Flow – Click the checkbox to enable the option.

  5. Click Save.

  6. Click Continue.

  7. On the next page, take note of your Consumer Key and Consumer Secret. You will need to specify these when configuring your Salesforce integration in the FortiMonitor Control Panel.

Reset your security token

  1. Click your avatar then click Settings to open your profile settings.

  2. Under My Personal Information, click Reset My Security Token.

  3. Click Reset Security Token.

  4. You will receive an email with your security token. Copy the token. You will need to specify this when configuring your Salesforce integration in the FortiMonitor Control Panel.

Set up the integration

The Salesforce integration can be set up via the Integrations page.

  1. Log in to FortiMonitor.

  2. From the main navigation header, select Settings Integrations.

  3. Locate the Salesforce card then click Configure.

  4. Configure your Salesforce integration. The configuration options are detailed in the following table:

Field

Description

Title

Enter a name for the Salesforce integration.

User Email Address and User Password

The email address and password you use to log in to Salesforce.

Consumer Key

The Consumer Key from the Salesforce connected app you created. See Configure a new connected app in Salesforce.

Consumer Secret

The Consumer Secret from the Salesforce connected app you created. See Configure a new connected app in Salesforce.

Security Token

Security token from Salesforce. See Reset your security token.

Close State

Enter the name of the transition to apply when an incident is resolved. Make sure your Close State value corresponds to a valid status in your Salesforce instance.

Sandbox

Enable this option if you are testing inside a Sandbox instance.

5. Select Save.

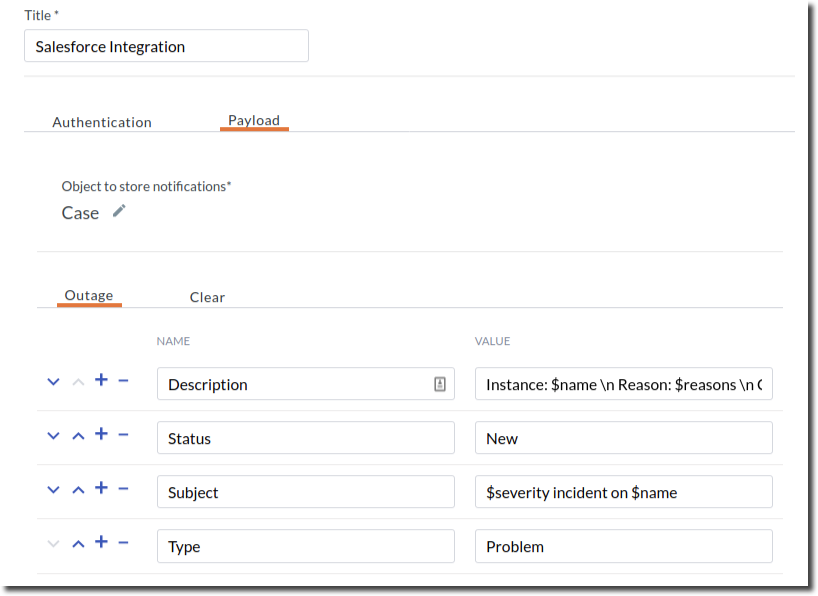

6. Click the Payload tab.

7. Customize the Outage and Clear incident parameters. These parameters are used for cases that will be created in Salesforce when an incident is detected or is resolved. The parameters you can use are detailed in the following sections.

8. Select Save Payload.

9. Go to the Configured Integrations tab to verify your Salesforce integration.

10. To set up notifications, configure the integration's Alert Timeline.

Parameters

Parameter

Description

$trigger

The type of event that triggered this payload (outage, ack, broadcast, clear)

$fqdn

The Fully qualified domain name of the server experiencing the incident/clear.

$name

Name of the server experiencing the incident/clear.

$timestamp

UTC timestamp of when the incident/clear occurred.

$event

The type of event, either incident event or clear event.

$outage_id

The ID number of the associated incident.

$services

For service incident: services experiencing the incident/clear.

$compound_service_id

The ID number of the compound metric affected.

$network_service_id

The ID number of the network service affected.

$resource

For resource anomalies: resources experiencing the anomaly/clear.

$server_resource_id

The ID number corresponding to the resource affected.

$items

Services experiencing the incident/clear or resources experiencing the anomaly/clear.

$reasons

The reasons for network service incidents or the details for anomalies.

$duration

The duration of incidents/anomalies which will be filled in on-clear.

$tags

The tags for the server.

$server_key

The server key for the server.

$server_id

The ID number of the server experiencing the incident/clear.

$partner_server_id

The partner server id for the server.

$item_type

The service type textkeys of the services experiencing the incident/clear, or plugin_textkey/resource_textkey combinations of the resources the experiencing the anomaly/clear, or the OID name of SNMP resources experiencing the outage/clear.

$custom_attribute

You can pass custom server attributes that are set on your servers. Use the attribute type as the key.

$alert_label

Alert label of the incident/anomaly.

$severity

The severity of the outage/anomaly, either critical or warning.

$metric_tags

The tags for all of the metrics involved in the outage.

$location

A comma-separated list of the primary monitoring probe names for all network services affected.
