Server Heatmap

The Server Heatmap widget is used for visualizing the availability of individual servers. Optionally set which metrics to take into account for the availability of the server or leave it blank for all. Cells will remain green if the current status is healthy, otherwise red or orange depending on the severity of an active incident for that server. Hovering over the cell will provide details on that instance. Like most widgets, you can scope the results to specific instances using a variety of filtering options.

Use case

The Server Heatmap widget is useful when:

  • You want to quickly view the current health of the instances on an instance group.

Examples

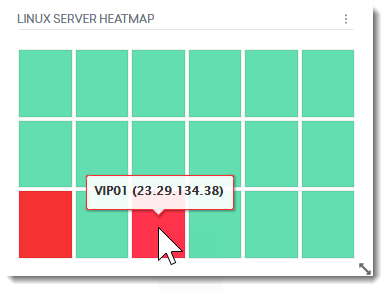

In this example, the widget shows the status of each instance with the Linux tag. Healthy instances are represented by green blocks. The red block represents an incident on the instance.

Configuration

When creating or editing a widget, a drawer that shows the widget's configuration options slides out from the right. Each configurable option is described in the following table.

Field

Description

Widget name

Name of the widget as it appears on the dashboard.

This field shows the default name of the widget. Select the pen icon to rename the widget.

Instances

Filter instances by the following:

Values:

  • No filter

  • Tags

  • Group

  • Name

The health of the selected instances will be visualized in the widget.

Metrics

The selected metric's status is displayed on the widget. Use the search field to search for specific metrics.

Additional Metric Filters

You can also use the filters to fine-tune your search results.

Values:

  • No filter

  • By tags

  • By option string

Dashboard Scoping Adherence

Enabling this option will allow you to bypass Dashboard-level scoping.
