Metric Summary

The Metric Summary widget is used for showing current and aggregate metric values in a tabular form. Like most widgets, you can scope the results to specific instances and metrics using a variety of filtering options. Also, pick from several configurable columns that you can add to the summary table to display availability/SLA, min, max, avg values. Tune the specific order of the columns as well as the sorting of rows.

Use case

The Metric Summary widget is useful when:

  • You want to display the current status of the metrics in an instance or a group of instances.

  • You want to display the historical availability, averages, and outage information of the selected metrics.

Example

Linux servers status and availability

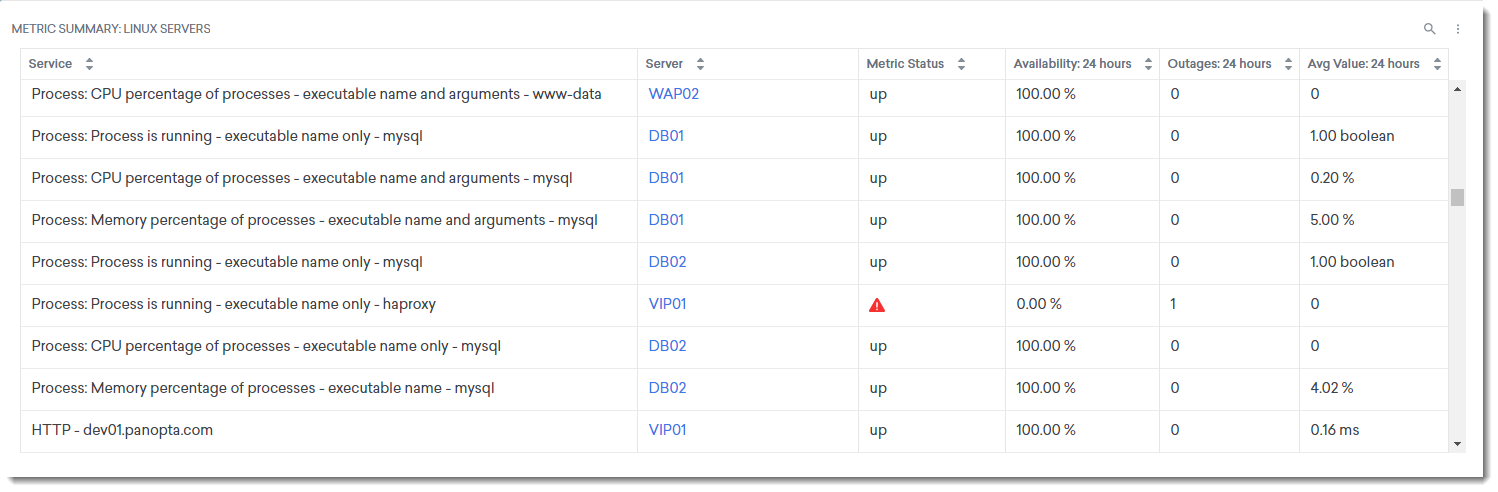

In this example, the widget displays the status and availability (24 hours) of all Linux servers. The Outages: 24 hours data point is also enabled, which shows the number of incidents that occurred on the Linux instance.

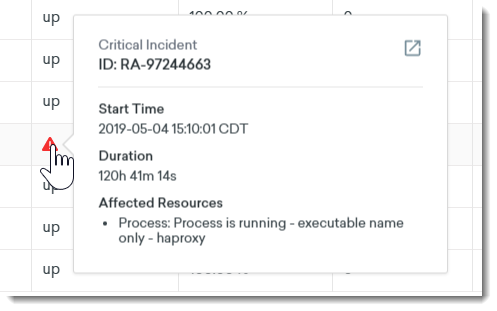

You can also hover your mouse to an incident to show the details. Selecting the Incident ID will redirect you to the incident's page.

Configuration

When creating or editing a widget, a drawer that shows the widget's configuration options slides out from the right. Each configurable option is described in the following table.

Field

Description

Widget name

Name of the widget as it appears on the dashboard.

This field shows the default name of the widget. Select the pen icon to rename the widget.

Metrics

Availability, status, and outage information will be derived from the selected metrics.

Additional Metric Filters

You can also use the filters to fine-tune your search results.

Values:

  • By tags

  • By option string

Instances

Filter instances by the following:

Values:

  • No filter

  • Tags

  • Group

  • Name

Data Points

Select which data points you want to show or hide.

Values:

  • Service

  • Server

  • Metric Status

  • Metric Value

  • Availability: 24 hours

  • Availability: 7 days

  • Outages: 24 hours

  • Outages: 7 days

  • Avg Value: 24 hours

  • Avg value: 7 days

  • Min value: 24 hours

  • Min value: 7 days

  • Max value: 24 hours

  • Max value: 7 days

Dashboard Scoping Adherence

Enabling this option will allow you to bypass Dashboard-level scoping.
