Creating policy packages and firewall policies

The following policies are provided to allow traffic to flow between branches and hub. They require further security configuration to secure the communication.

Following is a summary of how to create the policy package:

1. Configure interface mapping for LAN. See Configure interface mapping for LAN.

2. Create a policy package for branch devices. See Configure the branch policy package and policies.
3. Create a policy package for the hub device. See Configuring the Hub policy package and policies.

Configure interface mapping for LAN

Start by creating an interface mapping to map ‘port3’ to LAN. While you can use port3 in policies, creating this mapping makes the policy purpose more transparent. It also allows for different interfaces to be referenced as LAN. For example, maybe one branch location needs to use port5 as their LAN connection. This can be explicitly mapped for that branch and still utilize the branch policy package which references the LAN interface.

To configure interface mapping for LAN:

1. Navigate to Policy & Objects > Normalized Interface.

2. Use the search field in the top right to search for port3.

3. Edit the port3 mapping by double-clicking on it.

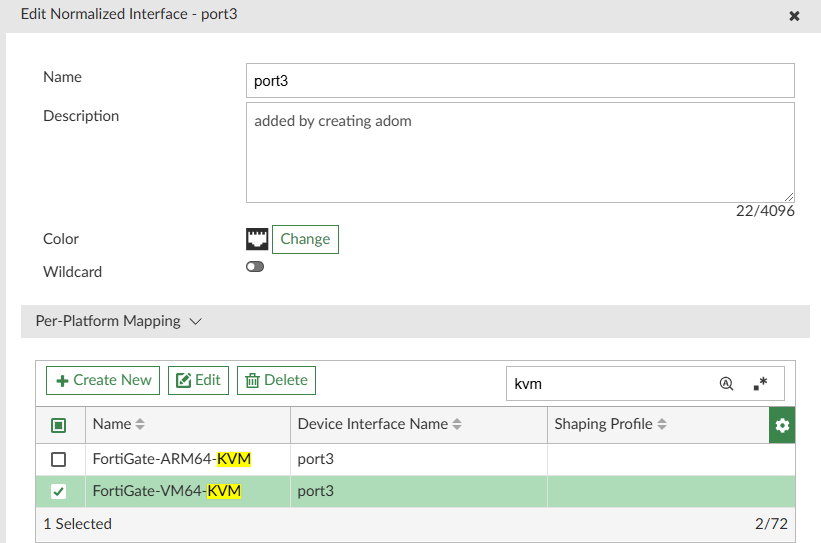

4. Expand Per-Platform Mapping, and search within this menu for FortiGate-VM64-KVM.


5. Delete the entry and click OK to save.

6. Remaining in the Normalized Interface menu, select Create New in the top menu bar to create a new mapping as follows:

   Name	LAN
   Per-Platform Mapping	Matched Platform: FortiGate-VM64-KVM Mapped Interface Name: port3



Configure the branch policy package and policies

To create the branch policy package and policies:

1. Navigate to Policy & Objects, and expand the Branches folder, then select Firewall Policy.
   The firewall policy already contains an entry for Health Check Access.

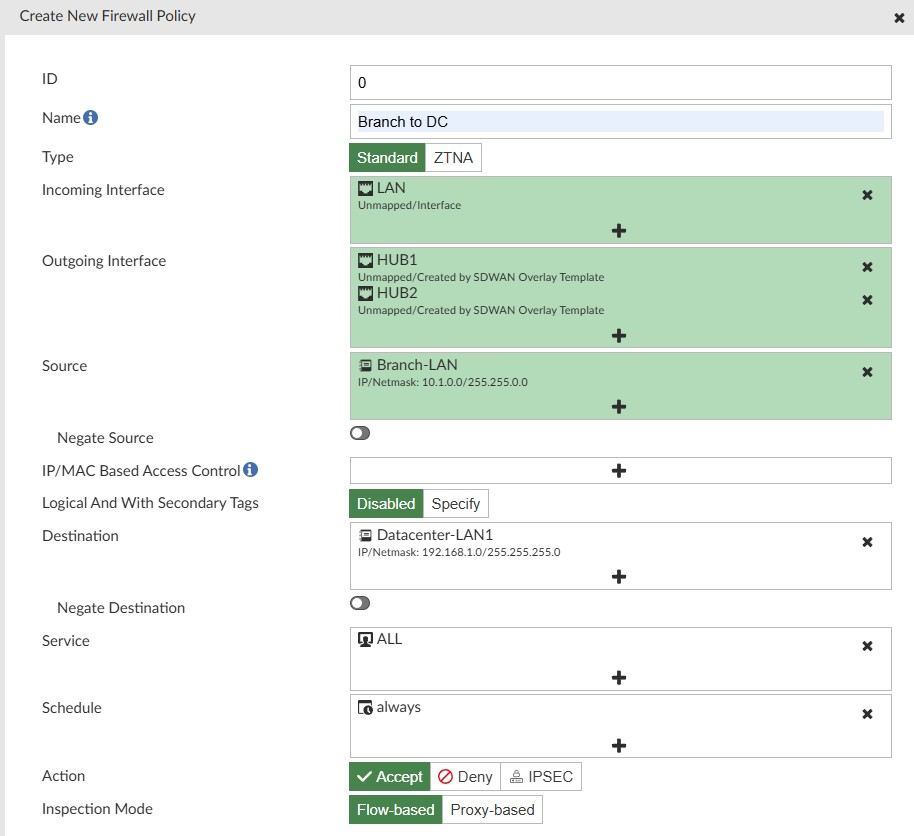

2. Use the Create New button in the top menu bar to create a firewall policy named Branch to DC as follows:

   Name	Branch to DC
   Incoming Interface	LAN
   Outgoing Interface	HUB1, HUB2
   IPv4 Source Address	Branch-LAN
   IPv4 Destination Address	Datacenter LAN1
   Action	Accept



3. Click OK to create the firewall policy.

4. Create a second policy using the same method as above with the following details:

   Name	Direct Internet Access
   Incoming Interface	LAN
   Outgoing Interface	WAN1, WAN2
   IPv4 Source Address	Branch-LAN
   IPv4 Destination Address	RFC-1918 address group
   Negate Destination	Enable
   Action	Accept
   NAT	Enable
   Security Profiles	Apply security profiles as needed to protect users from internet threats.

5. Click OK to create the firewall policy.

6. Create a third policy using the same method as above with the following details:

   Name	DC to LAN
   Incoming Interface	HUB1, HUB2
   Outgoing Interface	LAN
   IPv4 Source Address	Datacenter-LAN1, Branch-LAN
   IPv4 Destination Address	Branch-LAN
   Action	Accept

7. Click OK to create the firewall policy.

Configuring the Hub policy package and policies

To create the hub policy package and policies:

1. Remaining in Policy & Objects, expand the Hub folder and select Firewall Policy to review the Hub firewall policy.
2. There will be one policy created from the SD-WAN Overlay template Health Check Access.
3. Use the Create New button in the top menu bar to create a firewall policy named Branch to DC as follows:

   Name	Branch to Datacenter
   Incoming Interface	VPN1, VPN2
   Outgoing Interface	LAN
   IPv4 Source Address	Branch-LAN
   IPv4 Destination Address	Datacenter LAN1
   Action	Accept



4. Click OK to create the firewall policy.

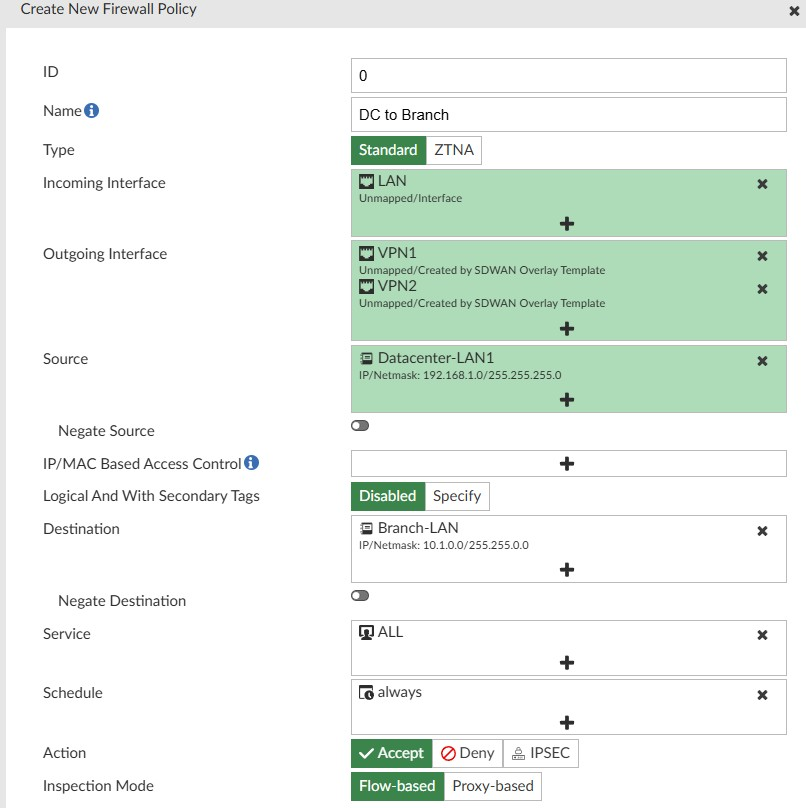

5. Create a second Hub policy using the same method as above with the following details:

   Name	DC to Branch
   Incoming Interface	LAN
   Outgoing Interface	VPN1, VPN2
   IPv4 Source Address	Datacenter-LAN1
   IPv4 Destination Address	Branch-LAN
   Action	Accept



6. Click OK to create the firewall policy.

7. Create a third Hub policy using the same method as above with the following details:

   Name	Branch to Branch
   Incoming Interface	VPN1, VPN2
   Outgoing Interface	VPN1, VPN2
   IPv4 Source Address	Branch-LAN
   IPv4 Destination Address	Branch-LAN
   Action	Accept



8. Click OK to create the firewall policy.
