ADVPN

Following is a summary of enabling ADVPN:

1. Enable ADVPN in the SD-WAN Overlay template. See Enabling ADVPN

2. Edit the SD-WAN rules in the SD-WAN template. See Editing branch SD-WAN template

3. Edit the Branches policy package. See Editing branch policy package

4. Install the policy packages to both Branches and Hub. See Install the policy packages to both Branches and Hub

Enabling ADVPN

Edit an existing SD-WAN overlay template to enable ADVPN, which automatically adds the required settings to the IPsec template and the BGP template.

To enable ADVPN:

1. Go to Device Manager > Provisioning templates > SD-WAN Overlay Template, and double-click the SD-WAN Overlay template created earlier.

2. Expand the Advanced menu, and enable the Auto-Discovery VPN toggle.

3. Click Next five (5) times to complete the wizard.

   The required settings are added to the IPsec template and BGP template.

Editing branch SD-WAN template

Edit the branch SD-WAN template to add Branch_LAN as a destination address for the Corporate_Traffic rule.

To edit the branches template:

1. Go to Device Manager > Provisioning Templates > SD-WAN, and double-click the branch SDWAN template to open it for editing.

2. In the SD-WAN Rules section, double-click the Corporate_Traffic rule to open it for editing.

3. Under Destination, add Branch_LAN as a destination address (in addition to the Datacenter LAN1 subnet).


4. Click OK to save the rule, then OK to save the template.

Editing branch policy package

Edit the branch policy package to add Branch_LAN as a destination address for the Branch to DC rule. Rename the rule to Branch to Corporate.

To edit the branches policy package:

1. Go to Policy & Objects > Policy Packages, and expand Branches to click on Firewall Policy.

2. Edit the Branch to DC rule.

3. Change the name from Branch to DC to Branch to Corporate.

4. Under Destination, add the Branch-LAN address object.

5. Click OK to save.

Install the policy packages to both Branches and Hub

To install the config to branch devices:

1. From the top menu bar, select Install Wizard.

2. Ensure Branches is selected for Policy Package, then click Next.

3. Once the validation passes, select Install.

4. Once install completes, select Finish.

To install the config to the hub:

1. From the top menu bar, select Install Wizard.

2. Ensure HUB is selected for Policy Package, then click Next.

3. Once the validation passes, select Install.

4. Once install completes, select Finish.

Verifying the ADVPN configuration

To verify the ADVPN configuration, initiate an ADVPN shortcut by sending traffic from one branch LAN to another.

10.1.1.10@Branch1:~$ ping 10.1.2.10
64 bytes from 10.1.2.10: icmp_seq=1 ttl 61 time 39.8 ms
64 bytes from 10.1.2.10: icmp_seq=2 ttl 62 time 23.8 ms
64 bytes from 10.1.2.10: icmp_seq=3 ttl 62 time 23.4 ms
64 bytes from 10.1.2.10: icmp_seq=4 ttl 62 time 23.3 ms

The first ping from 10.1.1.10 to 10.1.2.10 is routed through the HUB to branch2 with a latency of 40ms and a TTL of 61. After the initial ping, the shortcut is formed and the remaining pings are sent directly from branch1 to branch2.

This can be confirmed through the FortiManager VPN monitor as follows:

1. On FortiManager, navigate to Device Manager > Monitors.

2. From the top menu bar, select VPN Monitor.

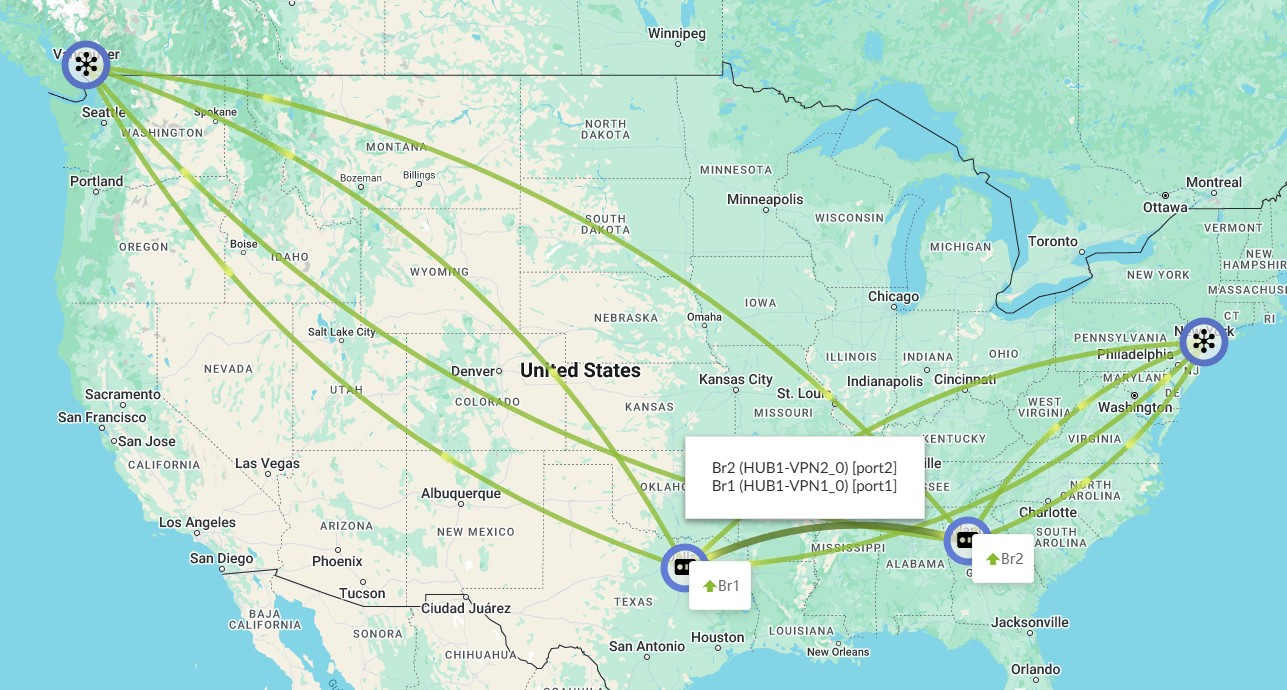

3. A map will open, showing the branch and HUB device VPN tunnels.




   Notice how there is a VPN tunnel between the two branches at Fort Worth and Atlanta. This tunnel is significantly shorter than those going from Br1/2 to the HUB.

   Enable the Show Table slider in the top left of the VPN monitor window to display a table showing the details for each FortiGate’s VPN tunnel. The ADVPN tunnel is highlighted.
