Adaptive FEC

Following is a summary of configuring adaptive FEC:

1. Define the service that FEC will protect. See Defining a custom service.
2. Define the FEC mapping to specify how many parity bits are sent based on different packet loss conditions. See Defining FEC mappings.
3. Enable FEC on both HUB VPN phase 1 interfaces. See Enabling FEC for hub devices.
4. Enable FEC on both branch VPN tunnels. See Enabling FEC on branch devices .
5. Create policies for hub and branch devices, and install the policy packages. See Creating policies and installing policy packages.

Defining a custom service

Define the service that FEC will protect. In this example we will define a custom service.

To define a custom service:

1. Go to Policy & Object > Object Configurations > Firewall Objects > Services.
2. Click +Create New > Service.

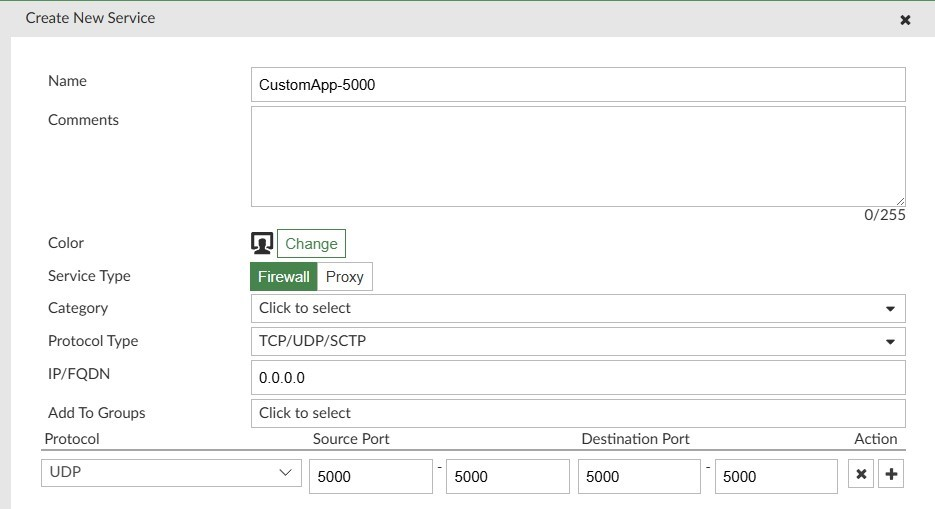

3. Specify the name of the service, the protocol and the ports, and click OK to save the service.



Defining FEC mappings

Define the FEC mapping to specify how many parity bits are sent based on different packet loss conditions.

To define FEC mappings:

1. From the left side menu, expand Policy & Objects and select Advanced.

2. Select CLI Configurations from the top menu.

3. In the Search box, type fec. The vpn ipsec fec menu will appear.

4. Click Create New. The create vpn ipsec fec mapping pane is displayed.

5. In the Name box, type dc_fec.

6. Under mappings, click Create New. The Create New vpn ipsec fec mappings pane is displayed.

7. Set the following options, and click OK to create the mapping:

   base	8
   packet-loss-threshold	5
   redundant	2

   The mapping is created.

8. Under mappings, click Create New again to create another mapping.
9. Set the following options, and click OK to create the mapping:

   base	5
   packet-loss-threshold	10
   redundant	2

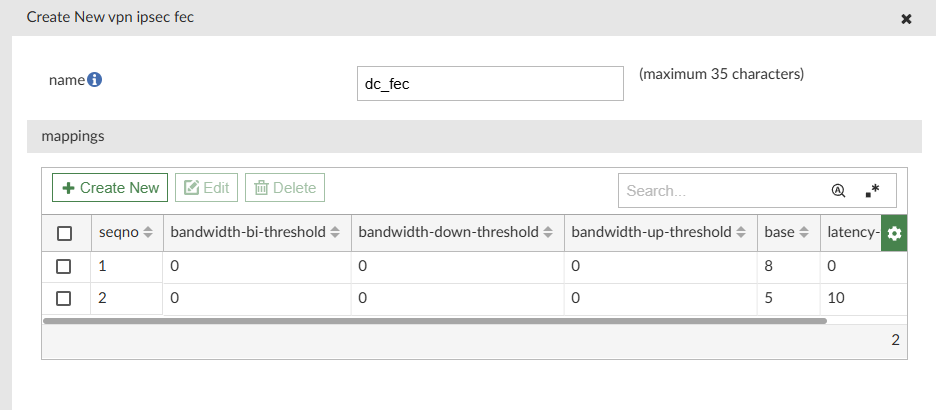

10. Click OK to save the object with two mappings.

Enabling FEC for hub devices

Enable FEC on both HUB VPN phase 1 interfaces.

To enable FEC for hub devices:

1. Go to Device Manager > Provisioning Templates > IPsec Tunnel.

2. Double-click the Primary_secondary_dual_hub_HUB1_IPsec template to open it for editing.

3. Select VPN1, and click Edit.

4. Scroll down to and expand Advanced Options.

5. Set the following options:

   fec-mapping-profile	dc_fec
   fec-egress	enable
   rec-ingress	enable

6. Click OK to save the changes.

7. Repeat the same steps for VPN2.

8. Repeat steps 2 through 7 for the Primary_secondary_dual_hub_HUB2_IPsec template.

Enabling FEC on branch devices

Enable FEC on both branch VPN tunnels.

To enable FEC on branch devices:

1. From IPsec Tunnel templates, double-click the Primary_secondary_dual_hub_BRANCH_IPsec template to open it for editing.

2. Double-click HUB1-VPN1 to open it for editing.

3. For FEC Health Check, enter HUB1_HC.

4. Scroll down and expand Advanced Options.

5. Set the following options, and click OK.

   fec-mapping-profile	dc_fec
   fec-egress	enable
   rec-ingress	enable

6. Repeat for HUB1-VPN2.

7. Double-click HUB2-VPN1 to open it for editing.

8. For FEC Health Check, enter HUB2_HC.

9. Scroll down and expand Advanced Options.

10. Set the following options and click OK:

    fec-mapping-profile	dc_fec
    fec-egress	enable
    rec-ingress	enable

11. Repeat for HUB2-VPN2.

Creating policies and installing policy packages

Create policies for the hub and branch devices for the custom application, and then install the policy packages to the devices.

To create policies and install policy packages:

1. Create a policy for the HUB policy package:
   1. Go to Policy & Object > Policy Packages > HUB > Firewall Policy, and click +Create New.
   2. Set the following options, and click OK.

      Name	Custom App Policy
      Incoming Interface	VPN1, VPN2
      Outgoing Interface	LAN
      Pv4 Source Address	Branch network
      Pv4 Destination Address	Datacenter LAN1
      Service	CustomApp-5000
      Action	Accept
      Advanced Options	fec enabled

   3. Move this policy under the SLA-HealthCheck policy.
2. Create a policy for the branches policy package:
   1. Go to Policy & Object > Policy Packages > Branches > Firewall Policy and click +Create New.
   2. Set the following options, and click OK.

      Name	Custom App Policy
      Incoming Interface	LAN
      Outgoing Interface	HUB1, HUB2
      Pv4 Source Address	Branch network
      Pv4 Destination Address	Datacenter LAN1
      Service	CustomApp-5000
      Action	Accept
      Advanced Options	fec enabled

   3. Move this policy under the Health Check Access policy.
3. Install both HUB and Branch policy packages.
