Time To Connect

You can configure static thresholds or enable FortiAIOps to compute them dynamically. Based on the configured thresholds, the variations in the time to connect are recorded for each phase, and the statistics are displayed in the Monitor tab.

Navigate to Configuration > Service Level Assurance > Time to Connect.

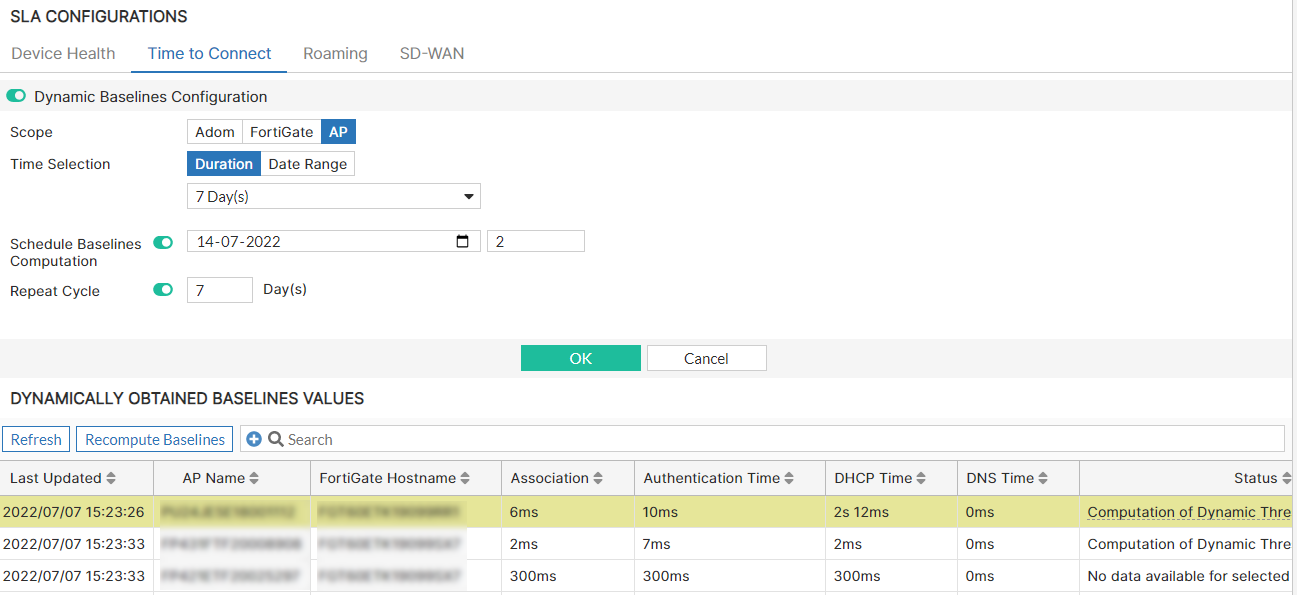

Dynamic Baselines

You are required to provide the following information for threshold/baseline configuration.

• Scope - Select the scope to calculate the thresholds which could either be per Adom, per FortiGate, or per AP.
• Time Selection - Set the time range/duration for which FortiAIOps analysis client data to derive the thresholds.
• Schedule Baselines Computation - Set the time when FortiAIOps calculates the baselines and applies them to your network to obtain and report the relevant SLAs.
• Repeat Cycle - Configure the repetition of the above configurations, that is, the phase of analyzing client activity and the calculation/application of the algorithms.

The baseline values calculated by FortiAIOps are displayed in the table. You can re-compute specific baseline values.

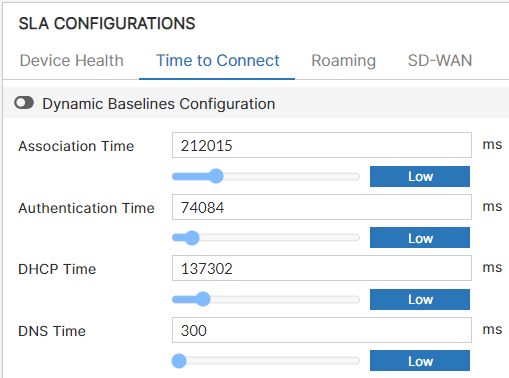

Static Threshold

Configure the time (milliseconds) for the following stages of client connection to a network.

• Association - The time taken by a client to successfully associate.
• Authentication - The time taken by associated clients to authenticate.
• DHCP - The time taken by successfully associated and authenticated clients to receive a valid DHCP address.
• DNS - The time taken by successfully associated, authenticated, and received a DHCP address clients to resolve their first DNS request.
  Note: The default value for these parameters is 300 milliseconds and the valid range is 1 - 1000000 milliseconds.
