SD-WAN
The SD-WAN panel displays the total number of impacted clients and the performance SLA data. Any client that breaches the configured SLA thresholds are reported. In each SLA panel, you can select Show Clients to view the impacted client count or click Show Interfaces to view the impacted interface count.
Topology and Logs
You can click on the impacted SLA listed in the panel to view the topology and the impacted client details.
The Impacted Clients table displays details such as the client MAC address, the associated AP serial number, the issue classifier/category and the sub-classifier, the issue description and the suggested remediation measure, and so on.

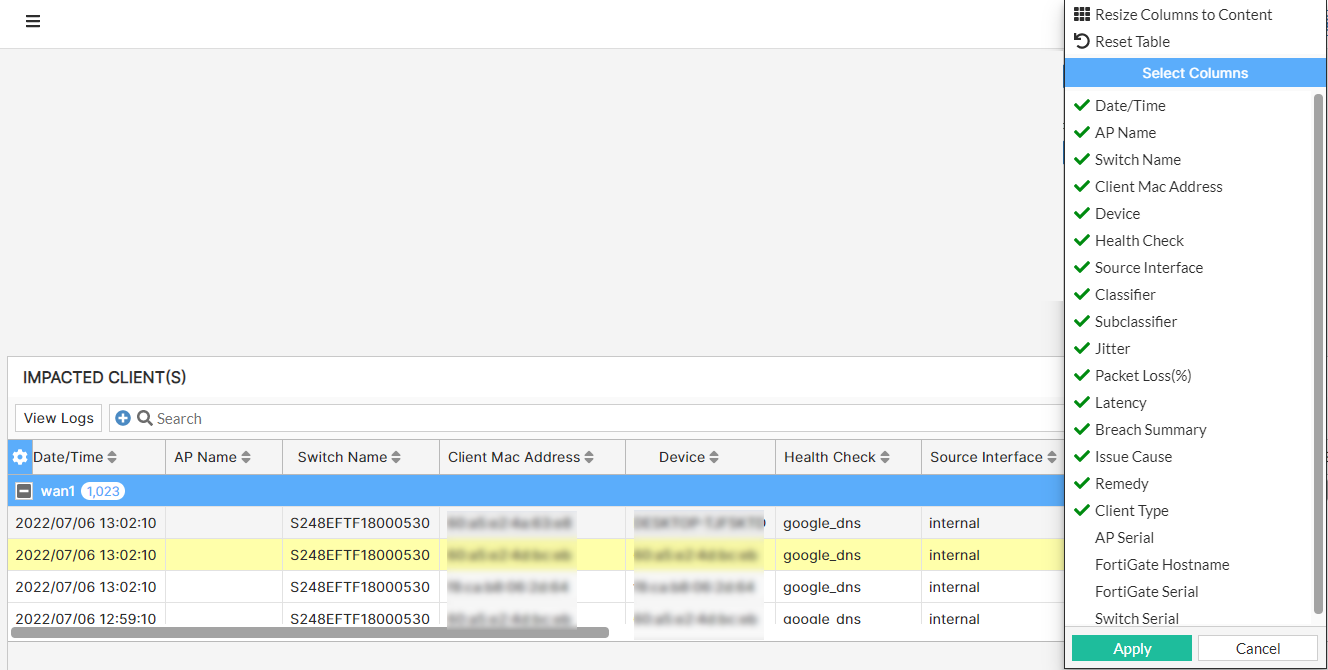

Right-click on the header of the table to select the following columns that you wish to view.
|
Attribute |
Description |
|---|---|
| Date/Time | The date and time of the impact as per your timezone. |
|
FortiGate Serial |
The serial number of the associated FortiGate. |
|
AP Serial |
The serial number of the associated AP. |
| Client MAC Address | The MAC address of the impacted client device. |
| Device | The MAC address of the impacted client device. |
| Issue Cause | detailed cause of the SLA breach that impacted the client/AP/FortiGate. |
| Remedy | The suggested remedy to resolve the issue. |
| Classifier | The classifier of the issue reported for the SLA. |
| Subclassifier | The sub-classifier of the issue for the reported classifier. |
|
Health Check |
The performance SLA check configured in FortiGate. |
|
Source Interface |
The SD-WAN interface name. |
|
Jitter(ms) |
The amount of jitter (milliseconds) reported for the client. |
|
Packet Loss(%) |
The percentage of packet loss reported for the client. |
|
Latency(ms) |
The amount of latency (milliseconds) reported for the client. |
|
FortiGate Hostname |
The hostname of the FortiGate associated with the AP/impacted client. |
| Breach Summary | The SD-WAN SLA threshold that was breached. |
| Client Type | The client type that is impacted, wireless or wired. |
Select a particular client and click View Logs, to view the impacted client logs.
