What's New

This release of FortiAIOps 1.1.0 delivers the following new features.

• SD-WAN SLA
• New Wireless SLAs
• Dynamic Baselines Configuration
• Dashboard Enhancements
• HA Cluster Support

SD-WAN SLA

The minimum quality SLA strategy uses criteria that you configure to determine which SD-WAN links to use and to identify SD-WAN network issues. You can configure the SD-WAN threshold parameters and monitor them in the dashboard.

New Wireless SLAs

The 1.1.0 now allows you to monitor and analyze client data based on 3 new SLA thresholds, Roaming, Coverage, and Throughput. The Roaming SLA is configurable and you can set the required thresholds or enable FortiAIOps to set the thresholds dynamically. The Throughput and Coverage SLA thresholds are not configurable and FortiAIOps sets and applies these thresholds. You can monitor the impacted SLAs in the dashboard.

Dynamic Baselines Configuration

You can now allow FortiAIOps to calculate the SLA thresholds/baselines dynamically using machine learning algorithms. This enables you to diagnose network issues based on accurate and latest client data trends. The AI driven algorithms are designed to learn new data regularly for changes in client activity, calculate thresholds, and report statistics.

The SD-WAN, Roaming, and Time To Connect thresholds can be configured dynamically.

Dashboard Enhancements

This release delivers the following enhancements.

• These enhancements are added in the Monitor > Overview page.

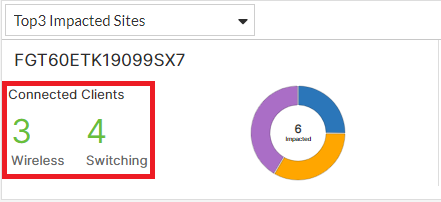

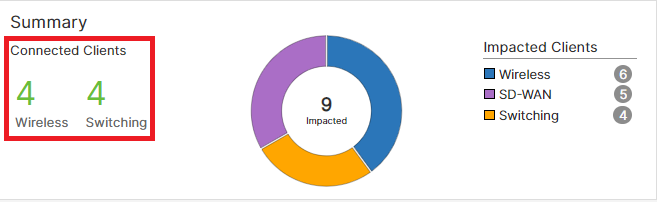

  • Click on the connected client count in the Summary or Top 3 Impacted Sites panels to view the client details.

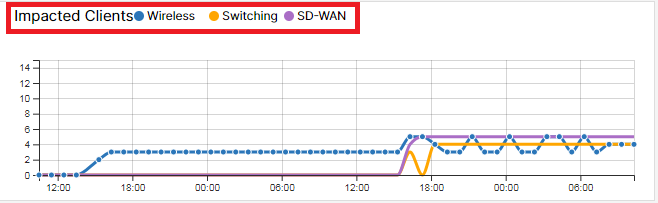

  • Click on the Impacted Clients graph in the Summary panel to view the client details.


  • Clicking on the impacted clients donut charts in the Summary or Top 3 Impacted Sites panel, redirects you to the Impacted Devices page.


  • The Active Client count is displayed at the top, clicking on this displays the client details.


• The Impacted Devices dashboard provides details of the various devices in your network that are associated with impacted clients, that include the wireless, switching, and SD-WAN clients. You can view and analyze the SLA data based on the device type. The Impacted SLA dashboard displays the impacted wireless, switching, and SD-WAN clients, categorized based on SLAs, classifiers, and sub-classifiers. You can filter and view the SLAs as per specific categories.
• A toggle option is added for all the impacted SLA panels in the wireless, switching, and SD-WAN dashboards that allows you to toggle between the impacted client count and the impacted device/interface count.

HA Cluster Support

You can import FortiGate clusters in FortiAIOps, the HA configuration (Active-Active/Active-Passive) is preserved.
