AP Manager exposes wireless advanced features 7.2.1

AP Manager exposes the wireless advanced features under the new AP Settings, ARRP Profile, and Access Control List.

This topic includes information about the following:

To use an AP Settings template:
  1. Go to AP Manager > WiFi Templates > AP Settings.
  2. Click Create New, or edit an existing AP settings template.
  3. Enable AP Setting to configure related options.

    You can expand Advanced Options to configure them as needed.

  4. Enable SNMP Profile to configure related options.

  5. Click OK.

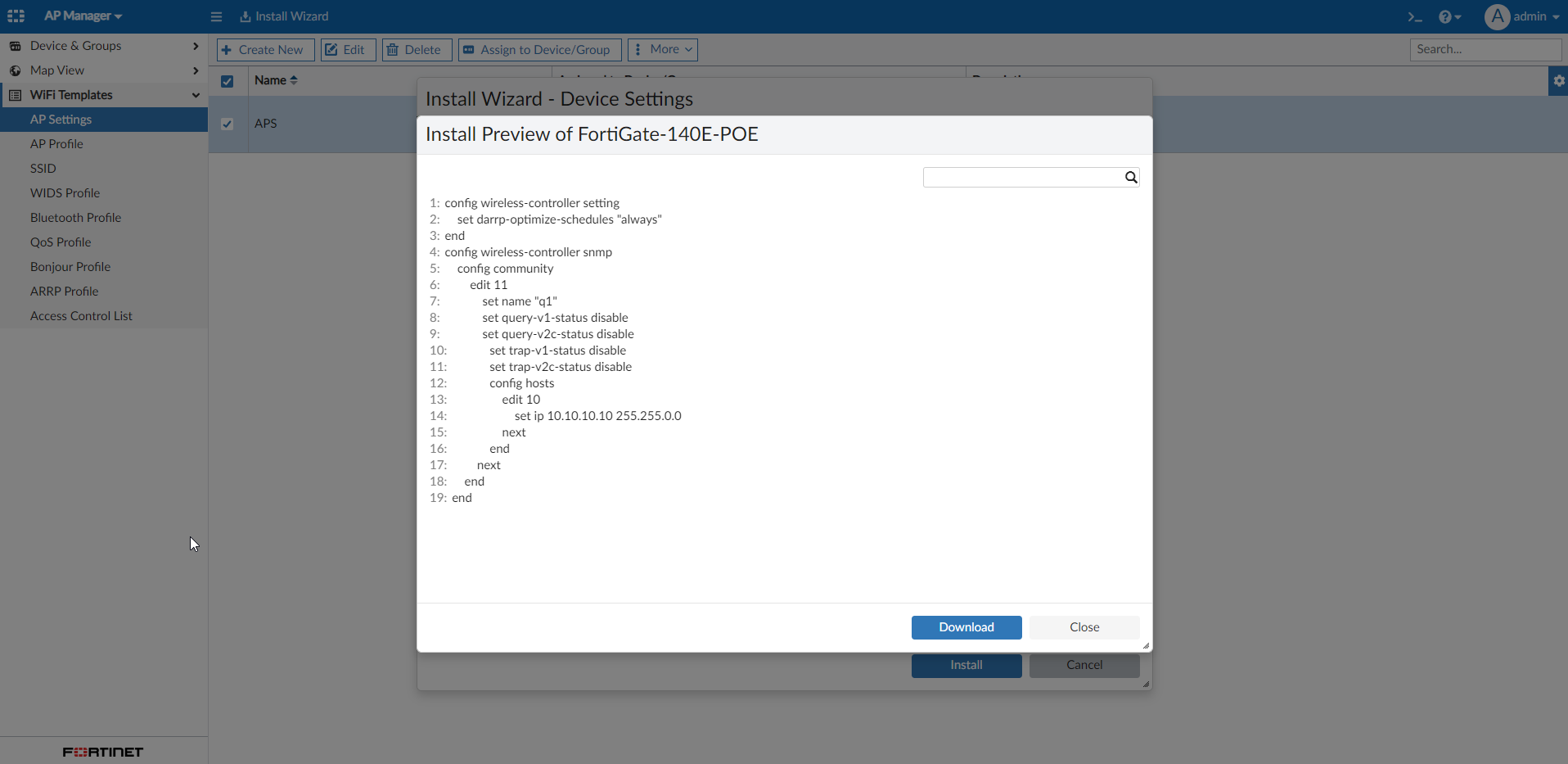

    The AP settings template can be assigned to a FortiGate device and then deployed using the Install Wizard. For example, see the install preview below.

To use an ARRP Profile:
  1. Go to AP Manager > WiFi Templates > ARRP Profile.
  2. Click Create New, or edit an existing ARRP Profile.
  3. Configure the ARRP Profile and click OK.

  4. Go to AP Manager > WiFi Templates > AP Profile.
  5. Click Create New, or edit an existing AP Profile.

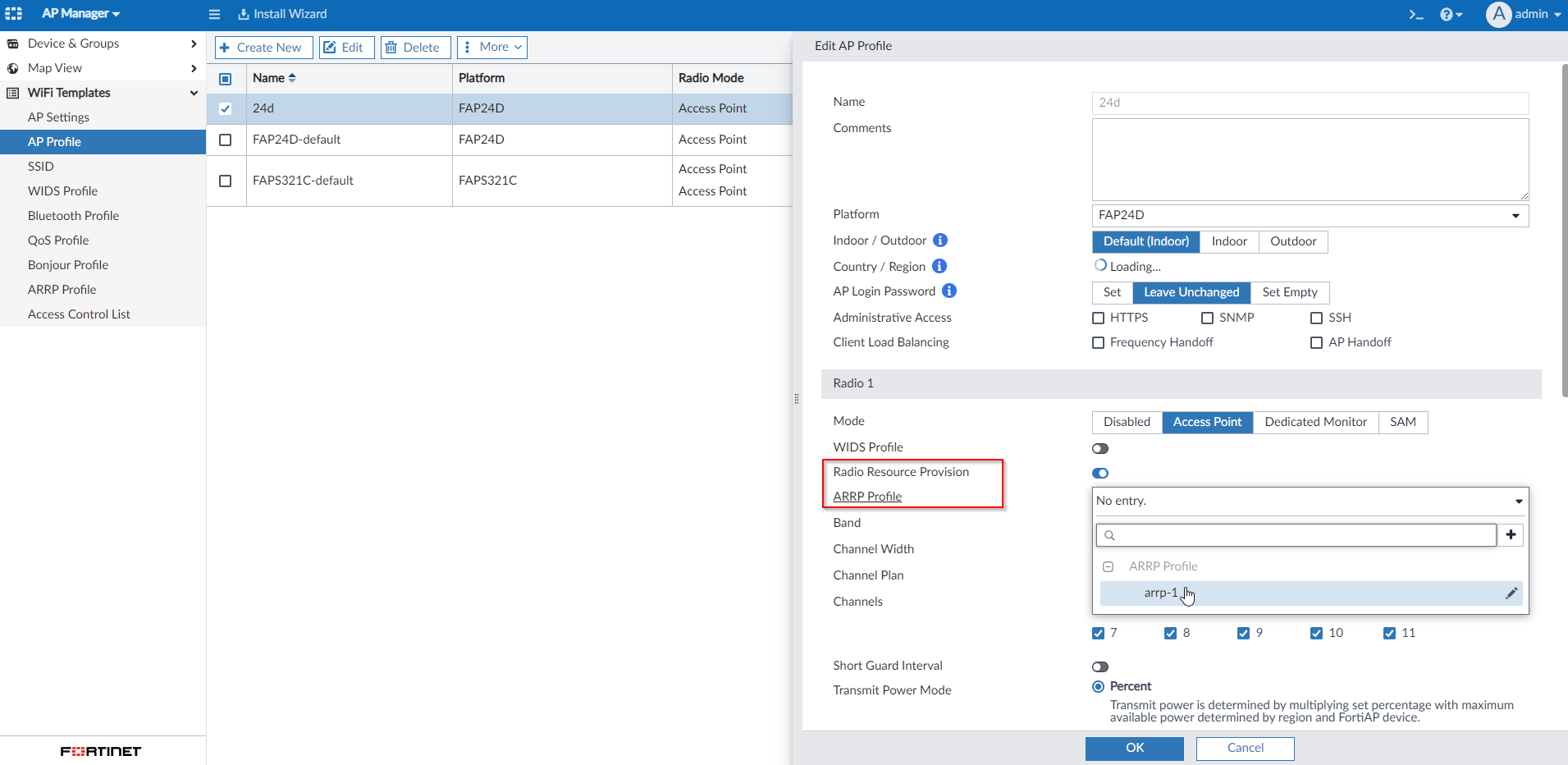

  6. Under the Radio 1 settings, enable Radio Resource Provision.
  7. From the ARRP Profile dropdown, select the ARRP profile.

  8. Configure the other options for the AP Profile, and click OK.

    The settings can be deployed to FortiGate when the AP profile is assigned to a FortiAP. For example, see the install preview below.

To use an Access Control List:
  1. Go to AP Manager > WiFi Templates > Access Control List.
  2. Click Create New, or edit an existing Access Control List.

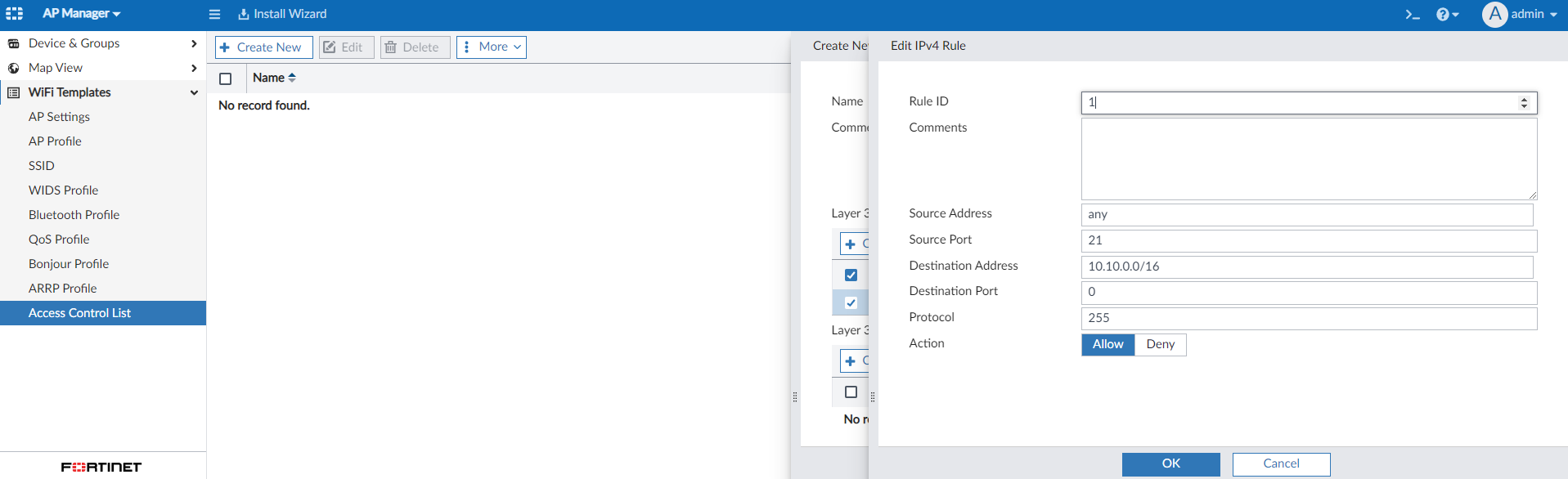

  3. Create Layer 3 IPv4 Rules for the Access Control List.

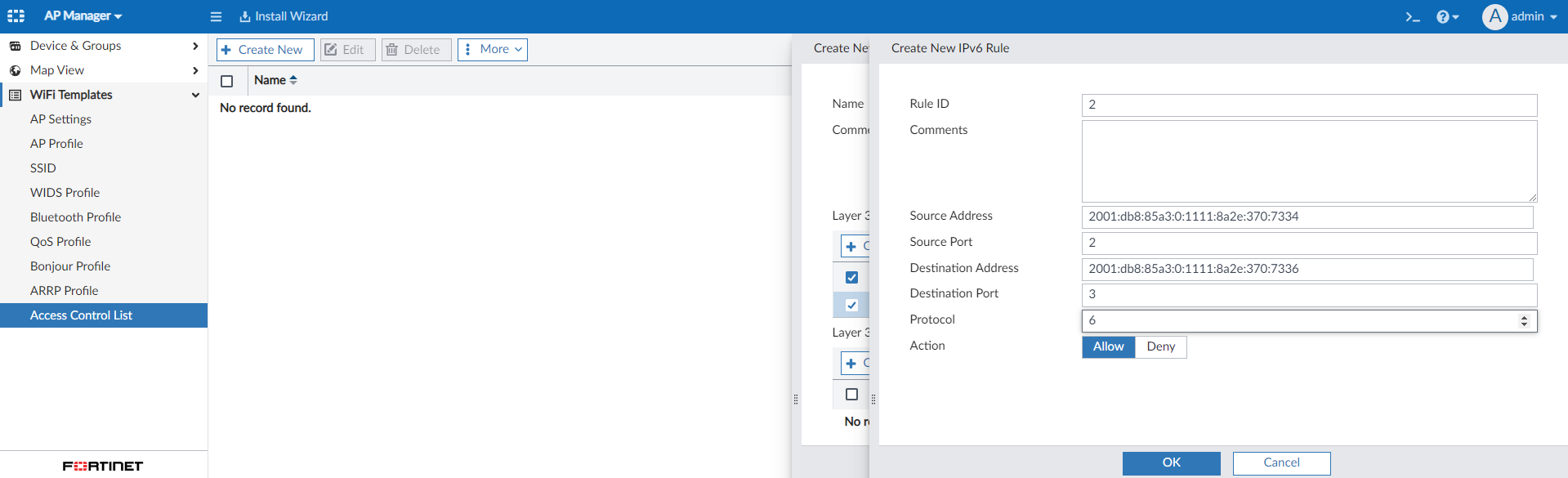

  4. Create Layer 3 IPv6 Rules for the Access Control List.

  5. Configure the other options for the Access Control List, and click OK.
  6. Go to AP Manager > WiFi Templates > SSID.
  7. Click Create New, or edit an existing SSID.
  8. Go to the WiFi Settings section.
  9. From the Access Control List dropdown, select the Access Control List.

  10. Configure the other options for the SSID, and click OK.

    The settings can be deployed to FortiGate when the SSID is assigned to a FortiAP. For example, see the install preview below.
