FortiManager supports BYOL installation on managed FortiGate VM 7.2.1
FortiManager supports BYOL installation on managed FortiGate VM.
To install a BYOL license to a managed FortiGate VM on FortiManager:
- Go to Device Manager > Device & Groups.

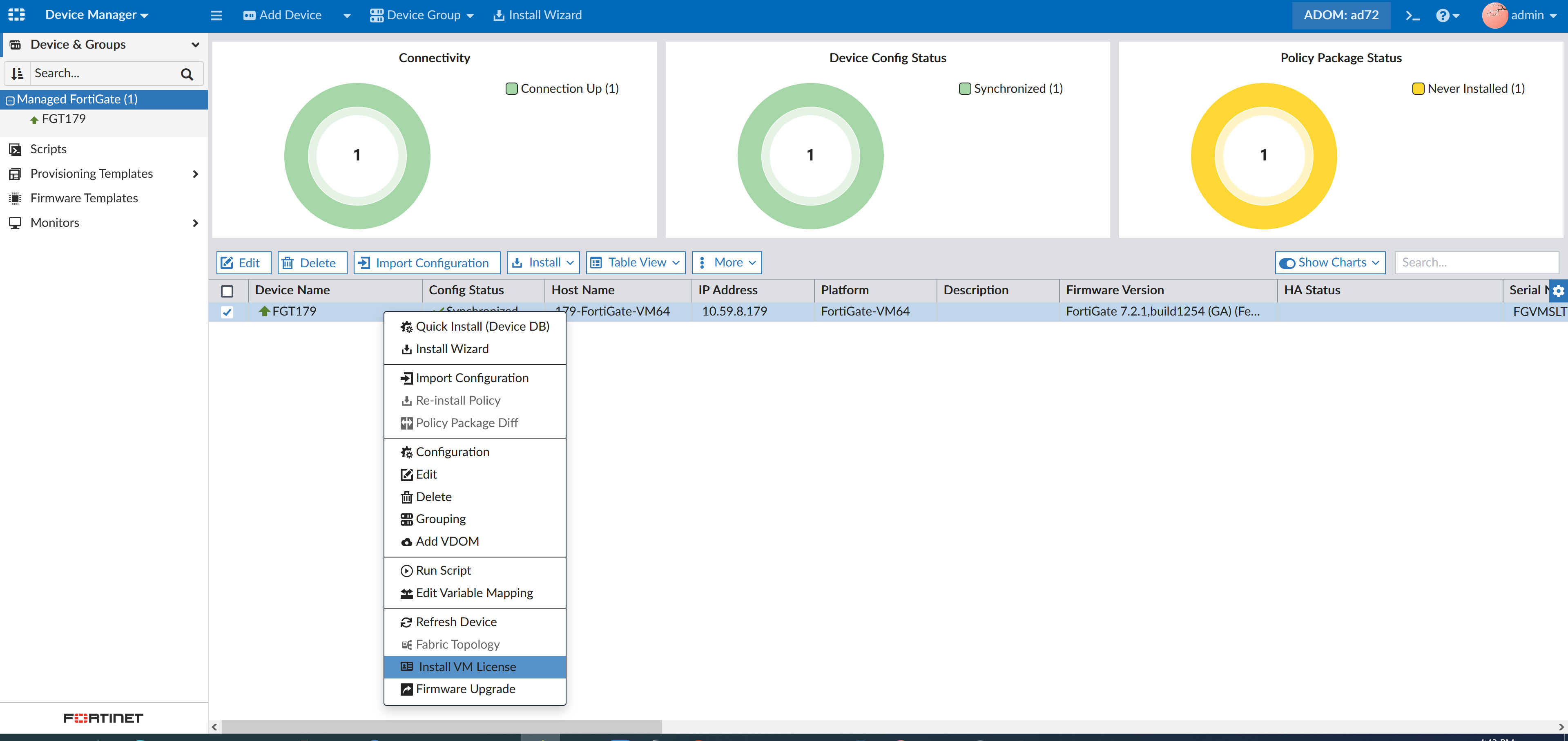

- Right click on a managed FortiGate VM, and select Install VM License from the dropdown menu.

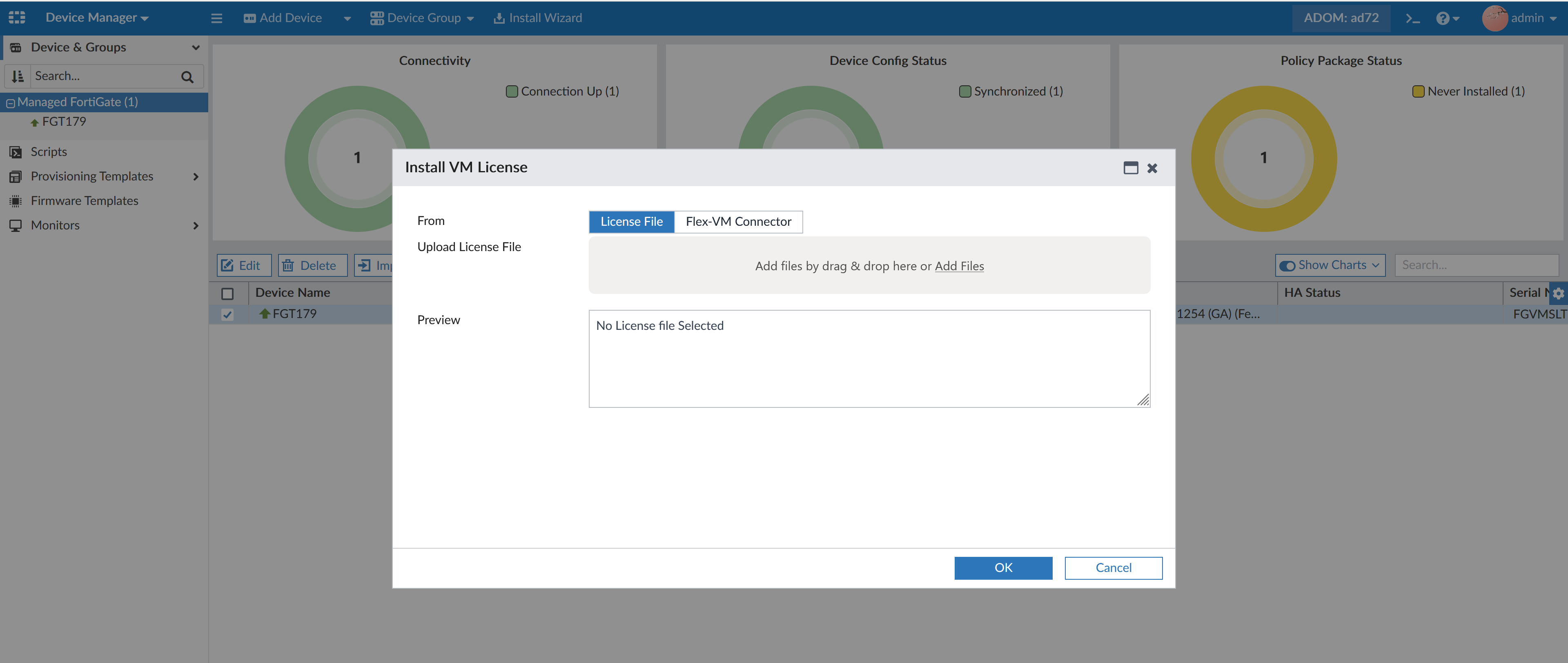

The Install VM License dialog appears with two options for the license: License File and Flex-VM Connector. - Select License File, and then upload the license by dragging and dropping the file into the selection box, or clicking Add Files to browse to its location.
- Click OK.

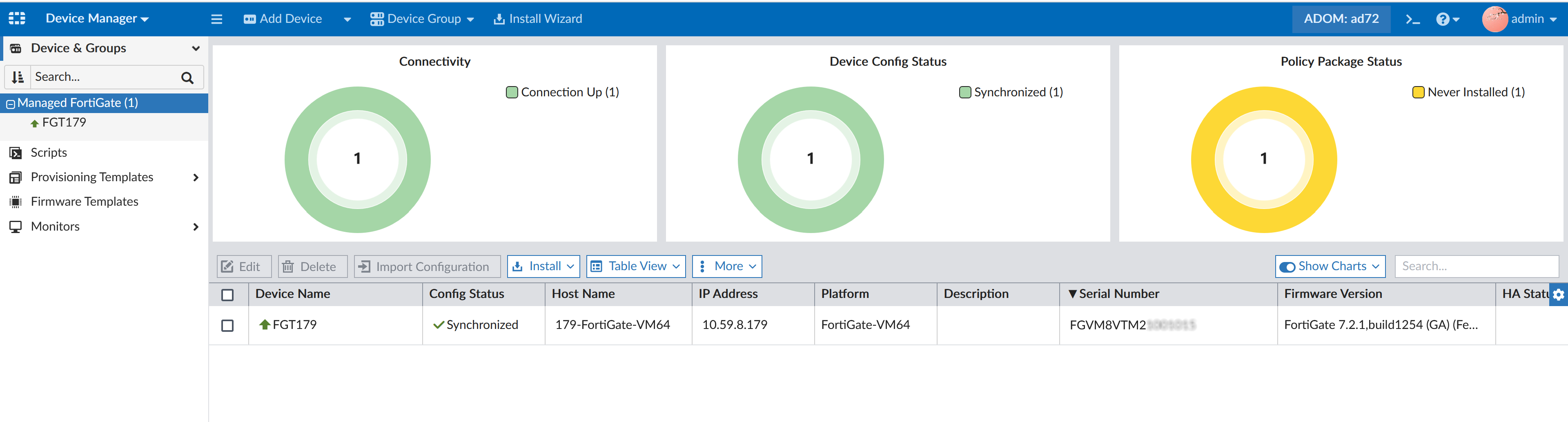

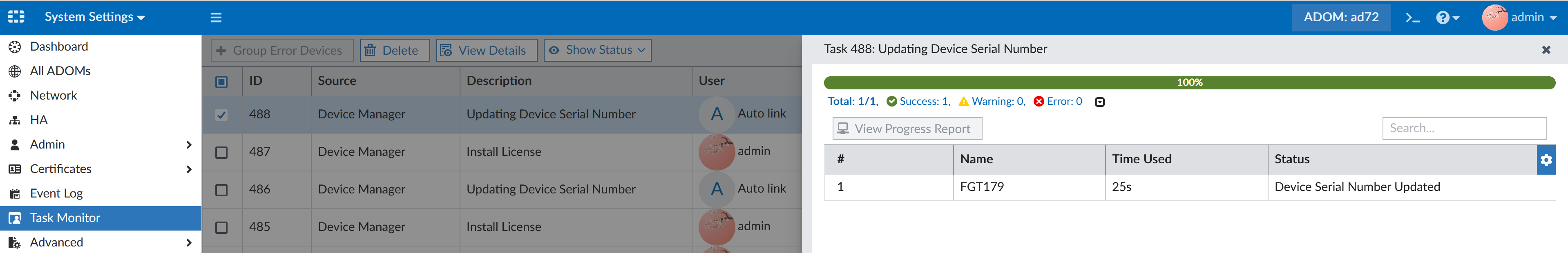

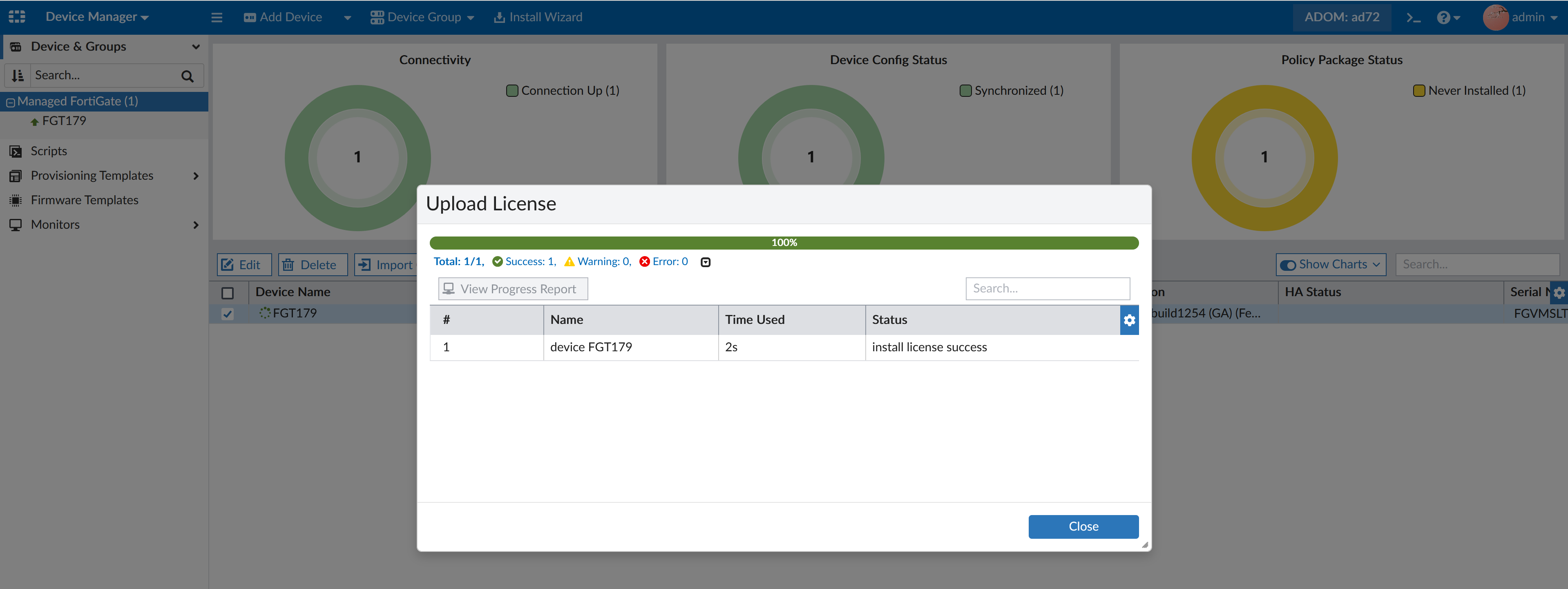

FortiManager will upload the license and update the Serial Number for the FortiGate device. The FortiGate license is replaced with the new license.
Check the device list, onboard/maintenance member for new the FortiGate serial number.
For example:diagnose dvm device list FGT179
--- There are currently 49 devices/vdoms managed ---
--- There are currently 42 devices/vdoms count for license ---
TYPE OID SN HA IP NAME ADOM
IPS FIRMWARE
fmgfaz-managed 2267 FGVMSLTM2200001 - 10.59.8.179 179-FortiGate-VM64 ad72
6.00741 (extended) 7.0 MR2 (1254)
|- STATUS: dev-db: not modified; conf: in sync; cond: OK; dm: retrieved; conn: up
|- vdom:[3]root flags:0 adom:ad72 pkg:[never-installed]
|- onboard/maintenance member:[2279FGVM8VTM21000000
