New Features

Metadata Variables are supported in Firewall Objects configuration

Copy Link
Copy Doc ID 722c6141-8e83-11ec-9fd1-fa163e15d75b:218740
Download PDF

Metadata Variables are supported in Firewall Objects configuration

In FortiManager 7.2.0, metadata variables are supported in Firewall Objects configurations.

To use a metadata variable in a dynamic objects:
  1. Go to Policy & Objects > Object Configurations.
  2. Create or edit a firewall address, IP pool, or virtual IP.
  3. Add the metadata in a supported text field using the following format: $<metadata_variable_name> .

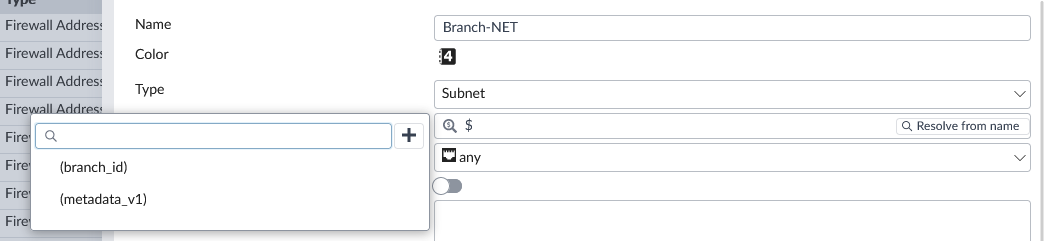

    When $ is typed into a supported text field, available metadata variables are displayed for selection. You can click the add button to create a new metadata variable.

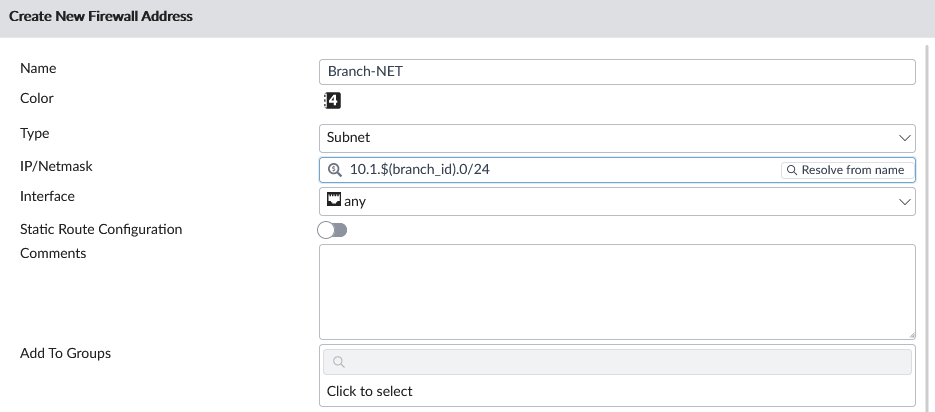

    • For firewall addresses (subnet type), you can use metadata variables in the IP/Netmask field.
    • For IP pools, you can use metadata variables in the External IP Range field.

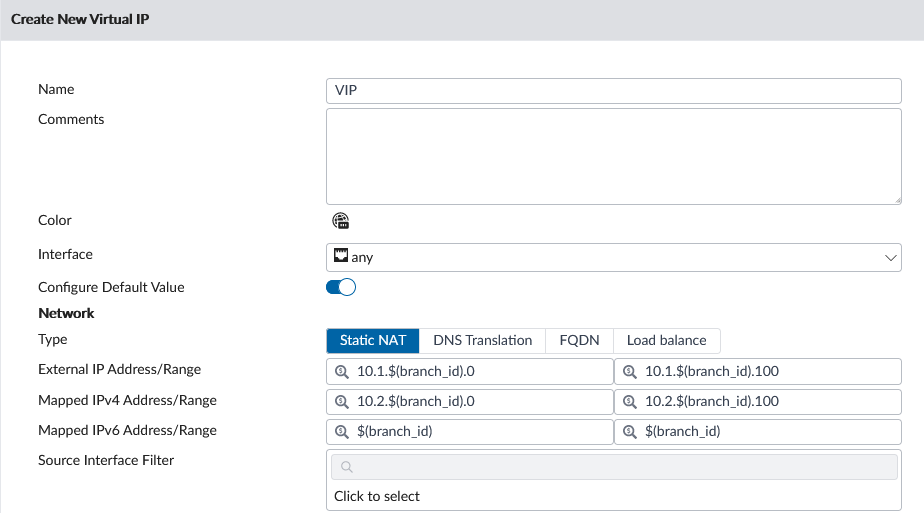

    • For virtual IPs, you can use metadata variables in the External IP Address/Range, Mapped IPv4 Address/Range, and Mapped IPv6 Address/Range fields.
