Interface-based traffic shaping can display real time dropped packets 7.2.2

Interface-based traffic shaping can display real time dropped packets.

To view real-time dropped packets in the Traffic Shaping widget:

1. Go to Device Manager > Device Groups, and select a managed device.

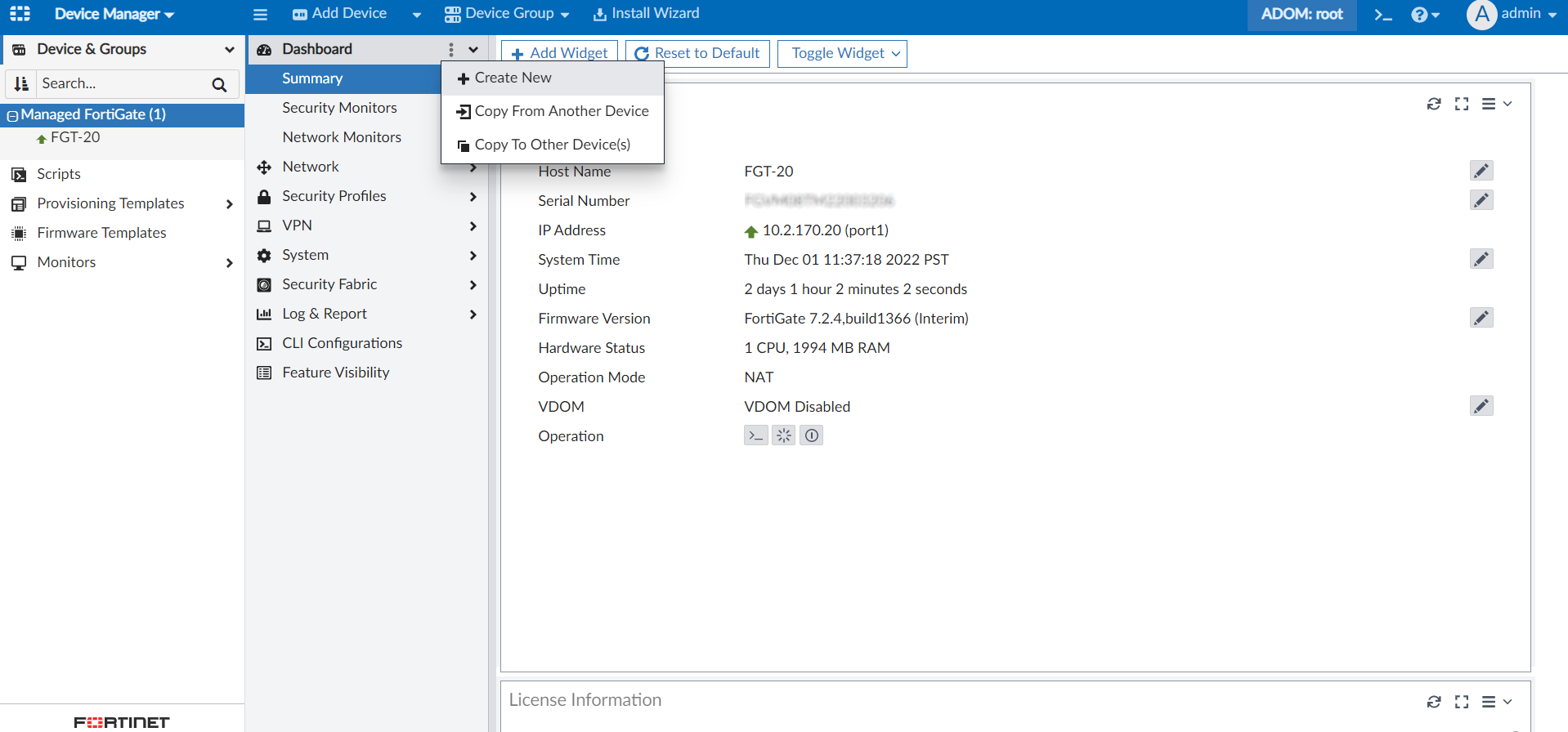

2. In the toolbar, click Create New.

3. Enter a name for the dashboard.

4. On the dashboard, click Add Widget.

5. Search and add Traffic Shaping (Interface-Based).

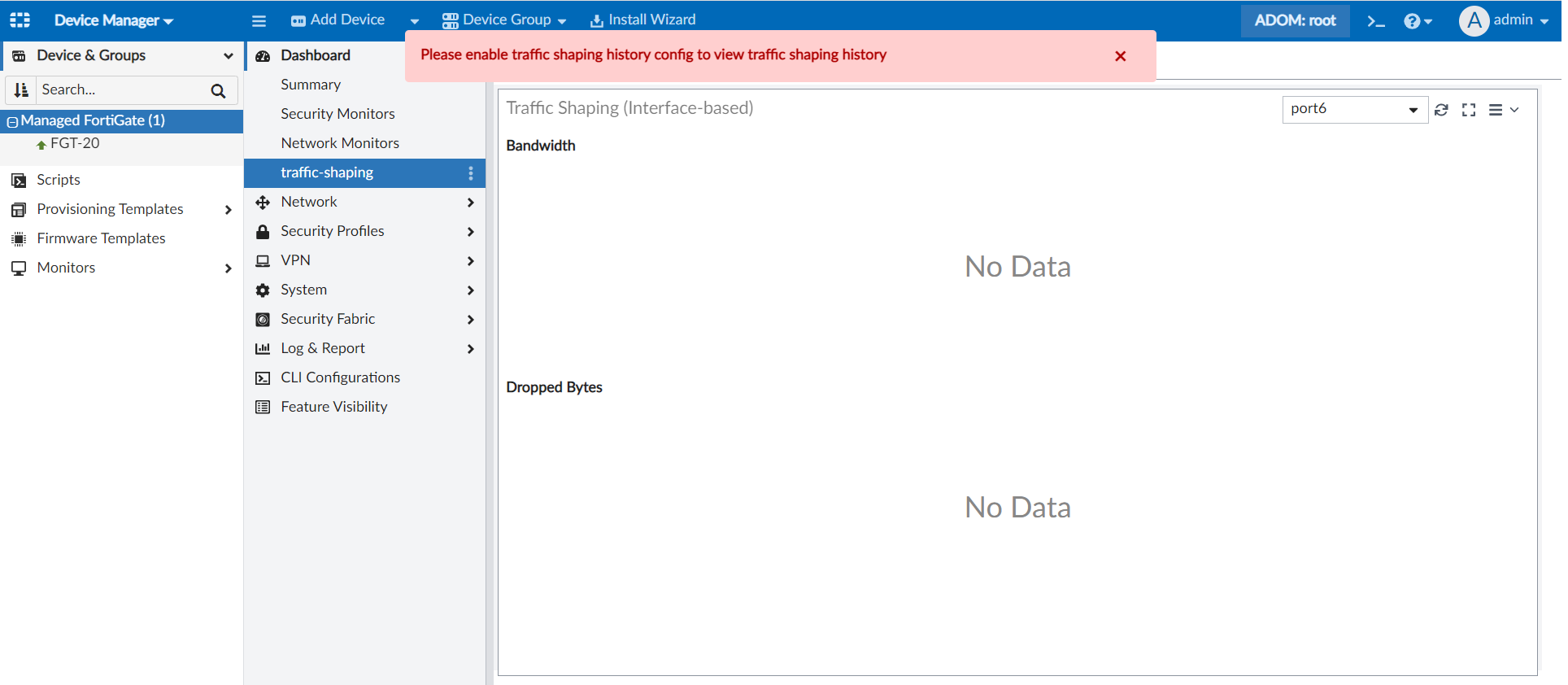

   The page will display an error message if traffic shaping history is not enabled.

6. To enable traffic shaping history, open the CLI console and enter the following commands:

   config system admin setting

   set traffic-shaping-history enable

   end

7. After FortiManager receives data from FortiGate, the widget will display the real-time information of bandwidth and dropped bytes for each class.
