Resolve IP address from FQDN for firewall address type subnet

In FortiManager, you can resolve the IP address from the FQDN for "subnet" type firewall addresses.

To resolve IP/Netmask from the FQDN in IPv4 address objects:
  1. Go to Policy & Objects > Object Configurations > Firewall Objects > Addresses.
  2. Create or edit a firewall address object.
  3. In the Address Name field, enter the FQDN. For example, www.google.com.
  4. In the Type field, leave the address as Subnet.
  5. In the IP/Netmask field, click Resolve from name.
    The field is auto-filled with the first IP retrieved from the DNS query.

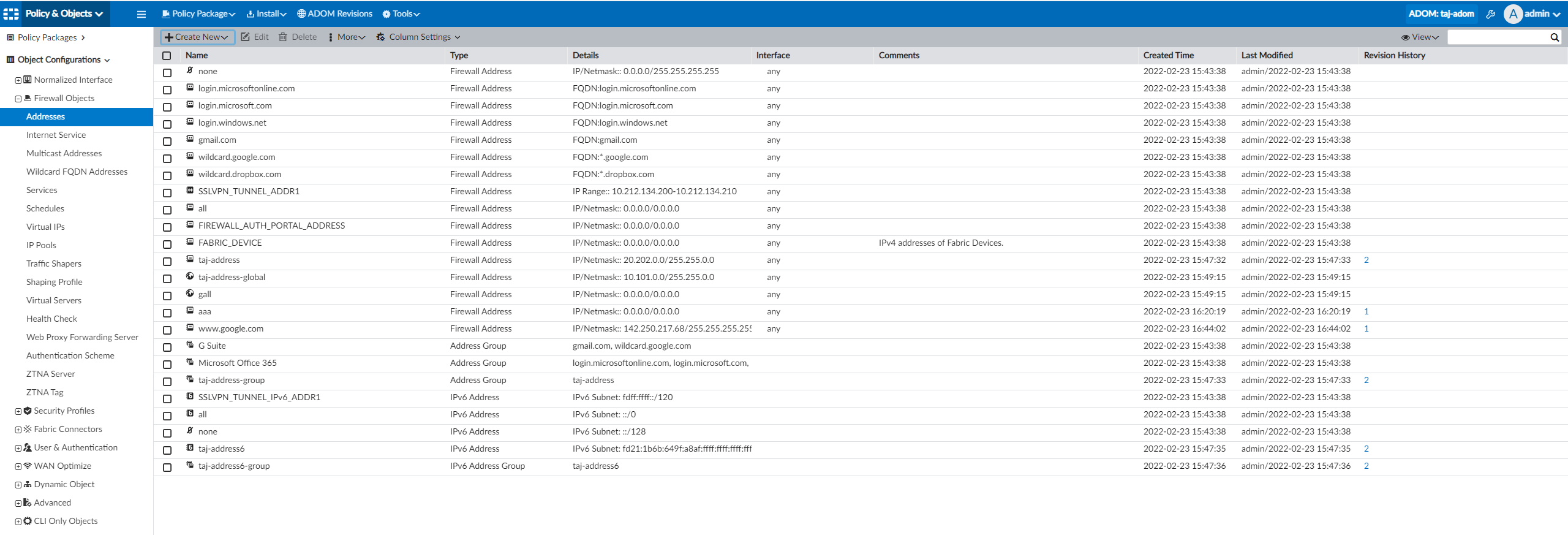

  6. The saved address can be used in a policy.
  7. If FortiManager cannot resolve the host name/FQDN, the GUI will report the following error: Name or service not known.
To resolve IP/Netmask from the FQDN in IPv6 address objects:
  1. Go to Policy & Objects > Object Configurations > Firewall Objects > Addresses.
  2. Create or edit a firewall address object.
  3. In the Address Name field, enter the FQDN. For example, www.google.com.
  4. In the Type field, leave the address as IPv6 Subnet.
  5. In the IP/Netmask field, click Resolve from name.

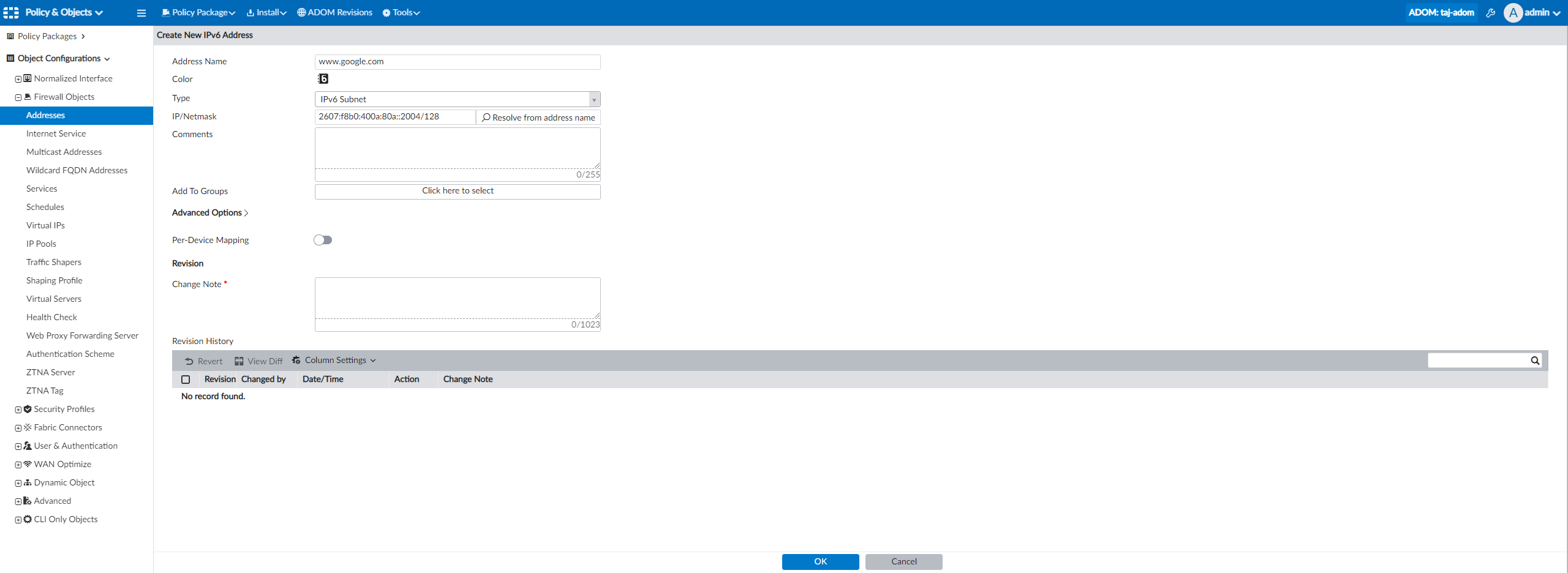

    The field is auto-filled with the first IP retrieved from the DNS query.
  6. The saved address can be used in a policy.

Resolve IP address from FQDN for firewall address type subnet

In FortiManager, you can resolve the IP address from the FQDN for "subnet" type firewall addresses.

To resolve IP/Netmask from the FQDN in IPv4 address objects:
  1. Go to Policy & Objects > Object Configurations > Firewall Objects > Addresses.
  2. Create or edit a firewall address object.
  3. In the Address Name field, enter the FQDN. For example, www.google.com.
  4. In the Type field, leave the address as Subnet.
  5. In the IP/Netmask field, click Resolve from name.
    The field is auto-filled with the first IP retrieved from the DNS query.
  6. The saved address can be used in a policy.
  7. If FortiManager cannot resolve the host name/FQDN, the GUI will report the following error: Name or service not known.
To resolve IP/Netmask from the FQDN in IPv6 address objects:
  1. Go to Policy & Objects > Object Configurations > Firewall Objects > Addresses.
  2. Create or edit a firewall address object.
  3. In the Address Name field, enter the FQDN. For example, www.google.com.
  4. In the Type field, leave the address as IPv6 Subnet.
  5. In the IP/Netmask field, click Resolve from name.
    The field is auto-filled with the first IP retrieved from the DNS query.
  6. The saved address can be used in a policy.
