FortiManager performance and sizing in closed networks

Here you can find best practice information about sizing a FortiManager that is acting as a FortiGuard Distribution Server (FDS) in closed networks.

When operating in a closed network, FortiGate devices are not connected to the Internet. This is a protective measure that adds security, but it means that FortiGate devices cannot retrieve updates directly from FortiGuard. FortiGate devices can instead get the latest FortiGuard updates through an Internet connected FortiManager acting as a FDS. When FortiManager is acting is as a FDS, it will process the updates for AV/IPS, Web Filtering database, and license checks.

A closed network configuration with a FortiManager FDS can be set up in either a cascade or air-gapped mode.

Network design and process

In the examples below, the following scenario is used:

  • 24 x FortiGate 1800F devices across four data centers.
  • One FortiManager cluster per data center.
  • FortiGates use FortiManagers as the FDS for AV/IPS, license checks, and the Web Filtering database.

Two network design modes are demonstrated:

Cascade mode

Design:

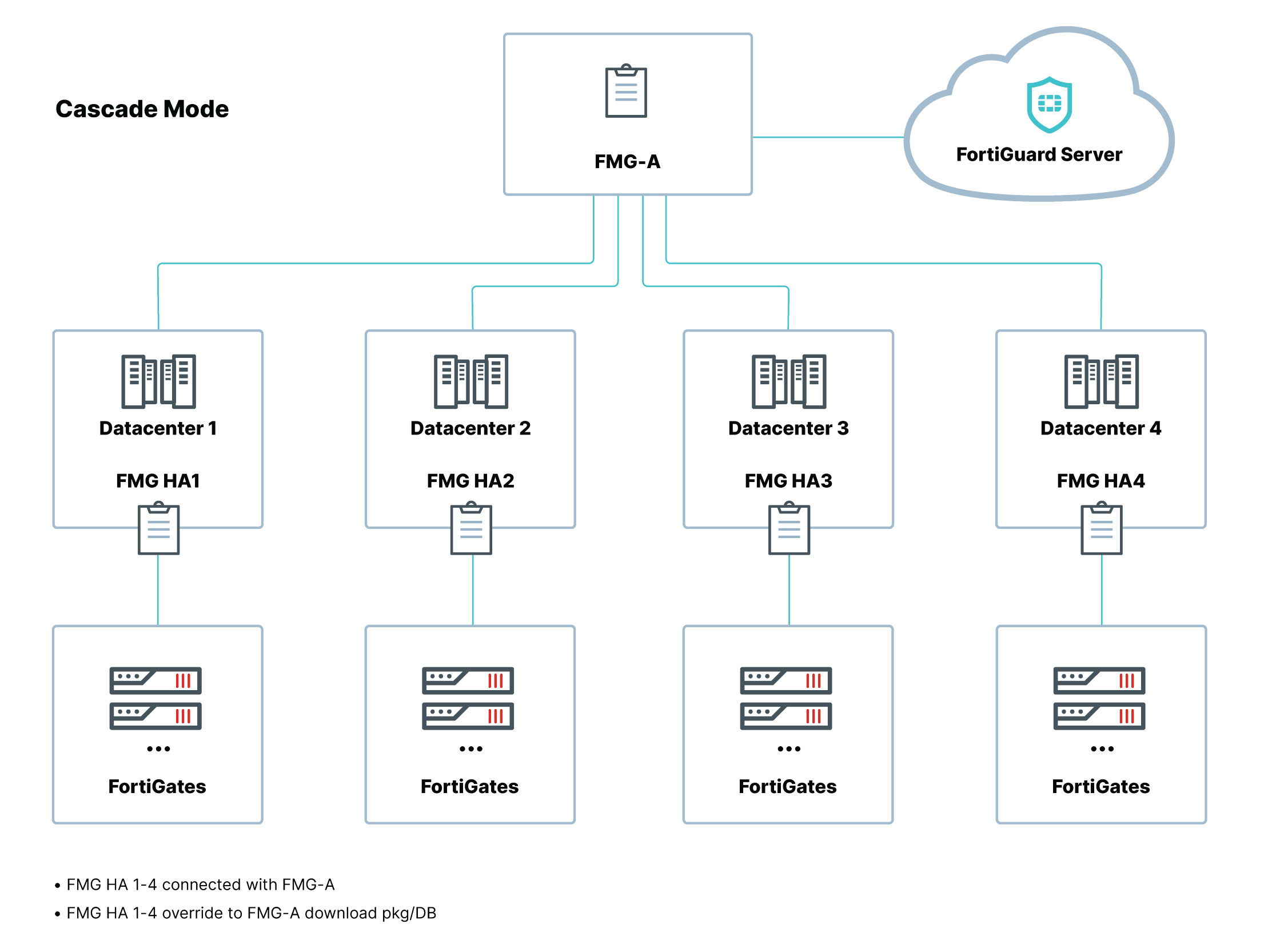

The following topology diagram demonstrates the network design using cascade mode where FortiManager-A is connected to the Internet, and FortiManager HA 1-4 are not connected to the Internet. The FortiManager HA 1-4 clusters override to use FortiManager-A as the FDS to download package and database updates, and provide update and rating services to FortiGate devices.

Process:
  1. FortiManager-A connects to the FDS to download AV/IPS packages, contracts, and Web Filtering database.
  2. FortiManager HA 1-4 have no Internet (FGD) access and override to use FortiManager-A to download the packages and database updates.
  3. FortiManager HA 1-4 provide update and rating services to the FortiGates.

Air gap mode

Design:

The following topology diagram demonstrates the network design using air-gap mode where there is no connection between FortiManager-A and the FortiManager HA 1-4 clusters. The FortiGuard update package must be imported on each FortiManager cluster using an internal-access only FTP server.

Process:
  1. In an air-gaped deployment mode, there is no connection between FortiManager-A and the FortiManager clusters.
  2. FortiManager-A downloads the updates from FortiGuard.
  3. FortiManager-A exports the downloaded packages.
  4. The FortiManager cluster imports the packages. This process must use an internal-access only FTP server.

Performance testing

Tooltip

The performance testing below was done using FortiManager and FortiOS devices running versions 7.0.0 or later.

Web Filtering performance test case and results:

In a closed network, FortiManager will need to download the Web Filtering database and upgrade it in memory. The current Web Filtering database size is 7.5 GB, so the FortiManager will need (2 x 7.5 GB) + (8 GB) system memory, which is a minimum of 23 GB.

Caution

Some FortiManager units which do not meet the memory requirements, such as FortiManager 300E which includes 8GB of memory, cannot be used for this purpose.

FortiManager Platform

CPU

Memory

Cache

CPU usage

Max URL rating/s

CPU

Loss Rate <%

FMG3900E

24

128G

7G

70.00%

90k

64-bit

0.0200

FMG3000F

32

64G

7G

45.00%

80k

64-bit

0.0200

FMG3700F

40

386G

7G

72.00%

90k

64-bit

0.023

FMG3000G

32

128G

7.3G

74%

90k

64-bit

0.01

AV/IPS performance test case and results:

FortiManager has no concurrent connection limitation, and the bottleneck for FortiGate updates from FortiManager is based on the available bandwidth for the network interface and the number of FDS workers configured to process download requests on the FortiManager.

The following scenarios demonstrate how various configurations of FDS workers and network ports affect the update time per FortiGate device as well as the FortiManager CPU usage.

Tooltip

The following performance testing was completed on a FortiManager-3000G with a 32-bit CPU, 128 GB of memory, and running version 7.0.2.

Note

The update package size used to calculate CPU usage below is based on the first time update to download the full AV/IPS package.

Scenario 1

Number of FortiGates

Update Time Per FortiGate

FortiManager CPU Usage

Network Bandwidth

(port2 1Gbps)

Max Concurrent Connections

Update Package Size

FortiGuard Update Service Daemon

FDS Worker=1

1000

14 minutes

< 1%

98%

960M

1000

110M

In the first scenario, there are 1000 FortiGate devices, one FDS worker is configured to process download requests on FortiManager, and port2 is used which supports speeds up to 1 Gbps. In this example, each FortiGate takes approximately 14 minutes to update, and the process uses 98% of the CPU on the FortiManager. With only one FDS worker and limited network bandwidth over port2, the AV/IPS update process becomes resource intensive on the FortiManager. Additional resources are recommended.

Scenario 2

Number of FortiGates

Update Time Per FortiGate

FortiManager CPU Usage

Network Bandwidth

(port4 25Gbps)

Max Concurrent Connections

Update Package Size

FortiGuard Update Service Daemon

FDS Worker=10

1000

4 - 20 seconds

< 1%

15%

20G

1000

110M

In the second scenario, the number of supported FortiGates remain the same, but by changing the number of available FDS workers to 10 and using port4 which supports speeds up to 25 Gbps, each FortiGate is updated in only 4 to 20 seconds instead of 14 minutes, and the FortiManager CPU usage is 15% instead of 98%. The FortiManager in this scenario is suitably configured to support the AV/IPS updates for the number of FortiGates in the closed network.

By increasing the available FDS workers and choosing a network port that supports greater speeds, the load on the FortiManager CPU and the time to update each FortiGate is reduced.

Scenario 3

Number of FortiGates

Update Time Per FortiGate

FortiManager CPU Usage

Network Bandwidth

(port4 25Gbps)

Max Concurrent Connections

Update Package Size

FortiGuard Update Service Daemon

FDS Worker=10

3000

100 - 120 seconds

< 10%

50-95%

20G

3000

110M

The third scenario uses the same port and number of FDS workers that are used in the second scenario but the number of FortiGate devices has been increased to 3000. The update time per FortiGate is increased to 100 - 120 seconds, and the FortiManager CPU usage is increased to between 50 and 95%.

As the number of supported FortiGate devices increases, the CPU usage and total time to update each FortiGate also increase.

To set the maximum number of FDS workers:

config fmupdate fds-setting

set max-work {1-32}

end

max-work = The maximum number of worker processing download requests (1 - 32, default = 1).

Conclusion

The following table provides recommendations about the FDS worker settings that should be configured based on the number of FortiGate devices in your environment. You can see the expected CPU usage and time to update each FortiGate device based on the recommended settings.

Number of FortiGate

Recommended number of FDS workers

CPU Usage

Time to update all FortiGate devices

1 - 50 devices Use default setting
(1 FDS Worker)
20 - 50%

30 seconds

50 - 1000 devices Change max-worker to 10 50 - 90%

1 minute

1000 - 3000 devices Change max-worker to 24 50 - 90%

5 minutes

3000 + devices

Keep the max-worker set to 24.

While you can configure the FDS worker setting up to 32, there is no benefit to CPU load beyond 24 in this scenario.

-

-
