Run a cable test on FortiSwitch ports from FortiManager
You can trigger a FortiSwitch cable test from FortiManager.
The FortiSwitch cable test is only available on ADOM 6.4 and later.
To perform a FortiSwitch cable test:
- Go to FortiSwitch Manager > Device & Groups > Managed FortiGate.
- In the tree menu, select a FortiGate that contains the FortiSwitch and then select the unit in the FortiSwitch pane.

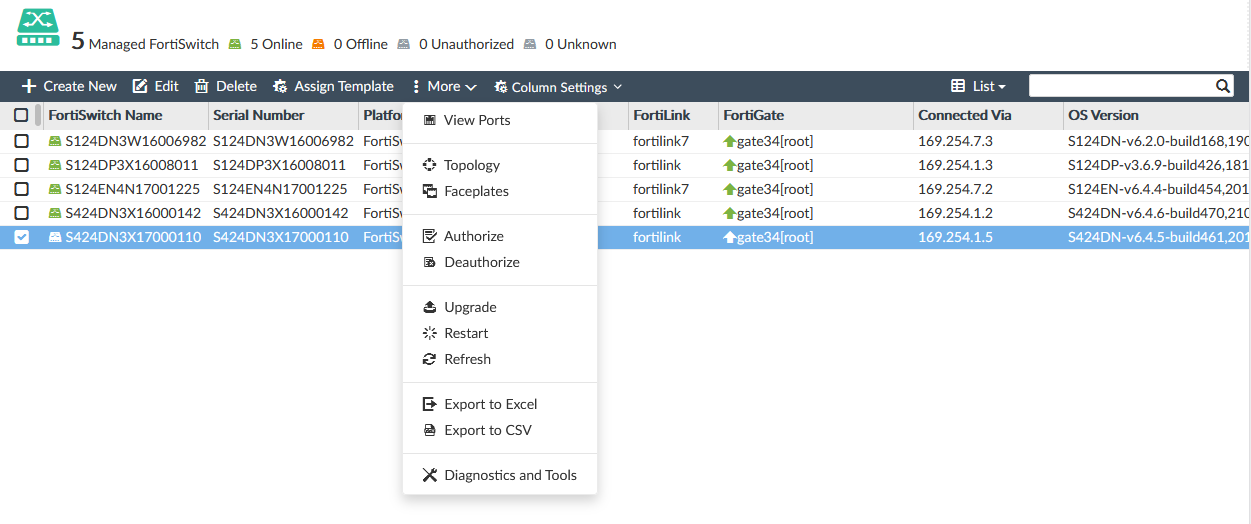

- In the toolbar, click More > Diagnositcs and Tools from the toolbar, or right-click the FortiSwitch and select Diagnositcs and Tools. The Diagnostics and Tools form opens.
- Click Cable Test.
- In the Cable Test pane, select the FortiSwitch ports you want to test, and click Diagnose.
Once the cable test is run, the results are displayed
