AWS SDN connector using certificates

AWS SDN connector using certificates

FortiOS automatically updates dynamic addresses for AWS using an AWS SDN connector, including mapping attributes from AWS instances to dynamic address groups in FortiOS.

Configuring the SDN connector using the GUI, then checking the configuration using the CLI is recommended.

Note

This topic describes one of multiple configuration methods available with this SDN connector type. See the More Links section on the right sidebar for other methods.

To configure an AWS SDN connector using the GUI:
  1. Configure the AWS SDN connector:

    1. Go to Security Fabric > External Connectors.

    2. Click Create New, and select Amazon Web Services (AWS).

    3. In the Access key ID field, enter the key created in the AWS management portal.

    4. In the Secret access key field, enter the secret access key accompanying the access key.

    5. In the Region name field, enter the region name. Refer to AWS Regions and Endpoints for the desired region name.

    6. In the VPC ID field, enter the VPC ID within the specified region you desire to cover with the SDN connector.

    7. Click OK.

  2. Check the configuration using the CLI:

    config system sdn-connector

    edit "<connector-name>"

    show

    The output resembles the following:

    config system sdn-connector

    edit "<connector-name>"

    set access-key "<example-access-key>"

    set secret-key ENC <example-secret-key>

    set region "us-west-2"

    set vpc-id "vpc-e1e4b587"

    set update-interval 1

    next

    end

    If you see that the SDN connector is not enabled in Security Fabric > External Connectors in the GUI, run the following commands to enable the SDN connector:

    diagnose deb application awsd -1

    diagnose debug enable

    The output may display an error like the following:

    FGT # awsd sdn connector AWS_SDN prepare to update

    awsd sdn connector AWS_SDN start updating

    aws curl response err, 403

    <?xml version="1.0" encoding="UTF-8"?>

    <Response><Errors><Error><Code>UnauthorizedOperation</Code><Message>You are not authorized to perform this operation.</Message></Error></Errors><RequestID>8403cc11-b185-41da-ad6d-23bb4db7d00a</RequestID></Response>

    awsd curl failed 403

    awsd sdn connector AWS_SDN failed to get instance list

    aws curl response err, 403

    {"Message":"User: arn:aws:iam::956224459807:user/jcarcavallo is not authorized to perform: eks:ListClusters on resource: arn:aws:eks:us-east-1:956224459807:cluster/*"}

    awsd sdn connector AWS_SDN get EKS cluster list failed

    awsd sdn connector AWS_SDN list EKS cluster failed

    awsd sdn connector AWS_SDN start updating IP addresses

    awsd sdn connector AWS_SDN finish updating IP addresses

    awsd reap child pid: 569

    In this case, you must configure power user access for the current administrator in the AWS management console:

    After configuring power user access, run the following commands:

    diagnose deb application awsd -1

    diagnose debug enable

    The output should display without error, as follows:

    FGT # AWSD: update sdn connector AWS_SDN status to enabled

    awsd sdn connector AWS_SDN prepare to update

    awsd sdn connector AWS_SDN start updating

    awsd get ec2 instance info successfully

    awsd sdn connector AWS_SDN start updating IP addresses

    awsd sdn connector AWS_SDN finish updating IP addresses

    awsd reap child pid: 893

    The AWS connector is now enabled.

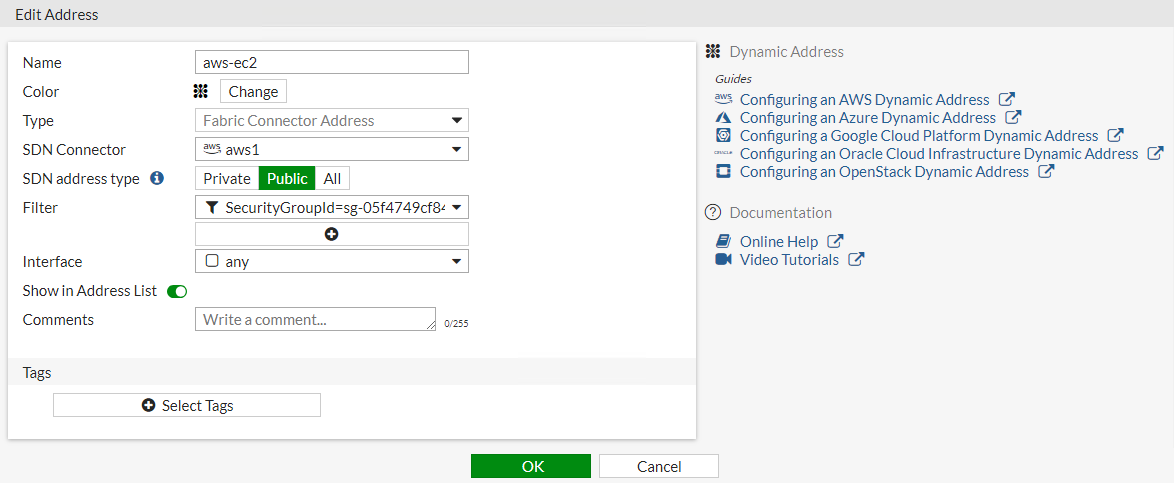

  3. Create a dynamic firewall address for the configured AWS SDN connector:

    1. Go to Policy & Objects > Addresses.

    2. Click Create New, then select Address.

    3. From the Type dropdown list, select Dynamic.

    4. From the Sub Type dropdown list, select Fabric Connector Address.

    5. In the Filter field, add the desired filters. The following filters are supported:

      Description

      Key

      Example value

      Architecture

      architecture

      x86

      Autoscaling group

      AutoScaleGroup

      10703c-4f731e90-fortigate-payg-auto-scaling-group

      AZ

      placement.availabilityzone

      us-east-1a

      Group name

      placement.groupname

      Image ID

      imageId

      ami-123456

      Instance ID

      instanceId

      i-12345678

      Instance type

      instanceType

      t2.micro

      Key name

      keyName

      Kubernetes cluster

      k8s_cluster

      Kubernetes label and its name

      k8s_label.Name

      Kubernetes namespace

      k8s_namespace

      Kubernetes node name

      k8s_nodename

      Kubernetes pod name

      k8s_podname

      Kubernetes region

      k8s_region

      Kubernetes service name

      k8s_servicename

      Kubernetes zone

      k8s_zone

      Private DNS name

      privateDnsName

      ip-172-31-10-211.us-west-2.compute.internal

      Public DNS name

      publicDnsName

      ec2-54-202-168-254.us-west-2.compute.amazonaws.com

      Security group ID

      SecurityGroupId

      Subnet ID

      subnetId

      sub-123456

      Tag and its name. This key supports a maximum of eight tags.

      tag.Name

      Tenancy placement

      placement.tenancy

      VPC ID

      VpcId

  4. Ensure that the AWS SDN connector resolves dynamic firewall IP addresses:

    1. Go to Policy & Objects > Addresses.

    2. Hover over the address created in step 2 to see a list of IP addresses for instances that belong to the security group configured in step 2.

      The following is an example for a public SDN address type:

      The following is an example for a private SDN address type:

To configure AWS SDN connector using CLI commands:
  1. Configure the AWS connector:

    config system sdn-connector

    edit "<connector-name>"

    set access-key "<example-access-key>"

    set secret-key ENC <example-secret-key>

    set region "us-west-2"

    set vpc-id "vpc-e1e4b587"

    set update-interval 1

    next

    end

  2. Create a dynamic firewall address for the configured AWS SDN connector with the supported filter:

    config firewall address

    edit "aws-ec2"

    set type dynamic

    set sdn "<connector-name>"

    set filter "SecurityGroupId=sg-05f4749cf84267548"

    set sdn-addr-type public

    next

    edit "aws-eks1"

    set type dynamic

    set sdn "<connector-name>"

    set filter "K8S_Region=us-west-2"

    next

    end

  3. Confirm that the AWS SDN connector resolves dynamic firewall IP addresses using the configured filter:

    config firewall address

    edit "aws-ec2"

    set type dynamic

    set sdn "<connector-name>"

    set filter "SecurityGroupId=sg-05f4749cf84267548"

    set sdn-addr-type public

    config list

    edit "34.222.246.198"

    next

    edit "54.188.139.177"

    next

    edit "54.218.229.229"

    next

    end

    next

    edit "aws-eks1"

    set type dynamic

    set sdn "<connector-name>"

    set filter "K8S_Region=us-west-2"

    config list

    edit "192.168.114.197"

    next

    edit "192.168.167.20"

    next

    edit "192.168.180.72"

    next

    edit "192.168.181.186"

    next

    edit "192.168.210.107"

    next

    end

    next

    end

To add an EC2 instance to test automatic address population:
  1. Assume that you want to boot up another instance with an IP address of 34.222.246.178, which is currently stopped. This instance belongs to the security group that the aws-ec2 address is filtering for. In the AWS management portal, start the instance.

  2. Verify that the instance is running.

  3. At this point, running show again shows the SDN connector has automatically populated and added the 34.222.246.178 instance.

    config firewall address

    edit "aws-ec2"

    set type dynamic

    set sdn "<connector-name>"

    set filter "SecurityGroupId=sg-05f4749cf84267548"

    set sdn-addr-type public

    config list

    edit "34.222.246.198"

    next

    edit "54.188.139.177"

    next

    edit "54.218.229.229"

    next

    edit "34.222.246.178"

    next

    end

    next

    end

    Therefore, administrators do not need to add this instance to the address manually. When a firewall policy is applied to this address, 34.222.246.178 is automatically covered.
