Centralized ingress: inspection after load balancer Example

Scenario objective

Inbound traffic is inspected by a FortiGate CNF instance after passing through the load balancer.

Before deployment of FortiGate CNF

In this scenario, there is a dedicated VPC called Inspection VPC that contains the load balancer. The workloads are in different VPCs (VPC A and VPC B), and traffic between VPCs is routed through a transit gateway.

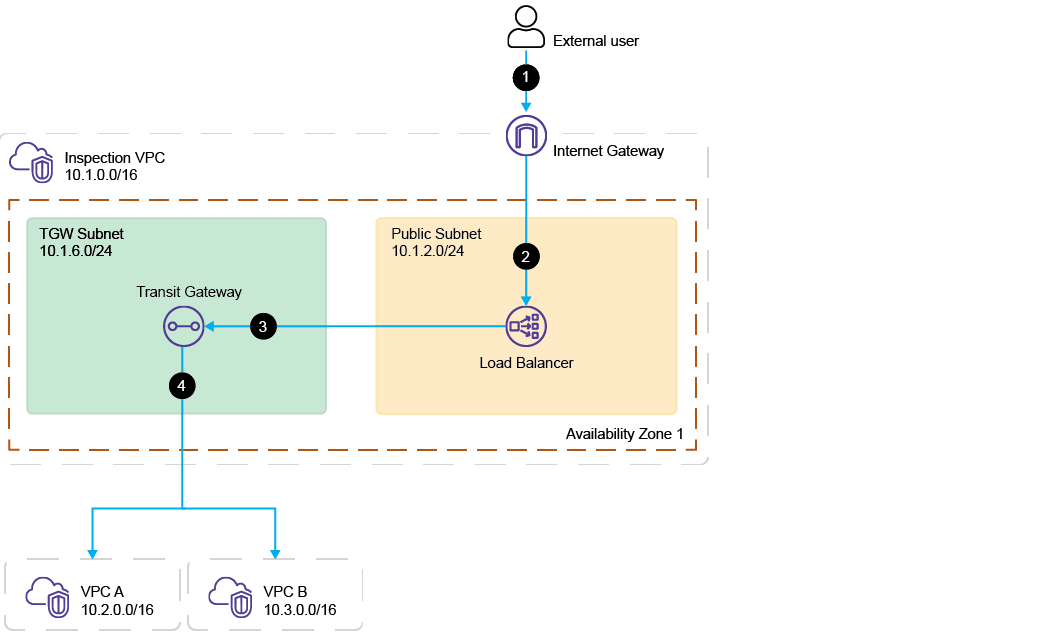

The Before deployment of FortiGate CNF traffic flow is as follows:

1. Traffic originates from an external user and enters through the Internet Gateway.

2. The Internet Gateway sends the traffic to the Load Balancer located in Public Subnet (10.1.2.0/24).

3. The Load Balancer send the traffic to the AWS Transit Gateway located in TGW Subnet (10.1.6.0/24).

4. The AWS Transit Gateway forwards the traffic to VPC A (10.2.0.0./16) or VPC B (10.3.0.0/16).

Routing tables

The routing tables are defined as follows.

Internet Gatway route table

Destination	Target
10.1.0.0/16	Local

Public Subnet route table

Destination	Target
10.1.0.0/16	Local
10.0.0.0/8	AWS Transit Gateway

TGW Subnet route table

Destination	Target
10.1.0.0/16	Local

AWS Transit Gateway route table

Destination	Target
10.1.0.0/16	Inspection VPC
10.2.0.0/16	VPC A
10.3.0.0/16	VPC B

After deployment of FortiGate CNF

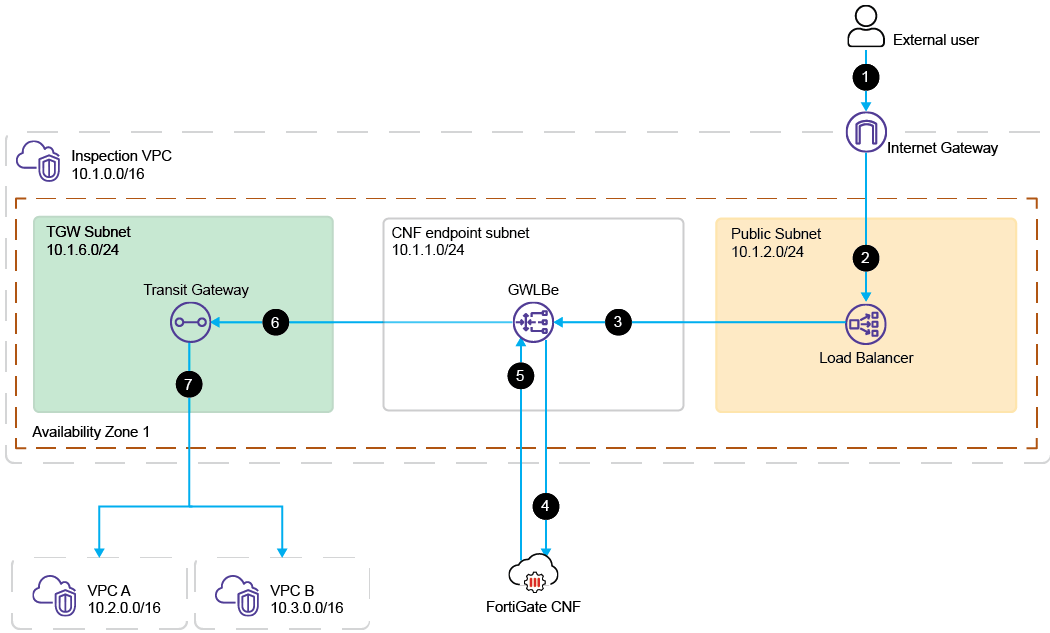

The After deployment of FortiGate CNF traffic flow is as follows:

1. Traffic originates from an external user and enters through the Internet Gateway.

2. The Internet Gateway sends the traffic to the Load Balancer located in Public Subnet (10.1.2.0/24).

3. The Load Balancer sends the traffic to the GWLBe located in CNF Endpoint Subnet (10.1.1.0/24).

5. GWLBe sends traffic to the FortiGate CNF instance for inspection.

5. FortiGate CNF sends traffic back to the GWLBe.

6. GWLBe sends traffic to the AWS Transit Gateway located in TGW Subnet (10.1.6.0/24).

7. The AWS Transit Gateway forwards the traffic to VPC A (10.2.0.0./16) or VPC B (10.3.0.0/16).

To deploy the FortiGate CNF instance in this scenario:

1. In AWS, add a subnet CNF Endpoint Subnet in Inspection VPC along with the associated route table.

   Destination	Target
   10.1.0.0/16	Local
   10.0.0.0/8	AWS Transit Gateway

2. In FortiGate CNF, deploy a GWLBe to this subnet.

3. In AWS, add a route to the Public Subnet route table where the load balancer resides to route all traffic to 10.0.0.0/8 to the GWLBe.

   Destination	Target
   10.1.0.0/16	Local
   0.0.0.0/8	Internet Gateway
   10.0.0.0/8	GWLBe

4. In AWS, add a route to the Transit Gateway Subnet route table to route all traffic to the Load Balancer located in Public Subnet to the GWLBe.

   Destination	Target
   10.1.0.0/16	Local
   10.1.2.0/24	GWLBe
