Distributed inter-subnet east-west traffic in one AZ Example

Scenario objective

Traffic between two subnets in the same availability zone (AZ) in one VPC is inspected by a FortiGate CNF instance.

Before deployment of FortiGate CNF

Traffic in this scenario is east-west within the same availability zone (AZ) in a region. All routes are local routes.

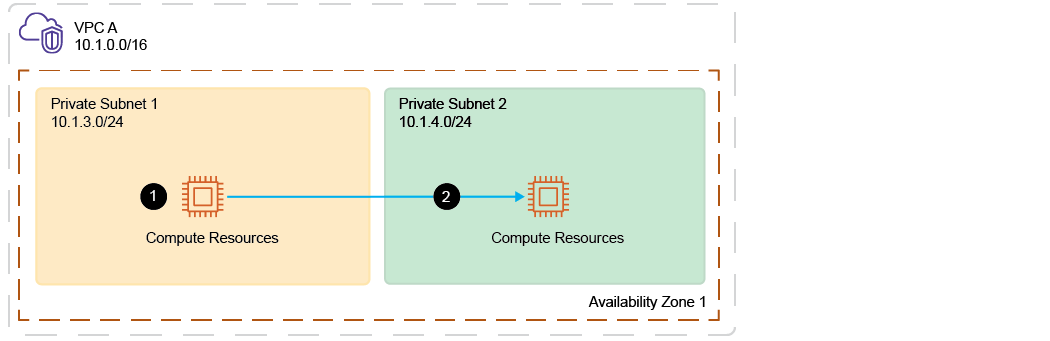

The Before deployment of FortiGate CNF traffic flow is as follows:

1. Traffic originates from compute resources located in Private Subnet 1 (10.1.3.0/24).

2. Traffic goes to compute resources located in Private Subnet 2 (10.1.4.0/24).

Routing tables

The routing tables are defined as follows.

Private Subnet 1 route table

Destination	Target
10.1.0.0/16	Local

Private Subnet 2 route table

Destination	Target
10.1.0.0/16	Local

After deployment of FortiGate CNF

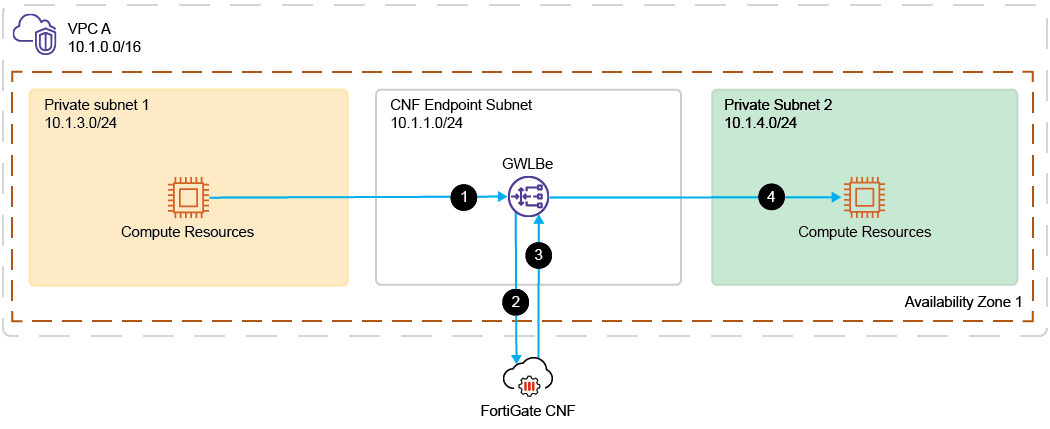

The After deployment of FortiGate CNF topology traffic flow is as follows:

1. Ttraffic goes from Private Subnet 1 (10.1.3.0/24) to the GWLBe located in CNF Endpoint Subnet (10.1.1.0/24).

2. Traffic is sent to the FortiGate CNF instance for inspection.

3. FortiGate CNF sends traffic back to the GWLBe.

4. The GWLBe forwards the traffic to Private Subnet 2 (10.1.4.0/24).

To deploy the FortiGate CNF instance in this scenario:

1. In AWS, add a subnet CNF Endpoint Subnet (10.1.1.0/24) and the associated route table.

   Destination	Target
   10.1.0.0/16	Local

2. In FortiGate CNF, deploy a GWLBe to this subnet.

3. In AWS, add a route to the Private Subnet 1 route table to route all traffic going to Private Subnet 2 to the GWLBe.

   Destination	Target
   10.1.0.0/16	Local
   10.1.4.0/24	GWLBe

4. In AWS, add a route to the Private Subnet 2 route table to route all traffic going to Private Subnet 1 to the GWLBe.

   Destination	Target
   10.1.0.0/16	Local
   10.1.3.0/24	GWLBe
