Using packet capture
When troubleshooting your network configuration, use the packet capture tool to see the headers of the packets passing in and out of the FortiGate CNF instance.
To use packet capture:
-
In the FortiGate CNF console, go to CNF Instances, select an instance, and click Edit.
-
Click Troubleshooting.
-
In Packet Capture, click Start Packet Capture.
Packet capture starts. Packet capture will run for five minutes or until you click Stop Packet Capture.

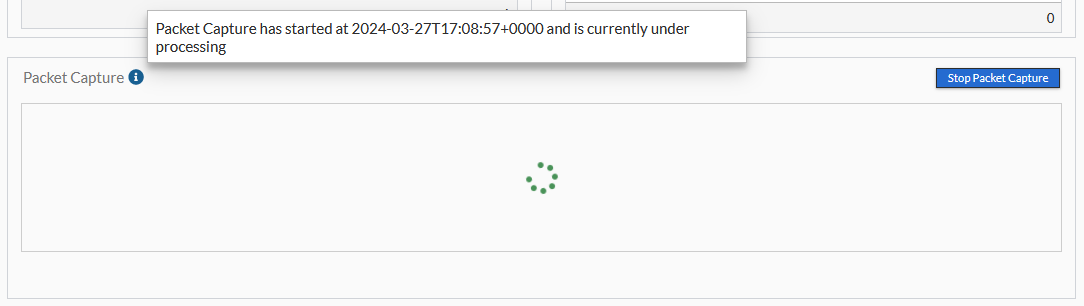

When packet capture is running, the displayed icon is an "i". The status message details the start time and indicates that the process is running.

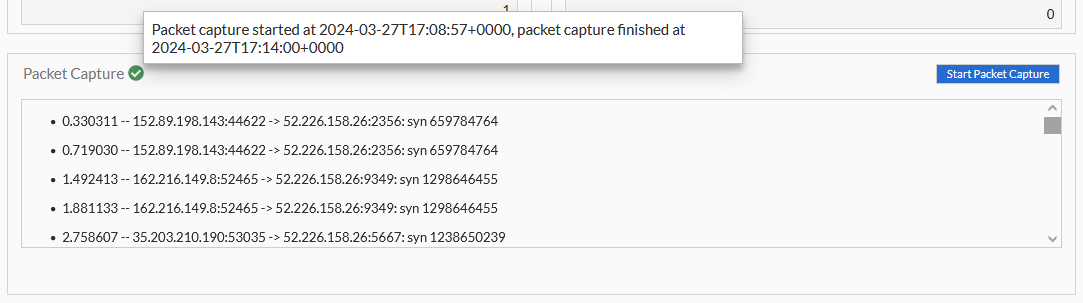

When packet capture is completed, the displayed icon is a checkmark. The status message details the start and end time.
