Firewall Integration

When a firewall connector is set and Playbook policies are configured, automatic incident response actions can include blocking of malicious IP addresses by a firewall upon security event triggering.

Before you start firewall configuration, make sure that:

• Your FortiEDR deployment includes a JumpBox that has connectivity to the firewall. Details about how to install a FortiEDR Core and configure it as a JumpBox are described in Installing the FortiEDR Core. You may refer to Cores for more information about configuring a JumpBox.
• The FortiEDR Central Manager has connectivity to the Fortinet Cloud Services (FCS).
• You have a valid API user with access to the external firewall.

Follow the steps below to automatically deny access on the firewall to malicious destination addresses detected by FortiEDR.

The example below describes how to define an address group on FortiGate and associate it with a FortiGate policy rule, such that it blocks connections to the addresses in the group. The address group is then used when configuring the FortiEDR connector so that it is automatically populated with malicious destinations upon detection by FortiEDR.

The same address group can obviously be used for multiple firewall policies in order to cover any VLAN-to-WAN interface in the network.

FortiGate Configuration

To set up an address group and policy on FortiGate:

1. Go to Policy & Objects > Addresses.
2. Create a new address group to be populated by FortiEDR. The new address group now appears in the FortiGate Addresses table.



3. Go to Policy & Objects > IPv4 Policy.
4. Create a new policy to deny traffic to any address in the address group that was created as part of step 2. The new policy now appears in the FortiGate Policies table.



FortiEDR Firewall Connector Configuration

To set up a Firewall connector with FortiEDR:

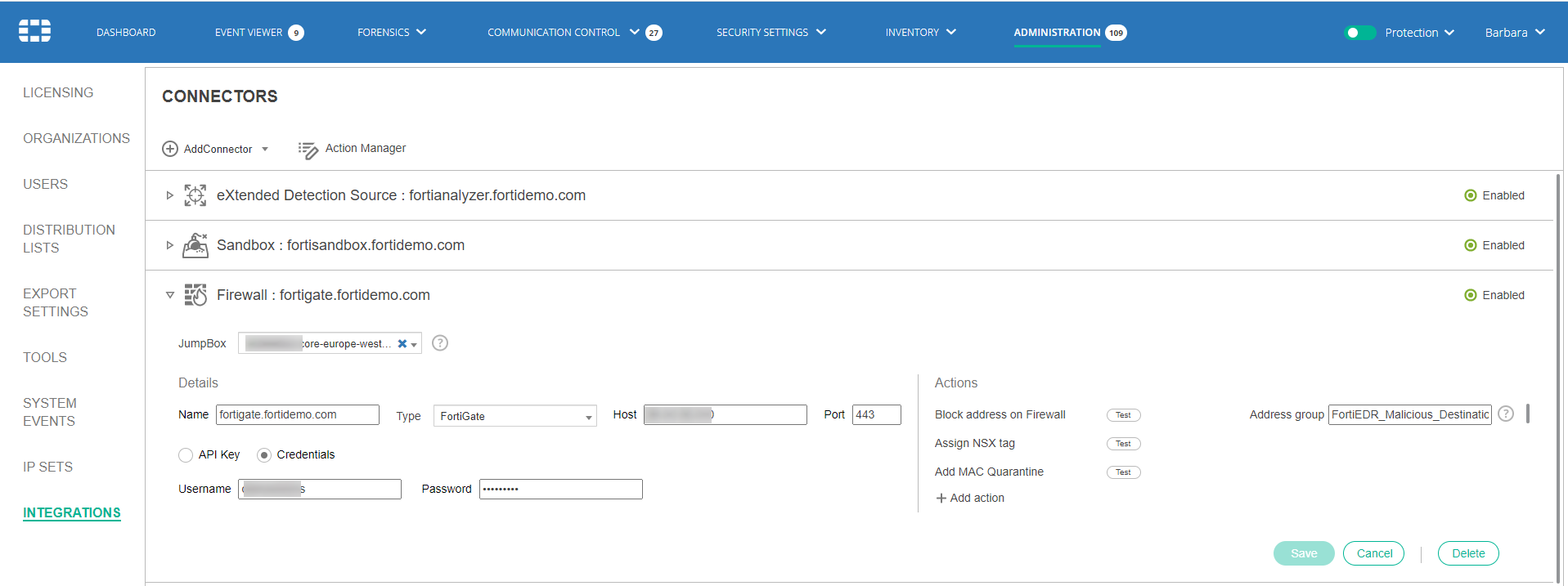

1. Click the button and select Firewall in the Connectors dropdown list. The following displays:



2. Fill in the following fields:

   Field	Definition
   JumpBox	Select the FortiEDR JumpBox to communicate with the firewall.
   Name	Specify a name of your choice to be used to identify this firewall.
   Type	Select the type of firewall to be used in the dropdown list.
   Host	Specify the IP or DNS address of your firewall.
   Port	Specify the port that is used for API communication with your firewall.
   API Key / Credentials	Specify authentication details of your firewall. To use an API token, click the API Key radio button and copy the token value into the text box. To use API credentials, click the Credentials radio button and enter the Firewall API username and password.

3. In the Actions area on the right, define an action to be taken by this connector.

   You have the option to either use an action provided out-of-the-box with FortiEDR (for example, Block address on Firewall) or to create and use your own custom actions.

   1. To block an address on the Firewall, next to the Block address on Firewall field, in the Address Group field, specify the name of a previously defined address group on the firewall.

      - OR -

   2. To trigger a custom action on the Firewall, click the + Add Action button to display the following popup window:



   • In the Action dropdown menu, select one of the previously defined custom integration actions.

     – OR –

   • Click the Create New Action button in this popup window to define a new action on the Firewall to be triggered according to the definitions in the Playbook, as described below. The following displays:



     Fill out the fields of this window as follows in order to define a new action to be triggered in response to an incident.

     _{Note – In order to trigger this action, a Playbook policy must be defined that triggers this action to execute the script when a security event is triggered. The definition of this new action here automatically adds this action as an option in a Playbook policy. This action however, is not selected by default in the Playbook policy. Therefore, you must go to the Playbook policy and select it in order for it to be triggered when a security event is triggered.}

     Field	Definition
     Name	Enter any name for this action
     Description	Enter a description of this action
     Upload	Upload a Python script that calls an API in the third-party system in order to perform the relevant action. Python 2.7 or later is supported. This Python script must be created according to the coding conventions that can be displayed by clicking the icon next to the Action Scripts field. The following displays providing an explanation of these coding conventions and provides various links that you can click to see more detail and or/to download sample files.

4. Click Save. The new action is then listed in the Actions area.
5. You can click the Test button next to an action to execute that action.

_{Note – If you are working with a FortiManager in order to manage firewalls, use the same instructions to integrate with the firewall, but select FortiManager as the integrated device Type when configuring the FortiEDR Connector in the Administration  Integration page, as follows:}

Playbooks Configuration

To configure an automated incident response that uses a firewall connector to block malicious destinations upon security event triggering:

1. Navigate to the SECURITY SETTINGS > Playbooks page.

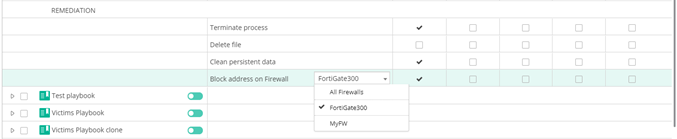

2. Open the Playbook policy that is applied on devices for which you want the block IP incident response to apply and place a checkmark in the relevant Classification column next to the Block address on Firewall row that is under the REMEDIATION section. In the dropdown menu next to the action, you can specify which firewalls to use to perform the block or select all of them, as shown below:

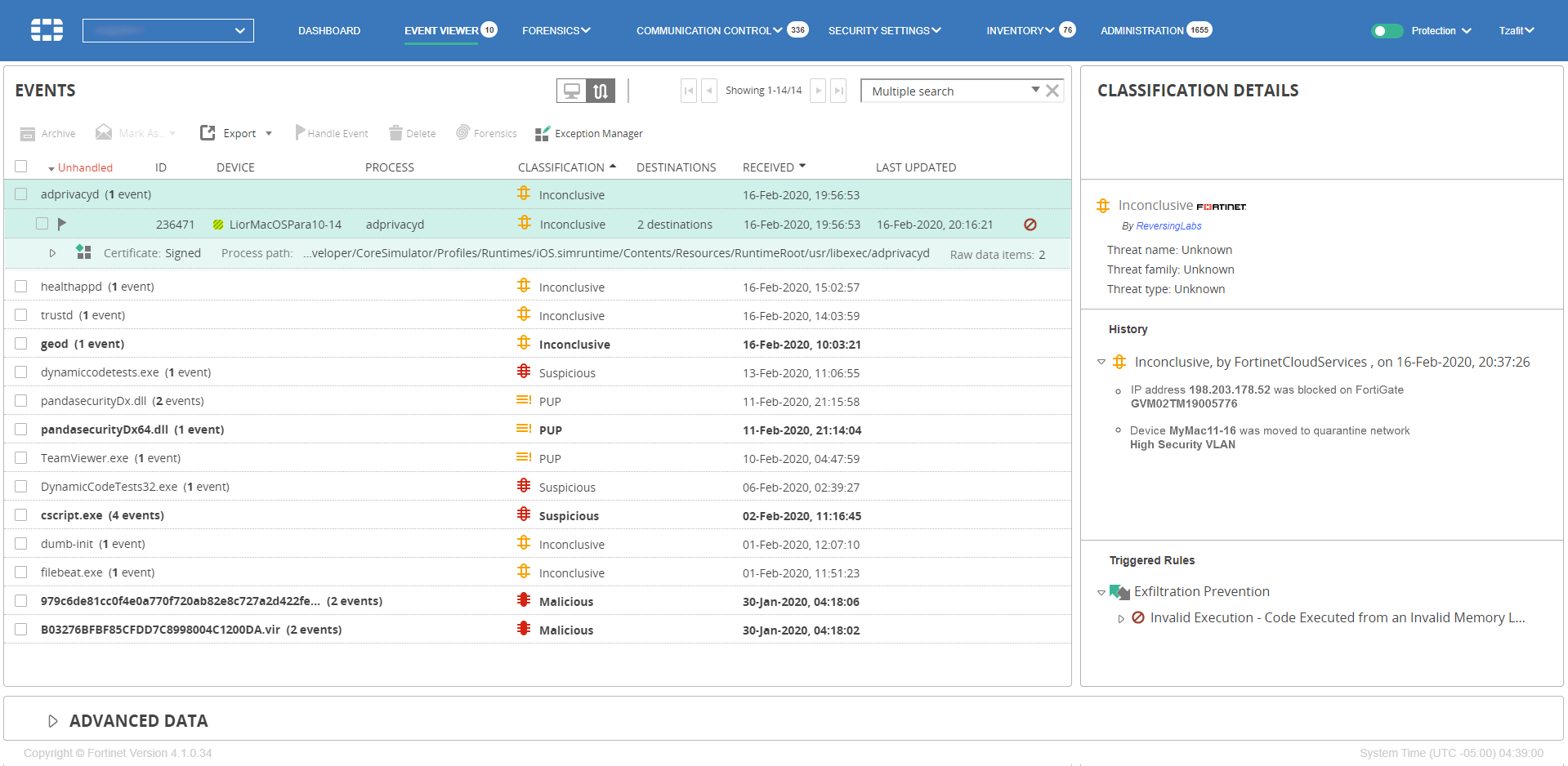

   FortiEDR is now configured to add malicious IP addresses to the blocking policy on the firewall upon triggering of a security event. You can check that malicious IP addresses are added to the address group that was configured on the firewall following FortiEDR security events. In addition, automatic incident response actions are listed in the CLASSIFICATION DETAILS area of the Events page of the FortiEDR Console, as shown below:



To configure an automated incident response that uses a firewall connector to perform a custom action upon the triggering of a security event:

1. Navigate to the SECURITY SETTINGS > Playbooks page.
2. Open the Playbook policy that is applied on devices for which you want the custom action (defined above) to apply.
3. In the CUSTOM section, place a checkmark in the relevant Classification columns next to the row of the relevant custom action.
4. In the dropdown menu next to the relevant custom action, select the relevant firewall connector with which to perform the action, as shown below:



   FortiEDR is now configured to trigger this action in the third-party system upon the triggering of a security event. This automatic incident response action appears in the CLASSIFICATION DETAILS area of the Events page of the FortiEDR Console.
