Make shadow copy

Requirements: Windows, macOS, or Linux.

The make shadow copy action lets you capture evidence when users violate data loss prevention policies.

The action, which requires file shadowing to be enabled, allows the FortiDLP Agent to create copies of the files associated with policy breaches (known as shadow copies) and send them to an external storage location. From there or from the FortiDLP Console's Action details panel and Detection details panel, you can download the shadow copies and reference them during threat investigations.

Action details panel

You can create policies that enable the FortiDLP Agent to make a shadow copy when a user:

• uploads or downloads a sensitive file
• copies a sensitive file to a USB storage device
• sends an email containing a sensitive file
• and more.

For details about our policy templates, see the FortiDLP Policies Reference Guide.

Decrypting shadow copies

This section provides an overview of shadow copies and the process for decrypting them. For detailed information about configuring file shadowing, see the FortiDLP Administration Guide.

Shadow copies are packaged as encrypted ZIP files that are downloadable from the storage bucket as well as from the FortiDLP Console via pre-signed URLs. Pre-signed URLs are dynamically generated and are only displayed to operators who are permitted to download shadow copies. Further, if shadow copies are stored on-premises, operators can only access them if they have the appropriate server permissions.

A pre-signed URL is valid for one hour. After one hour, you will need to obtain a new URL to view the shadow copy by revisiting the relevant Detection details/Action details panel.

For identification purposes, the filename given to an encrypted shadow copy contains the corresponding action UUID in the FortiDLP Console. However, the folder structure of the path the shadow copy is uploaded to will vary by the Agent version:

• For nodes running Agent 11.0.1+, the path will be:
  /<tenant_uuid>/<agent_uuid>/<action_uuid>/<action_uuid>.evidence.
• For nodes running Agents earlier than 11.0.1, the path will be:
  /<tenant_uuid>/evidence/<first two characters of action_uuid>/<rest of action_uuid>/<action_uuid>.evidence.

Upon decryption, a shadow copy identifies the original file path associated with the policy violation.

For example, if a violation occurred for a file located at C:\Users\Brian\Desktop\secret.txt, the decrypted shadow copy would be extracted as evidence\C:\Users\Brian\Desktop\secret.txt.

For macOS print job shadow copies, information about the file path from which the document was printed is generally unavailable. When this is the case, the shadow copy file path will be unrelated to the printed document's location, but if present, the print job name or document name will be included in the path.

When you delete a user from FortiDLP, you permanently remove all references to them. Ensure you make a note of a user's Agent UUID before deleting them for managing shadow copies.

Follow these instructions to decrypt shadow copies using the FortiDLP Decryption Tool Extension or FortiDLP Decryption CLI Tool.

How to decrypt shadow copies using the FortiDLP Decryption Tool Extension

You can only decrypt shadow copies that were generated after your encryption key was created.

1. Do one of the following:
   • To decrypt a shadow copy from the FortiDLP Console's Detection details panel:
     1. On the left-hand sidebar, click .
     2. In the search bar, enter the requested_actions = file_shadow search query.
     3. Click the Detection event stream.
     4. In the Events section, select the table row of the relevant detection.

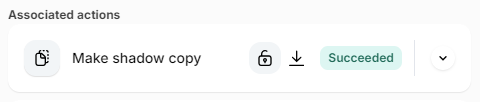

     5. In the Detection details panel's Associated actions widget, click .

        The FortiDLP Decryption Tool Extension opens.

     6. In the Passphrase field, type your passphrase and then click Unlock.

     7. Click Download to download the decrypted file to your device.
   • To decrypt a shadow copy from the FortiDLP Console's Action details panel:
     1. On the left-hand sidebar, click .
     2. In the search bar, enter the action = file_shadow search query.
     3. Click the Action (New)/Action (Legacy) event stream.
     4. In the Events section, select the table row of the relevant action event.
     5. In the Action details panel's Key information & content widget, click Decrypt.

        The FortiDLP Decryption Tool Extension opens.
     6. In the Passphrase field, type your passphrase and then click Unlock.

     7. Click Download to download the decrypted file to your device.
   • To download a shadow copy from the FortiDLP Console or your storage bucket and then decrypt it:
     1. Do one of the following:

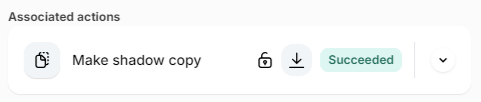

        • In the FortiDLP Console, follow the steps above to open the relevant Detection details panel , and in the Associated actions widget, click .

        • In the FortiDLP Console, follow the steps above to open the relevant Action details panel, and in the Key information & content widget, click Download.

        • Download the shadow copy from your storage bucket.
     2. On your browser's menu bar, click the icon and launch the FortiDLP Decryption Tool Extension..
     3. In the Passphrase field, type your passphrase and then click Unlock.
     4. Drag and drop one or more shadow copies or click Select files to decrypt and select them from your device.

     5. Click Download to download the decrypted file(s) to your device.

How to decrypt shadow copies using the FortiDLP Decryption CLI Tool

You can only decrypt shadow copies that were generated after your encryption key was created.

1. Do one of the following:
   • Download the shadow copy from the FortiDLP Console's Detection details panel:
     1. On the left-hand sidebar, click .
     2. In the search bar, enter the requested_actions = file_shadow search query.
     3. Click the Detection event stream.
     4. In the Events section, select the table row of the relevant detection.
     5. In the Detection details panel's Associated actions widget, click .


   • Download the shadow copy from the FortiDLP Console's Action details panel:
     1. On the left-hand sidebar, click .
     2. In the search bar, enter the action = file_shadow search query.
     3. Click the Action (New)/Action (Legacy) event stream.
     4. In the Events section, select the table row of the relevant action event.
     5. In the Action details panel's Key information & content widget, click Download.


   • Download the shadow copy from your storage bucket.
2. Open a command-line interface.
3. Go to the directory containing the FortiDLP Decryption CLI Tool binary.
4. Run one of the following commands, where <path> is the path to the encrypted shadow copy file:
   • On Windows, run the command reveal-decryption-tool.exe decrypt <path>.
   • On macOS or Linux, run the command ./reveal-decryption-tool decrypt <path>.

   If your private key file is not in the default directory (see Setting encryption keys), you must use the -k flag to specify the path to the key file. For example: reveal-decryption-tool.exe decrypt <shadow copy path> -k <private key path>.

5. Type your passphrase and then press Enter.

The decrypted shadow copy will be saved in the same directory as the encrypted version.

If preferred, you can save the decrypted file to a different location by specifying a destination path. For example: reveal-decryption-tool.exe decrypt <encrypted shadow copy path> <decrypted shadow copy path>.
