Graph examples

Lateral movement example

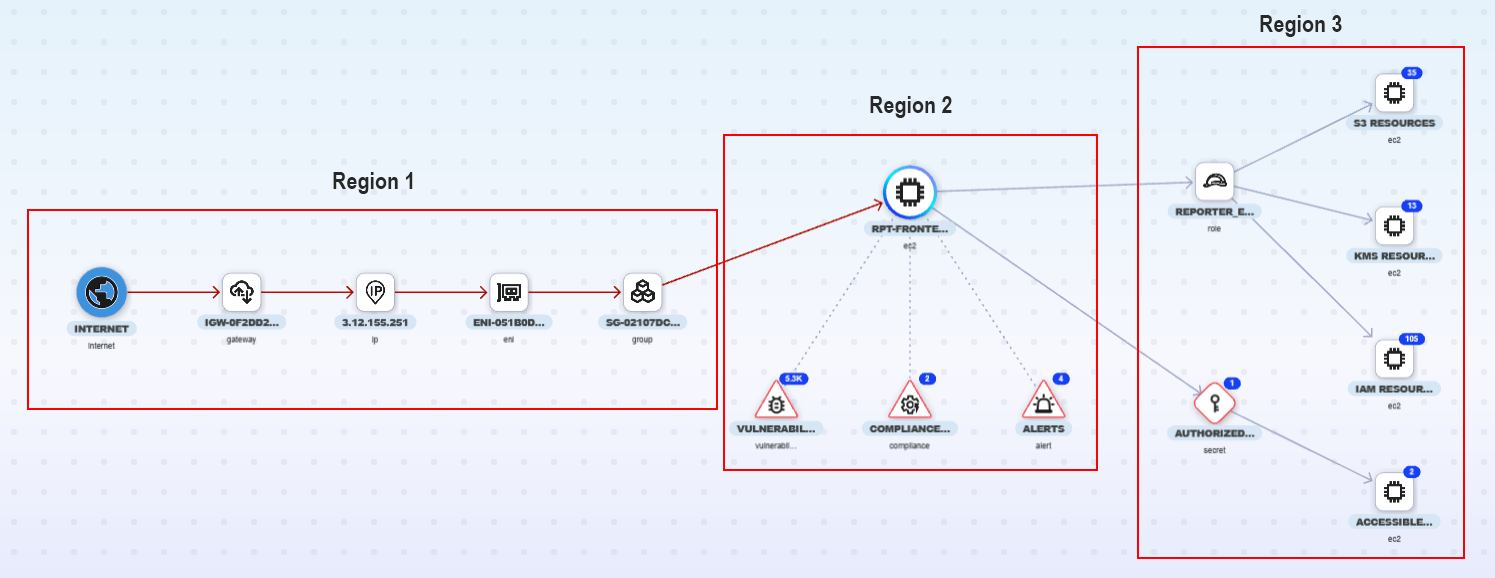

The following example illustrates a graph for an EC2 instance with the potential risk of lateral movement.

In this example, FortiCNAPP detects potential lateral movement when an SSH secret (on the original internet-exposed instance) can be used by an attacker to access additional instances.

Region 1

This region shows the IP address of the host with internet exposure.

Region 2

This region shows the following:

• EC2 instance that can be accessed from the internet.
• Number of vulnerabilities detected on the instance.
• Number of compliance issues detected on the instance.
• Number of alerts on the instance.

Region 3

This region shows the following:

• An SSH secret on the original instance.
• Other instances that can be accessed using the SSH secret on the internet-exposed instance.

The information in this region highlights the potential lateral movement risk and the SSH key that could be used.

Blast radius example

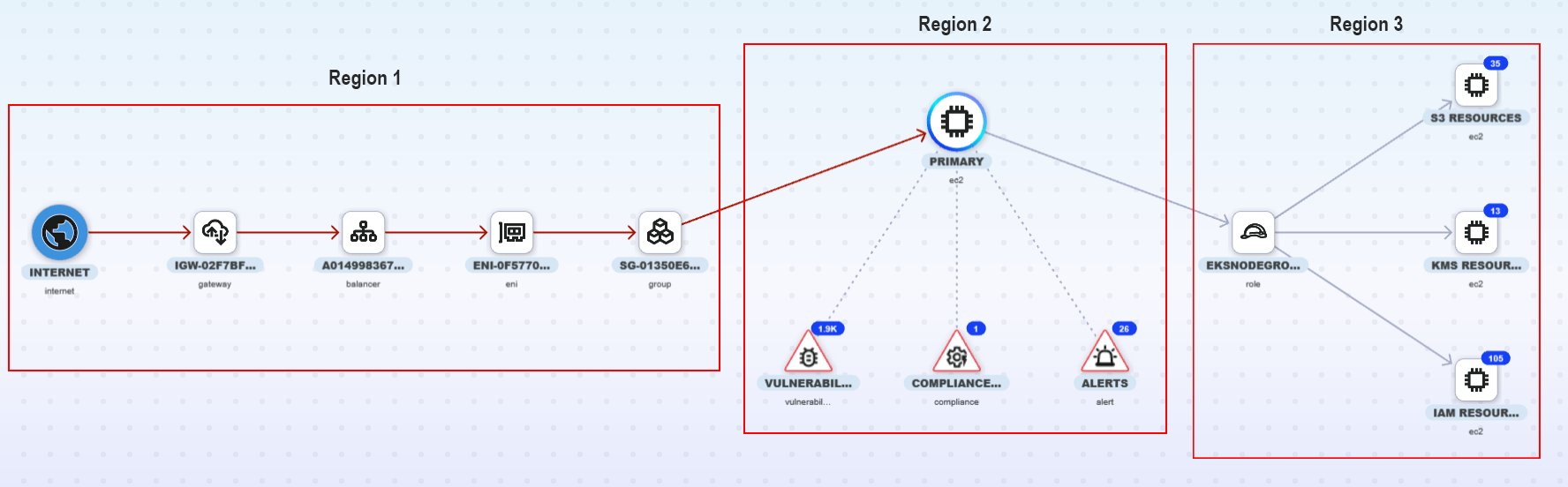

The following example illustrates a graph for an EC2 instance with a potential compromise blast radius that includes high value storage assets.

In this example, FortiCNAPP detects that an exposed EC2 instance can assume a role that can potentially be used to access Amazon S3, additional IAM roles, and AWS KMS.

Region 1

This region shows the load balancer and the IP address of the host with internet exposure.

Region 2

This region shows the following:

• EC2 instance that can be accessed from the internet.
• Number of vulnerabilities detected on the instance.
• Number of compliance issues detected on the instance.
• Number of alerts on the instance.

Region 3

This region shows the following:

• The IAM role that the EC2 instance assumes to access the storage assets.
• Amazon S3 buckets that can be accessed using the IAM role.
• KMS secrets that can be accessed using the original IAM role.
• Additional IAM roles that can be accessed using the original IAM role.

The information in this region provides visibility into the blast radius of potential compromise and summarizes all of the high value assets that could be at risk.
