Deploying the OVF file

To deploy the OVF file template:

Launch the VMware vSphere client, enter the IP address or host name of your server, enter your user name and password, then click Login. The vSphere client home page opens.
Select File > Deploy OVF Template to launch the OVF Template wizard. The OVF Template Source page opens.
Click Browse, locate the OVF file on your computer, then click Next to continue. The OVF Template Details page opens.

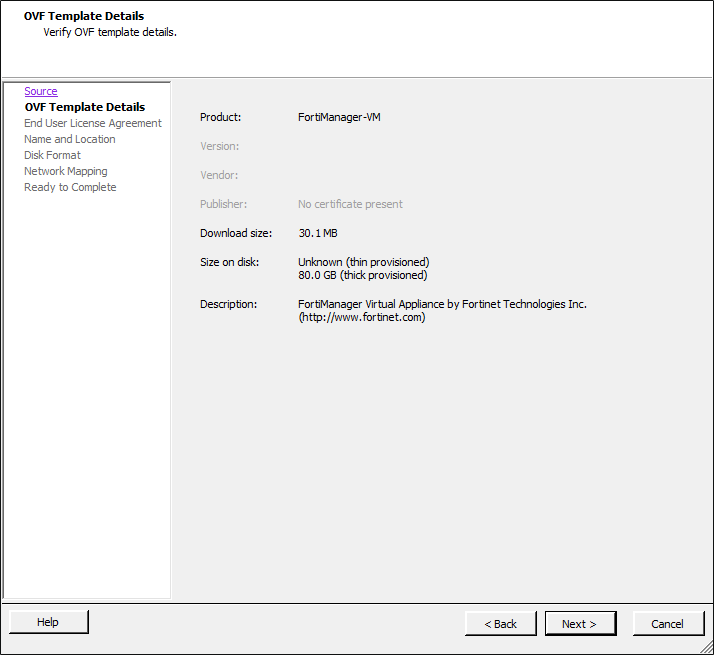

Verify the OVF template details. This page details the product name, download size, size on disk, and description. Click Next to continue. The OVF Template End User License Agreement page opens.
Read the end user license agreement, then click Accept then Next to continue. The OVF Template Name and Location page opens.
Enter a name for this OVF template. The name can contain up to 80 characters and must be unique within the inventory folder. Click Next to continue. The OVF Template Disk Format page opens.

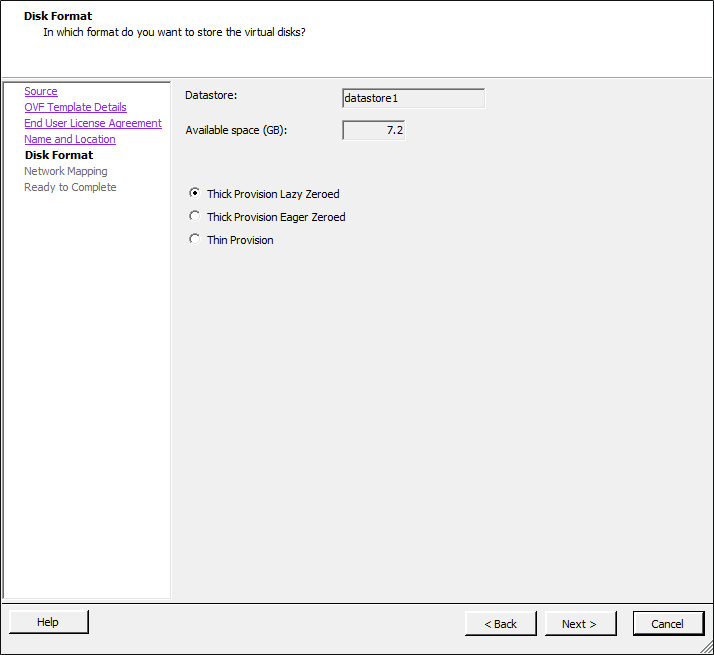

Select one of the following:

Thick Provision Lazy Zeroed: Allocates the disk space statically (no other volumes can take the space), but does not write zeros to the blocks until the first write takes place to that block during runtime (which includes a full disk format).
Thick Provision Eager Zeroed: Allocates the disk space statically (no other volumes can take the space), and writes zeros to all the blocks.
Thin Provision: Allocates the disk space only when a write occurs to a block, but the total volume size is reported by the Virtual Machine File System (VMFS) to the OS. Other volumes can take the remaining space. This allows you to float space between your servers, and expand your storage when your size monitoring indicates there is a problem. Note that once a Thin Provisioned block is allocated, it remains in the volume regardless of whether you have deleted data.

If you know your environment will expand in the future, it is recommended to add hard disks larger than the Micro-FortiGuard Server for FortiClient base license requirement and utilize Thin Provision when setting the OVF Template disk format. This will allow your environment to expand as required while not taking up more space in the SAN than is needed.

Click Next to continue. The OVF Template Network Mapping page opens.
Map the networks used in this OVF template to networks in your inventory. Network 1 maps to port1 of the Micro-FortiGuard Server for FortiClient. You must set the destination network for this entry to access the device console. Click Next to continue. The OVF Template Ready to Complete page opens.
Review the template configuration.
Ensure that Power on after deployment is not enabled. You might need to configure the Micro-FortiGuard Server for FortiClient hardware settings prior to powering on the VM.
Click Finish to deploy the OVF template. A Deployment Completed Successfully dialog box is displayed once the Micro-FortiGuard Server for FortiClient OVF template wizard has finished.

To deploy the OVF file template:

Launch the VMware vSphere client, enter the IP address or host name of your server, enter your user name and password, then click Login. The vSphere client home page opens.
Select File > Deploy OVF Template to launch the OVF Template wizard. The OVF Template Source page opens.
Click Browse, locate the OVF file on your computer, then click Next to continue. The OVF Template Details page opens.
Verify the OVF template details. This page details the product name, download size, size on disk, and description. Click Next to continue. The OVF Template End User License Agreement page opens.
Read the end user license agreement, then click Accept then Next to continue. The OVF Template Name and Location page opens.
Enter a name for this OVF template. The name can contain up to 80 characters and must be unique within the inventory folder. Click Next to continue. The OVF Template Disk Format page opens.

Select one of the following:

Thick Provision Lazy Zeroed: Allocates the disk space statically (no other volumes can take the space), but does not write zeros to the blocks until the first write takes place to that block during runtime (which includes a full disk format).
Thick Provision Eager Zeroed: Allocates the disk space statically (no other volumes can take the space), and writes zeros to all the blocks.
Thin Provision: Allocates the disk space only when a write occurs to a block, but the total volume size is reported by the Virtual Machine File System (VMFS) to the OS. Other volumes can take the remaining space. This allows you to float space between your servers, and expand your storage when your size monitoring indicates there is a problem. Note that once a Thin Provisioned block is allocated, it remains in the volume regardless of whether you have deleted data.

Click Next to continue. The OVF Template Network Mapping page opens.
Map the networks used in this OVF template to networks in your inventory. Network 1 maps to port1 of the Micro-FortiGuard Server for FortiClient. You must set the destination network for this entry to access the device console. Click Next to continue. The OVF Template Ready to Complete page opens.
Review the template configuration.
Ensure that Power on after deployment is not enabled. You might need to configure the Micro-FortiGuard Server for FortiClient hardware settings prior to powering on the VM.
Click Finish to deploy the OVF template. A Deployment Completed Successfully dialog box is displayed once the Micro-FortiGuard Server for FortiClient OVF template wizard has finished.
