User sources

User sources

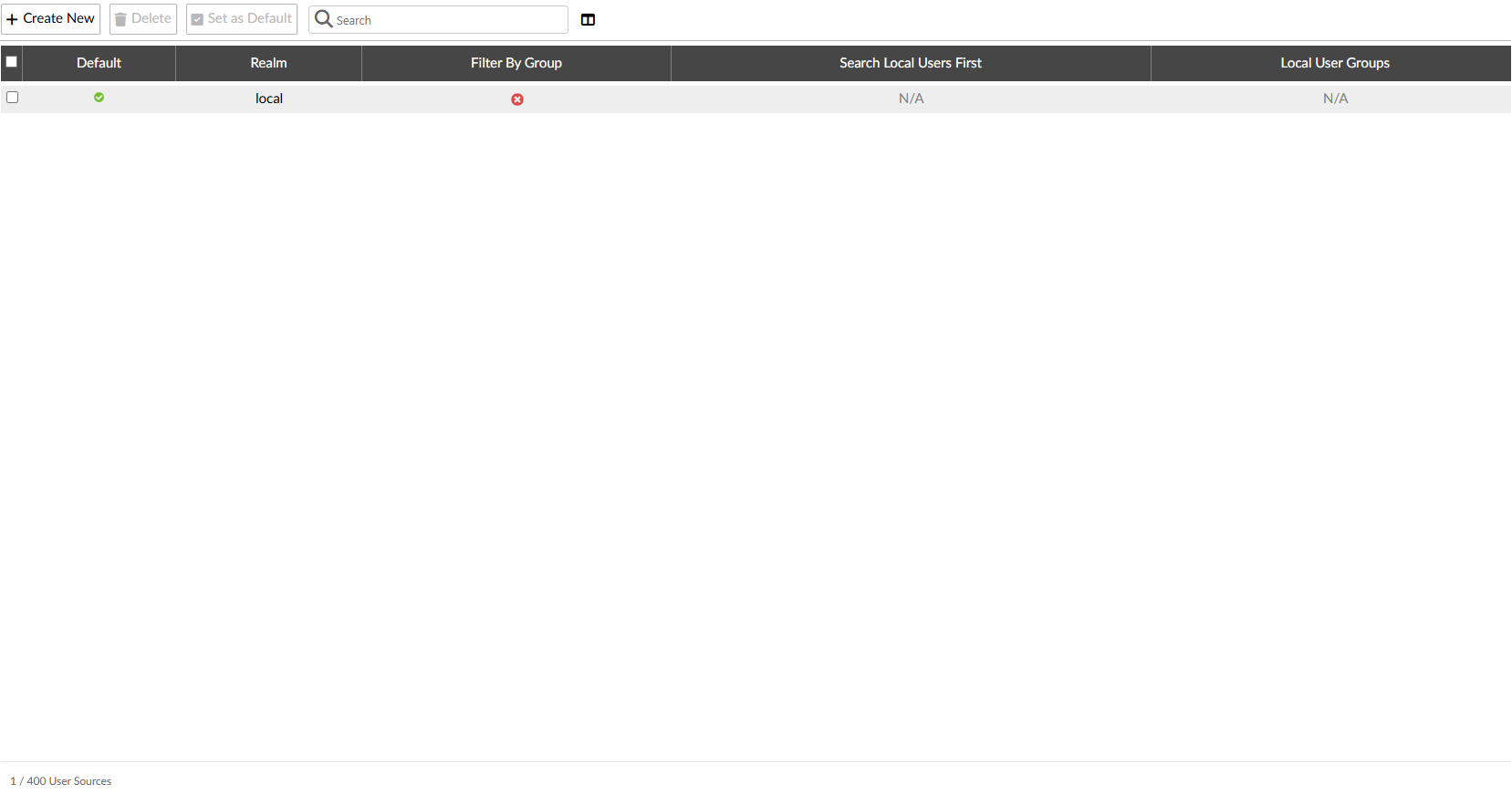

Go to Authentication > SAML IdP > User Sources to see the list of user sources for the SAML service.

The maximum number of allowed realms is equal to the maximum number of realms in the legacy self-service portal plus the realms in SAML IdP.

A maximum of 400 realms can be added.

The following options are available:

Create New

Select to create a new realm.

See Creating a user source.

Delete

Select to delete the selected realms.

Set as Default

Select to set the selected realm as the default user source.

Search

Enter a search term in the search field, then select Search to search the user sources list.

Reset table column widths

Select the reset icon to reset the table column widths to default.

Creating a user source

To create a user source:
  1. Go to Authentication > SAML IdP > User Sources.
  2. Select Create New.

    The Create New Other Client Realm Mapping window opens.

  3. Enter the following information:

    Realm

    From the dropdown, select a realm source.

    Filter realm users by group

    Enable to filter realm users by user groups.

    To select user groups, from the Available User Groups table, move the user groups to the Chosen User Groups list.

  4. Click Save.
