Additional charts for SD-WAN reporting 7.0.1

The Secure SD-WAN Report now includes charts for SD-WAN Link Health Status and the Inbound/Outbound status per SD-WAN device interfaces.

To view additional charts in the SD-WAN Report:
  1. Go to Reports > Templates.
  2. In the templates pane, right-click Secure SD-WAN Report, and click Create Report.

  3. In the tree menu, click Report Definitions > All Reports.
  4. In the reports pane, expand FortiGate Reports and click Secure SD-WAN Report.

  5. Click the Layout tab and scroll down to the SD-WAN Link Health Status chart, then click the Chart Properties. The SD-WAN Device-Interface List by Activity chart was added to the Event category.

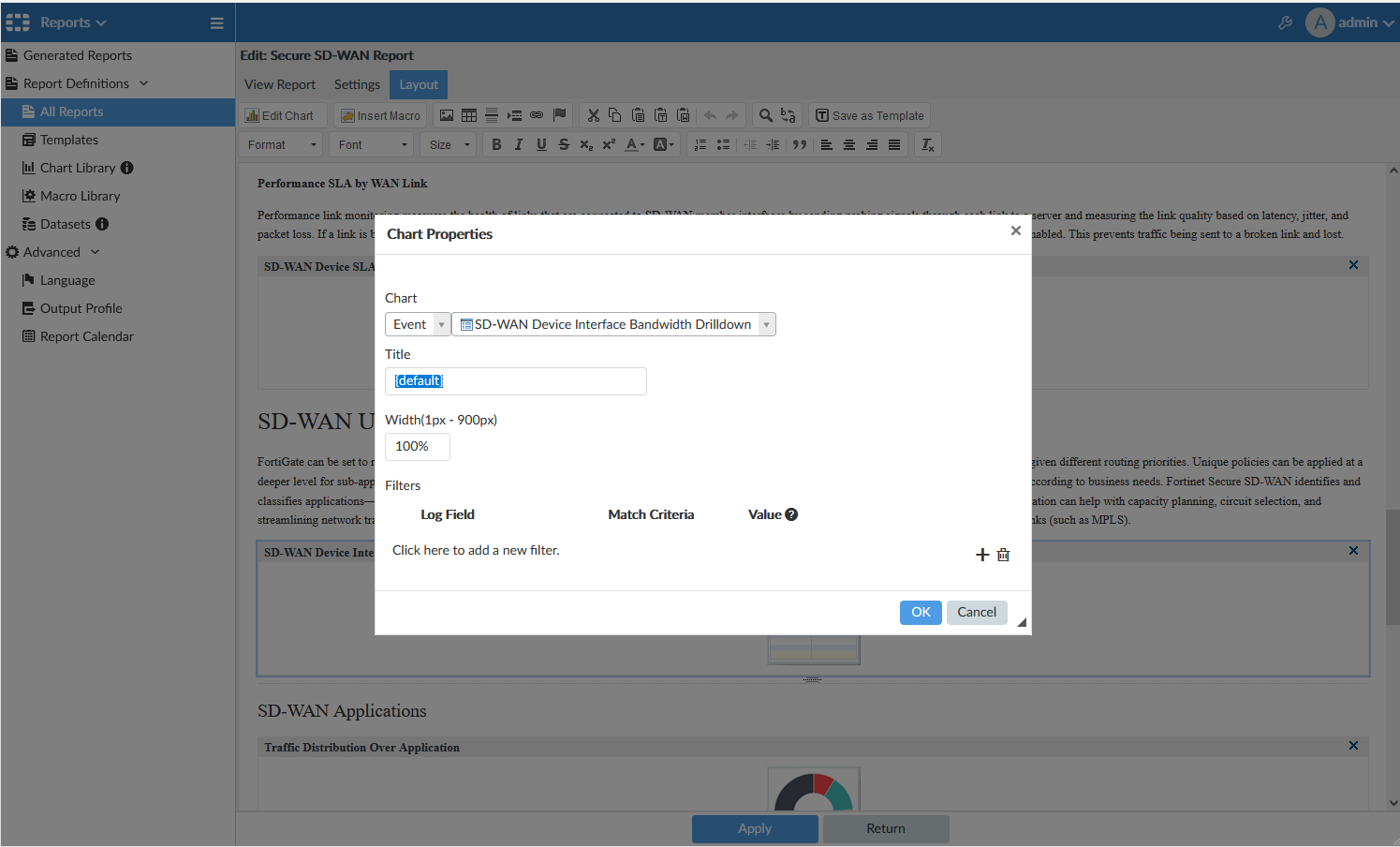

  6. Scroll down to the SD-WAN Utilization section and click the Chart Properties. The SD-WAN Device Interface Bandwidth Drilldown chart was added to the Event category.

  7. Click the View Report tab. In the Format column, click PDF.

    The Table of Contents displays the SD-WAN Link Health Status report.

    The SD-WAN Device-Interface List by Availability drilldown charts are displayed.

    The SD-Wan Device Interface Bandwidth Drilldown charts are also displayed.
